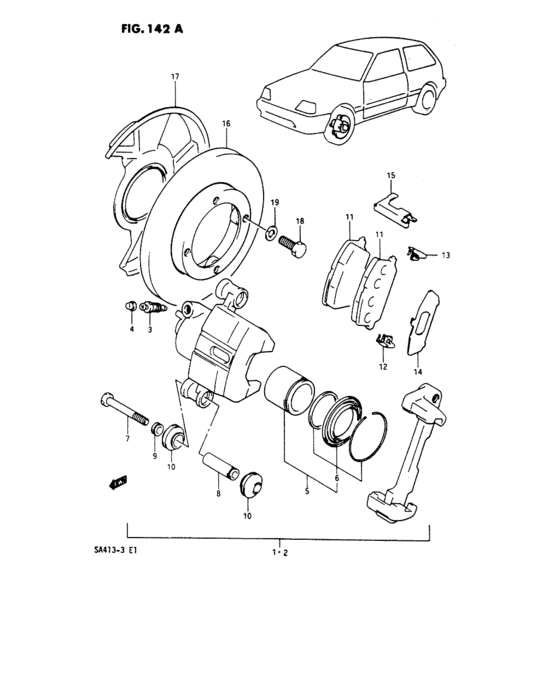

Front brake (GL, GLX:Sweden, Germany, Denmark) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- GL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55101-86040-000
Caliper assy, front brake rh
|
55101-86040-000 |
— | ||
|
2
|
2
55102-86040-000
Caliper assy, front brake lh
|
55102-86040-000 |
— | ||
|
3
|
3
52473-60020-000
プラグ,ブリーダ
|
52473-60020-000 |
— | ||
| replacement | |||||
|
3
|
3
55151-78451-000 PLUG,BLEEDER |
55151-78451-000 |
from US $3.94 |
||
|
4
|
4
52474-60020-000
Bleeder cap
|
52474-60020-000 |
— | ||
| replacements | |||||
|
4
|
4
55156-66310-000 CAP,BLEEDER PLUGCap, bleeder plug |
55156-66310-000 |
from US $1.98 |
||
|
4
|
4
59122-18410-000
Cap, bleeder plug
|
59122-18410-000 |
— | ||
|
5
|
5
55100-86810-000
Piston & seal set
|
55100-86810-000 |
— | ||
|
6
|
6
55100-86820-000
Seal set, cariper
|
55100-86820-000 |
— | ||
| replacements | |||||
|
6
|
6
55830-60B12-000
SEAL SET,PISTON
|
55830-60B12-000 |
— | ||
|
6
|
6
55830-60B13-000 Seal Set,piston |
55830-60B13-000 |
US $9.05 |
||
|
7
|
7
55164-86040-000 BOLT,BRAKE CALIPER |
55164-86040-000 |
US $3.90 |
||
|
8
|
8
55203-86040-000
Bushing, cylinder slide
|
55203-86040-000 |
— | ||
| replacement | |||||
|
8
|
8
55191-61G50-000 BUSH,CYLINDER SLIDE |
55191-61G50-000 |
US $11.56 |
||
|
9
|
9
55202-86040-000
Bushing, retainer
|
55202-86040-000 |
— | ||
| replacement | |||||
|
9
|
9
55196-80002-000 SUPPORT,DUST BOOT |
55196-80002-000 |
US $2.40 |
||
|
10
|
10
55201-86040-000 BOOT,BUSH DUST |
55201-86040-000 |
from US $2.40 |
||
|
11
|
11
55210-86040-000
Pad, disc brake
|
55210-86040-000 |
— | ||
|
12
|
12
55223-86040-000
Plate,pad support,no\1
|
55223-86040-000 |
— | ||
|
13
|
13
55224-86040-000
Plate,pad support,no\2
|
55224-86040-000 |
— | ||
|
14
|
14
55226-86040-000
Shim, anti noise
|
55226-86040-000 |
— | ||
| replacement | |||||
|
14
|
14
55200-86841-000
PAD SET DISC BRAKE
|
55200-86841-000 |
— | ||
|
15
|
15
55232-86040-000
Plate, pad wear
|
55232-86040-000 |
— | ||
|
16
|
16
55511-86040-000
Disc, front brake
|
55511-86040-000 |
— | ||
|
17
|
17
55521-82600-000
COVER,BRAKE DISC DUST
|
55521-82600-000 |
— | ||
|
18
|
18
09100-10252-000
ボルト
|
09100-10252-000 |
— | ||
| replacement | |||||
|
18
|
18
09100-10237-000 BOLT(10X23) |
09100-10237-000 |
US $1.44 |
||
|
19
|
19
08321-31103-000
ロックワッシャ
|
08321-31103-000 |
— | ||
| replacements | |||||
|
19
|
19
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
19
|
19
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
