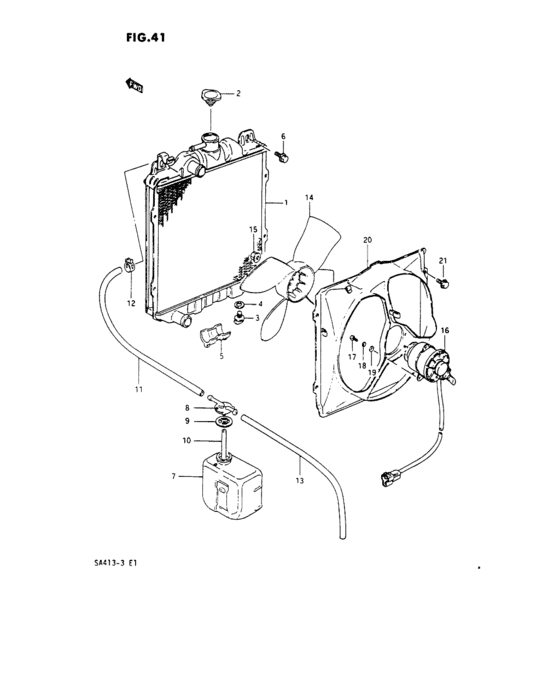

Radiator and cooling fan (TWIN CAM) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- GL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17700-82622-000
Radiator assy
<-17700-82621 |
17700-82622-000 |
— | ||
|
2
|
2
17920-82020-000
キャップ
|
17920-82020-000 |
— | ||
| replacement | |||||
|
2
|
2
17920-60B21-000 CAP,RADIATOR 0.9 |
17920-60B21-000 |
US $15.36 |
||
|
3
|
3
17751-82000-000 PLUG,RADIATOR DRAIN |
17751-82000-000 |
US $4.75 |
||
|
4
|
4
17759-63210-000
GASKET
|
17759-63210-000 |
— | ||
| replacement | |||||
|
4
|
4
17759-63211-000 Gasket |
17759-63211-000 |
US $1.18 |
||
|
5
|
5
17812-78120-000
Rubber,radiator support
|
17812-78120-000 |
— | ||
|
6
|
6
01517-06103-000
ボルト
|
01517-06103-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
6
|
6
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
7
|
7
17931-82020-000
Tank, water reservoir
|
17931-82020-000 |
— | ||
| replacement | |||||
|
7
|
7
17931-60B00-000 TANK,WATER RESERVE |
17931-60B00-000 |
US $58.40 |
||
|
8
|
8
17932-82001-000 CAP,WATER RESERVOIR TANKCap, water reservoir tank |
17932-82001-000 |
US $9.12 |
||
|
9
|
9
17933-82002-000 RUBBER,WTR RSV TANK CAP |
17933-82002-000 |
US $2.13 |
||
|
10
|
10
09352-70121-13A
ホース,7X12X1130
|
09352-70121-13A |
— | ||
| replacement | |||||
|
10
|
10
09352-70121-00B HOSE(7X12.1X2000)Hose, silencer |
09352-70121-00B |
from US $21.60 |
||
|
11
|
11
09352-70121-13A
ホース,7X12X1130
L:1130->400 |
09352-70121-13A |
— | ||
| replacement | |||||
|
11
|
11
09352-70121-00B HOSE(7X12.1X2000)Hose, silencer L:1130->400 |
09352-70121-00B |
from US $21.60 |
||
|
12
|
12
09401-11407-000
CLIP
|
09401-11407-000 |
— | ||
| replacement | |||||
|
12
|
12
09401-11415-000 CLIP |
09401-11415-000 |
from US $1.06 |
||
|
13
|
13
09352-70121-13A
ホース,7X12X1130
|
09352-70121-13A |
— | ||
| replacement | |||||
|
13
|
13
09352-70121-00B HOSE(7X12.1X2000)Hose, silencer |
09352-70121-00B |
from US $21.60 |
||
|
14
|
14
17111-82320-000 FAN,ENG COOLING |
17111-82320-000 |
US $36.62 |
||
|
15
|
15
08316-26053-000
ナット
|
08316-26053-000 |
— | ||
| replacement | |||||
|
15
|
15
08316-2005A-000 NUT |
08316-2005A-000 |
from US $0.80 |
||
|
16
|
16
17120-82300-000
Motor assy, engine cooling
|
17120-82300-000 |
— | ||
| replacement | |||||
|
16
|
16
17120-71C10-000 MOTOR,COOLING FAN |
17120-71C10-000 |
US $397.44 |
||
|
17
|
17
02112-04103-000
Screw 4x10
|
02112-04103-000 |
— | ||
| replacement | |||||
|
17
|
17
02112-0410A-000 SCREW |
02112-0410A-000 |
from US $2.04 |
||
|
18
|
18
08321-21043-000 Washer,lk,4.1x7Lock washer |
08321-21043-000 |
US $1.12 |
||
| replacement | |||||
|
18
|
18
08321-0104A-000 WASHER,LOCK |
08321-0104A-000 |
from US $0.80 |
||
|
19
|
19
08322-21043-000
Washer,4.5x10x0.8
|
08322-21043-000 |
— | ||
| replacements | |||||
|
19
|
19
08322-0104B-000 WASHERWasher, headlamp |
08322-0104B-000 |
from US $0.37 |
||
|
19
|
19
08322-0104A-000 WASHERWasher, cam rocker arm |
08322-0104A-000 |
from US $3.03 |
||
|
20
|
20
17760-86501-000
Shroud, engine cooling fan
<-17760-86500 |
17760-86501-000 |
— | ||
|
21
|
21
01517-06103-000
ボルト
|
01517-06103-000 |
— | ||
| replacements | |||||
|
21
|
21
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
21
|
21
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
