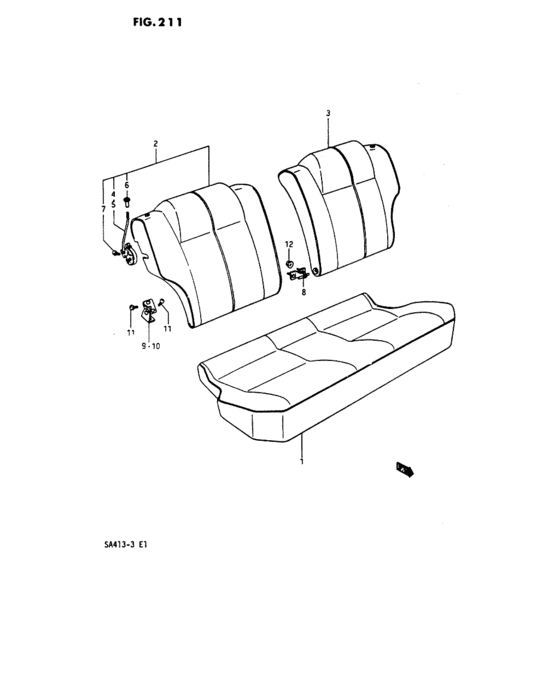

Rear seat (3DR) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- GL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87101-86410-8TE
Cushion assy, seat
BLUE,GL |
87101-86410-8TE |
— | ||
|
1
|
1
87101-86410-8TF
Cushion assy, seat
GRAY,GL |
87101-86410-8TF |
— | ||
|
1
|
1
87101-86130-8TJ
Cushion assy, seat
BLUE,GL:,Norway,5,6,Austria |
87101-86130-8TJ |
— | ||
|
1
|
1
87101-86130-8TK
Cushion assy, seat
GRAY,GL:,Norway,Switzerland,Belgium,2,5,6,Austria |
87101-86130-8TK |
— | ||
|
1
|
1
87101-86130-2CW
Cushion assy, seat
GRAY,GLS |
87101-86130-2CW |
— | ||
|
1
|
1
87101-86420-8TJ
Cushion assy, seat
BLUE:GL:Sweden |
87101-86420-8TJ |
— | ||
|
1
|
1
87101-86420-8TK
Cushion assy, seat
GRAY:GL:Sweden |
87101-86420-8TK |
— | ||
|
1
|
1
87101-86420-2CW
Cushion assy, seat
GRAY:GLS:Sweden |
87101-86420-2CW |
— | ||
|
1
|
1
87101-86350-8TJ
Cushion assy, seat
BLUE,GL:Finland,Israel |
87101-86350-8TJ |
— | ||
|
1
|
1
87101-86350-8TK
Cushion assy, seat
GRAY,GL:Finland,Israel |
87101-86350-8TK |
— | ||
|
1
|
1
87101-86350-2CW
Cushion assy, seat
GRAY:GLS:Finland |
87101-86350-2CW |
— | ||
|
1
|
1
87101-86450-8TE
Cushion assy, seat
BLUE:GL:Saudi Arabia |
87101-86450-8TE |
— | ||
|
1
|
1
87101-86450-8TF
Cushion assy, seat
GRAY:GL:Saudi Arabia |
87101-86450-8TF |
— | ||
|
1
|
1
87101-86420-8TN
Cushion assy, seat
BLUE,GLX |
87101-86420-8TN |
— | ||
|
1
|
1
87101-86420-8TP
Cushion assy, seat
GRAY,GLX |
87101-86420-8TP |
— | ||
|
1
|
1
87101-86130-8TN
Cushion assy, seat
BLUE,GLX:,Norway,Switzerland,Belgium,2,5,6,Austria |
87101-86130-8TN |
— | ||
|
1
|
1
87101-86130-8TP
Cushion assy, seat
GRAY,GLX:,Norway,Switzerland,Belgium,2,5,6,Austria |
87101-86130-8TP |
— | ||
|
1
|
1
87101-86450-8TN
Cushion assy, seat
BLUE:GLX:Saudi Arabia |
87101-86450-8TN |
— | ||
|
1
|
1
87101-86450-8TP
Cushion assy, seat
GRAY:GLX:Saudi Arabia |
87101-86450-8TP |
— | ||
|
1
|
1
87101-86350-8TN
Cushion assy, seat
BLUE:GLX:Israel |
87101-86350-8TN |
— | ||
|
1
|
1
87101-86350-8TP
Cushion assy, seat
GRAY:GLX:Israel |
87101-86350-8TP |
— | ||
|
1
|
1
87101-86130-9BM
Cushion assy, seat
GRAY,GT |
87101-86130-9BM |
— | ||
|
1
|
1
87101-86450-9BM
Cushion assy, seat
GRAY:GT:Saudi Arabia |
87101-86450-9BM |
— | ||
|
1
|
1
87101-86420-9BM
Cushion assy, rear seat
GRAY,GTI:Sweden,Cyprus,Sinagpore,Hong Kong,Latin America |
87101-86420-9BM |
— | ||
|
1
|
1
87101-86350-9BM
Cushion assy, seat
GRAY:GTI:Finland |
87101-86350-9BM |
— | ||
|
2
|
2
87301-86310-8TE
Back assy, seat rh
BLUE,GL |
87301-86310-8TE |
— | ||
|
2
|
2
87301-86310-8TF
Back assy, seat rh
GRAY,GL |
87301-86310-8TF |
— | ||
|
2
|
2
87301-86320-8TJ
Back assy, seat rh
BLUE,GL:,Norway,Sweden,Switzerland,Belgium,2,5,6,Austria |
87301-86320-8TJ |
— | ||
|
2
|
2
87301-86320-8TK
Back assy, seat rh
GRAY,GL:,Norway,Sweden,Switzerland,Belgium,2,5,6,Austria |
87301-86320-8TK |
— | ||
|
2
|
2
87301-86320-2CW
Back assy, seat rh
GRAY,GLS |
87301-86320-2CW |
— | ||
|
2
|
2
87301-86450-8TJ
Back assy, seat rh
BLUE,GL:Finland,Israel |
87301-86450-8TJ |
— | ||
|
2
|
2
87301-86450-8TK
Back assy, seat rh
GRAY,GL:Finland,Israel |
87301-86450-8TK |
— | ||
|
2
|
2
87301-86450-2CW
Back assy, seat rh
GRAY:GLS:Finland |
87301-86450-2CW |
— | ||
|
2
|
2
87301-86450-8TE
Back assy, seat rh
BLUE:GL:Saudi Arabia |
87301-86450-8TE |
— | ||
|
2
|
2
87301-86450-8TF
Back assy, seat rh
GRAY:GL:Saudi Arabia |
87301-86450-8TF |
— | ||
|
2
|
2
87301-86320-8TN
Back assy, seat rh
BLUE,GLX |
87301-86320-8TN |
— | ||
|
2
|
2
87301-86320-8TP
Back assy, seat rh
GRAY,GLX |
87301-86320-8TP |
— | ||
|
2
|
2
87301-86450-8TN
Back assy, seat rh
BLUE,GLX:Saudi Arabia,Israel |
87301-86450-8TN |
— | ||
|
2
|
2
87301-86450-8TP
Back assy, seat rh
GRAY,GLX:Saudi Arabia,Israel |
87301-86450-8TP |
— | ||
|
2
|
2
87301-86320-9BM
Back assy, seat rh
GRAY,GT |
87301-86320-9BM |
— | ||
|
2
|
2
87301-86450-9BM
Back assy, seat rh
GRAY:GT:Saudi Arabia |
87301-86450-9BM |
— | ||
|
3
|
3
87701-86310-8TE
Back assy, seat lh
BLUE,GL |
87701-86310-8TE |
— | ||
|
3
|
3
87701-86310-8TF
Back assy, seat lh
GRAY,GL |
87701-86310-8TF |
— | ||
|
3
|
3
87701-86320-8TJ
Back assy, seat lh
BLUE,GL:,Norway,Sweden,Switzerland,Belgium,2,5,6,Austria |
87701-86320-8TJ |
— | ||
|
3
|
3
87701-86320-8TK
Back assy, seat lh
GRAY,GL:,Norway,Sweden,Switzerland,Belgium,2,5,6,Austria |
87701-86320-8TK |
— | ||
|
3
|
3
87701-86320-2CW
Back assy, seat lh
GRAY,GLS |
87701-86320-2CW |
— | ||
|
3
|
3
87701-86450-8TJ
Back assy, seat lh
BLUE,GL:Finland, Israel |
87701-86450-8TJ |
— | ||
|
3
|
3
87701-86450-8TK
Back assy, seat lh
GRAY,GL:Finland, Israel |
87701-86450-8TK |
— | ||
|
3
|
3
87701-86450-2CW
Back assy, seat lh
GRAY:GLS:Finland |
87701-86450-2CW |
— | ||
|
3
|
3
87701-86450-8TE
Back assy, seat lh
BLUE:GL:Saudi Arabia |
87701-86450-8TE |
— | ||
|
3
|
3
87701-86450-8TF
Back assy, seat lh
GRAY:GL:Saudi Arabia |
87701-86450-8TF |
— | ||
|
3
|
3
87701-86320-8TN
Back assy, seat lh
BLUE,GLX |
87701-86320-8TN |
— | ||
|
3
|
3
87701-86320-8TP
Back assy, seat lh
GRAY,GLX |
87701-86320-8TP |
— | ||
|
3
|
3
87701-86450-8TN
Back assy, seat lh
BLUE,GLX:Saudi Arabia,Israel |
87701-86450-8TN |
— | ||
|
3
|
3
87701-86450-8TP
Back assy, seat lh
GRAY,GLX:Saudi Arabia,Israel |
87701-86450-8TP |
— | ||
|
3
|
3
87701-86320-9BM
Back assy, seat lh
GRAY,GT |
87701-86320-9BM |
— | ||
|
3
|
3
87701-86450-9BM
Back assy, seat lh
GRAY:GT:Saudi Arabia |
87701-86450-9BM |
— | ||
|
4
|
4
87840-82001-000
Lock assy, seat back rh
|
87840-82001-000 |
— | ||
| replacement | |||||
|
4
|
4
87840-82250-000
LOCK ASSY,RR SEAT BACK,R
|
87840-82250-000 |
— | ||
|
5
|
5
87940-82001-000
Lock assy, seat back lh
|
87940-82001-000 |
— | ||
| replacement | |||||
|
5
|
5
87940-82250-000
LOCK ASSY,RR SEAT BACK,L
|
87940-82250-000 |
— | ||
|
6
|
6
87846-82000-4MM
Knob
GRAY |
87846-82000-4MM |
— | ||
| replacement | |||||
|
6
|
6
87846-82000-T01 KNOB,RR SEAT BACK LOCKGRAY |
87846-82000-T01 |
US $1.76 |
||
|
6
|
6
87846-82000-4NM
Knob
BLUE |
87846-82000-4NM |
— | ||
| replacement | |||||
|
6
|
6
87846-82000-5ES KNOB, SEAT BACK LOCK (BLACK)BLUE |
87846-82000-5ES |
US $1.76 |
||
|
6
|
6
87846-82000-281
ノブ(ブラック)
BLACK |
87846-82000-281 |
— | ||
| replacement | |||||
|
6
|
6
87846-82000-5ES KNOB, SEAT BACK LOCK (BLACK)BLACK |
87846-82000-5ES |
US $1.76 |
||
|
7
|
7
02142-06126-000
Screw, front fender rear
|
02142-06126-000 |
— | ||
| replacements | |||||
|
7
|
7
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
7
|
7
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
8
|
8
87860-84000-000 HINGE,RR BACK,CTR<-84350-78000 |
87860-84000-000 |
US $7.36 |
||
|
9
|
9
87850-82001-000
Hinge, seat back rh
|
87850-82001-000 |
— | ||
|
10
|
10
87950-82001-000
Hinge, seat back lh
|
87950-82001-000 |
— | ||
|
11
|
11
02142-06127-000 SCREW |
02142-06127-000 |
from US $0.76 |
||
|
12
|
12
08316-26066-000
Nut 6mm
|
08316-26066-000 |
— | ||
| replacements | |||||
|
12
|
12
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
12
|
12
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
