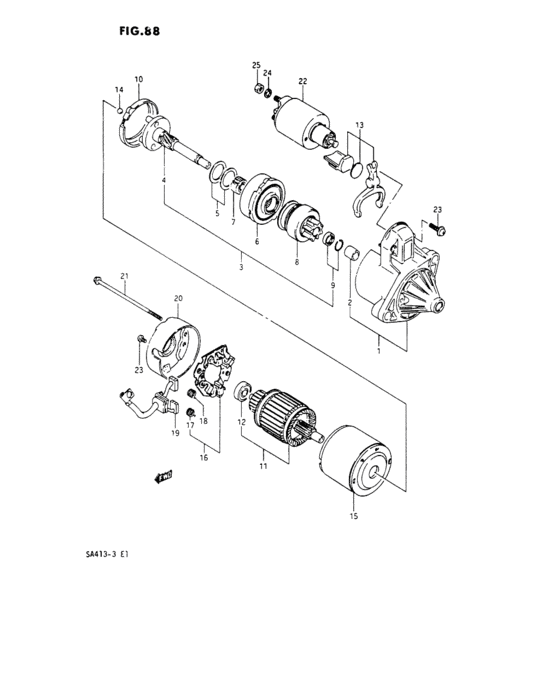

Starting motor (AT:Finland, Norway & TWIN CAM:Finland, Norway, Sweden) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- GL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
31100-86030-000
Motor assy, starting
|
31100-86030-000 |
— | ||
| replacements | |||||
|
|
31100-86033-REM
Starting motor
|
31100-86033-REM |
— | ||
|
|
31100-86033-000 MOTOR ASSY,STARTING |
31100-86033-000 |
US $524.48 |
||
|
1
|
1
31151-86030-000
Bracket assy, front
|
31151-86030-000 |
— | ||
|
2
|
2
31152-79030-000 BEARING,FRONT |
31152-79030-000 |
from US $4.68 |
||
|
3
|
3
31340-86030-000
Shaft assy, clutch
|
31340-86030-000 |
— | ||
|
4
|
4
31341-86030-000
Shaft assy, gear
|
31341-86030-000 |
— | ||
| replacement | |||||
|
4
|
4
31341-60A10-000
SHAFT,GEAR
|
31341-60A10-000 |
— | ||
|
5
|
5
31342-86030-000
Washer set
|
31342-86030-000 |
— | ||
|
6
|
6
31343-86030-000
ギヤアッシ
|
31343-86030-000 |
— | ||
| replacement | |||||
|
6
|
6
31343-50F40-000
GEAR,INTERNAL
|
31343-50F40-000 |
— | ||
|
7
|
7
31344-86030-000 GEAR,PLNTY |
31344-86030-000 |
US $27.60 |
||
|
8
|
8
31320-86030-000 CLUTCH,OVER RUNNING |
31320-86030-000 |
US $111.50 |
||
|
9
|
9
31313-86030-000
STOPPER SET
|
31313-86030-000 |
— | ||
| replacement | |||||
|
9
|
9
31314-86030-000 Stopper Set |
31314-86030-000 |
from US $10.53 |
||
|
10
|
10
31345-86030-000
Packing
|
31345-86030-000 |
— | ||
| replacement | |||||
|
10
|
10
31345-60A00-000 PACKING |
31345-60A00-000 |
US $5.37 |
||
|
11
|
11
31311-86030-000
アマチュア
|
31311-86030-000 |
— | ||
| replacement | |||||
|
11
|
11
31311-86031-000
アマチュア
|
31311-86031-000 |
— | ||
|
12
|
12
31172-86030-000
Bearing
|
31172-86030-000 |
— | ||
|
13
|
13
31191-86030-000
LEVER ASSY
|
31191-86030-000 |
— | ||
|
14
|
14
31193-86030-000 BALL |
31193-86030-000 |
US $2.80 |
||
|
15
|
15
31110-86030-000
ヨークアッシ
|
31110-86030-000 |
— | ||
| replacement | |||||
|
15
|
15
31110-86031-000
YOKE ASSY
|
31110-86031-000 |
— | ||
|
16
|
16
31173-86030-000
Holder assy, brush
|
31173-86030-000 |
— | ||
| replacement | |||||
|
16
|
16
31173-60A20-000 HOLDER ASSY,BRUSH |
31173-60A20-000 |
US $61.09 |
||
|
17
|
17
31135-86030-000
スプリング,ブラシ
|
31135-86030-000 |
— | ||
| replacement | |||||
|
17
|
17
31173-60A20-000 HOLDER ASSY,BRUSH |
31173-60A20-000 |
US $61.09 |
||
|
18
|
18
31137-86030-000
スプリング,ブラシ
|
31137-86030-000 |
— | ||
|
19
|
19
31131-86030-000 BRUSH ASSY |
31131-86030-000 |
US $10.41 |
||
|
20
|
20
31170-86030-000
Bracket, rear
|
31170-86030-000 |
— | ||
|
21
|
21
31261-86030-000
Bolt
|
31261-86030-000 |
— | ||
|
22
|
22
31220-86030-000 SWITCH ASSY |
31220-86030-000 |
US $144.62 |
||
|
23
|
23
31136-79030-000
SCREW ASSY
|
31136-79030-000 |
— | ||
| replacement | |||||
|
23
|
23
31175-79030-000 Screw Set |
31175-79030-000 |
US $8.16 |
||
|
24
|
24
08321-21083-000
Washr,lk8.2x15.
|
08321-21083-000 |
— | ||
| replacements | |||||
|
24
|
24
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
24
|
24
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
25
|
25
08310-11083-000
ナット
|
08310-11083-000 |
— | ||
| replacements | |||||
|
25
|
25
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
25
|
25
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.80 |
||
