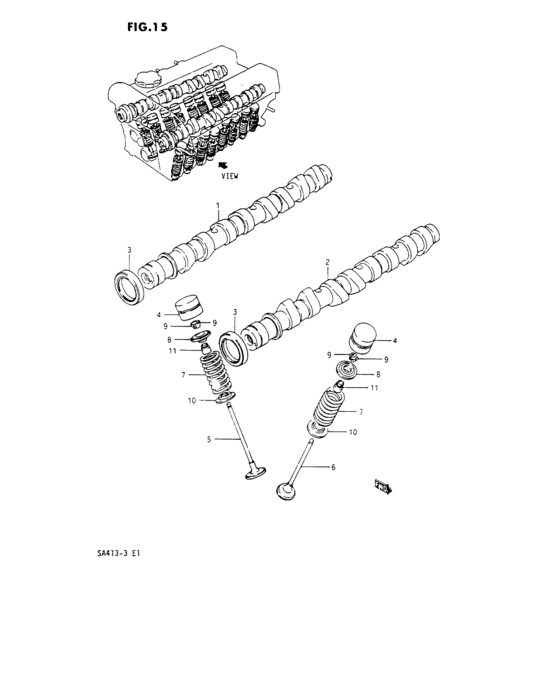

Cam shaft and valve (TWIN CAM) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Africa
- transmission
- MT
- grade
- HIGH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12711-86502-000
Camshaft, intaie
<-12711-86501 |
12711-86502-000 |
— | ||
| replacement | |||||
|
1
|
1
12711-64B11-000 CAMSHAFT,INTAKE<-12711-86501 |
12711-64B11-000 |
US $264.96 |
||
|
2
|
2
12721-86502-000
Camshaft, exhaust
<-12721-86501 |
12721-86502-000 |
— | ||
| replacement | |||||
|
2
|
2
12721-64B11-000
Camshaft,exhaust
<-12721-86501 |
12721-64B11-000 |
— | ||
|
3
|
3
09283-32022-000
オイルシール,32X47X8
|
09283-32022-000 |
— | ||
| replacement | |||||
|
3
|
3
09283-32042-000 SEAL,OIL(32X47X6) |
09283-32042-000 |
from US $8.03 |
||
|
4
|
4
12891-86501-000
Adjuster, valve lash
<-12891-86500 |
12891-86501-000 |
— | ||
| replacement | |||||
|
4
|
4
12891-86521-000 ADJUSTER,HYDR VALVE LASH<-12891-86500 |
12891-86521-000 |
US $114.77 |
||
|
5
|
5
12911-86500-000
Valve, Intake
|
12911-86500-000 |
— | ||
| replacement | |||||
|
5
|
5
12911-86511-000
Valve,intake
|
12911-86511-000 |
— | ||
|
6
|
6
12915-86550-000
Valve, Exhaust
|
12915-86550-000 |
— | ||
| replacement | |||||
|
6
|
6
12915-86561-000
VALVE,EXH
|
12915-86561-000 |
— | ||
|
7
|
7
12921-86500-000
Spring, valve
|
12921-86500-000 |
— | ||
| replacement | |||||
|
7
|
7
12921-86501-000
Spring,valve
|
12921-86501-000 |
— | ||
|
8
|
8
12931-86500-000
リテーナ,バルブスプリング
|
12931-86500-000 |
— | ||
| replacement | |||||
|
8
|
8
12931-89J00-000 RETAINER,VALVE SPRING |
12931-89J00-000 |
US $8.11 |
||
|
9
|
9
12932-24400-000 COTTER,VALVE |
12932-24400-000 |
from US $1.17 |
||
|
10
|
10
12933-86510-000 SEAT,VALVE SPRING |
12933-86510-000 |
from US $1.52 |
||
|
11
|
11
09289-05012-000 SEAL,OIL(5.5X11.5X9.3) |
09289-05012-000 |
from US $3.94 |
||
