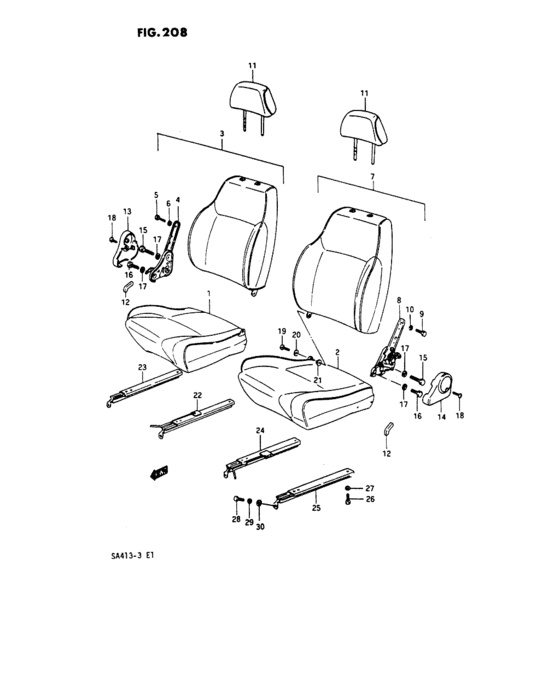

Front seat (5DR:GLX) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Africa
- transmission
- MT
- grade
- HIGH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
85101-86640-8TN
Cushion assy, seat rh
BLUE |
85101-86640-8TN |
— | ||
|
1
|
1
85101-86640-8TP
Cushion assy, seat rh
GRAY |
85101-86640-8TP |
— | ||
|
1
|
1
85101-86660-8TN
Cushion assy, seat rh
BLUE,Saudi Arabia,Israel |
85101-86660-8TN |
— | ||
|
1
|
1
85101-86660-8TP
Cushion assy, seat rh
GRAY,Saudi Arabia,Israel |
85101-86660-8TP |
— | ||
|
2
|
2
85102-86640-8TN
Cushion assy, seat lh
BLUE |
85102-86640-8TN |
— | ||
|
2
|
2
85102-86640-8TP
Cushion assy, seat lh
GRAY |
85102-86640-8TP |
— | ||
|
2
|
2
85102-86660-8TN
Cushion assy, seat lh
BLUE,Saudi Arabia,Israel |
85102-86660-8TN |
— | ||
|
2
|
2
85102-86660-8TP
Cushion assy, seat lh
GRAY,Saudi Arabia,Israel |
85102-86660-8TP |
— | ||
|
3
|
3
85301-86640-8TN
Back assy, seat rh
BLUE |
85301-86640-8TN |
— | ||
|
3
|
3
85301-86640-8TP
Back assy, seat rh
GRAY |
85301-86640-8TP |
— | ||
|
3
|
3
85301-86660-8TN
Back assy, seat rh
BLUE,Saudi Arabia,Israel |
85301-86660-8TN |
— | ||
|
3
|
3
85301-86660-8TP
Back assy, seat rh
GRAY,Saudi Arabia,Israel |
85301-86660-8TP |
— | ||
|
4
|
4
85210-86000-000
RECLINING ASSY,FR SEAT,R
|
85210-86000-000 |
— | ||
|
5
|
5
01107-08167-000
Bolt
|
01107-08167-000 |
— | ||
| replacement | |||||
|
5
|
5
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
6
|
6
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
6
|
6
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
7
|
7
85302-86640-8TN
Back assy, seat lh
BLUE |
85302-86640-8TN |
— | ||
|
7
|
7
85302-86640-8TP
Back assy, seat lh
GRAY |
85302-86640-8TP |
— | ||
|
7
|
7
85302-86660-8TN
Back assy, seat lh
BLUE,Saudi Arabia,Israel |
85302-86660-8TN |
— | ||
|
7
|
7
85302-86660-8TP
Back assy, seat lh
GRAY,Saudi Arabia,Israel |
85302-86660-8TP |
— | ||
|
8
|
8
85710-86000-000
RECLINING ASSY,FR SEAT,L
|
85710-86000-000 |
— | ||
|
9
|
9
01107-08167-000
Bolt
|
01107-08167-000 |
— | ||
| replacement | |||||
|
9
|
9
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
10
|
10
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
10
|
10
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
11
|
11
86401-82020-4NP
Headrestraint assy
BLUE |
86401-82020-4NP |
— | ||
|
11
|
11
86401-82020-4PM
Headrestraint assy
GRAY |
86401-82020-4PM |
— | ||
|
12
|
12
85211-82000-4MM
Knob, reclining front
GRAY |
85211-82000-4MM |
— | ||
| replacement | |||||
|
12
|
12
85211-84000-5PK KNOB,RECLININGGRAY |
85211-84000-5PK |
US $2.56 |
||
|
12
|
12
85211-82000-4NM
Knob, reclining front
BLUE |
85211-82000-4NM |
— | ||
| replacement | |||||
|
12
|
12
85211-82000-T01 KNOB,RECLBLUE |
85211-82000-T01 |
US $4.05 |
||
|
13
|
13
85221-82001-4MM
Cover, reclining rh
GRAY |
85221-82001-4MM |
— | ||
| replacement | |||||
|
13
|
13
85221-82001-5PK COVER,RECLINING,RGRAY |
85221-82001-5PK |
US $8.02 |
||
|
13
|
13
85221-82001-4NM
Cover, reclining rh
BLUE |
85221-82001-4NM |
— | ||
| replacement | |||||
|
13
|
13
85221-82001-5PK COVER,RECLINING,RBLUE |
85221-82001-5PK |
US $8.02 |
||
|
14
|
14
85721-82001-4MM
Cover, reclining lh
GRAY |
85721-82001-4MM |
— | ||
| replacement | |||||
|
14
|
14
85721-82001-5PK COVER,RECLINING,LGRAY |
85721-82001-5PK |
US $8.02 |
||
|
14
|
14
85721-82001-4NM
Cover, reclining lh
BLUE |
85721-82001-4NM |
— | ||
| replacement | |||||
|
14
|
14
85721-82001-5PK COVER,RECLINING,LBLUE |
85721-82001-5PK |
US $8.02 |
||
|
15
|
15
01107-10168-000
Bolt
|
01107-10168-000 |
— | ||
| replacement | |||||
|
15
|
15
01500-10167-000 Bolt |
01500-10167-000 |
from US $5.24 |
||
|
16
|
16
01107-10408-000
Bolt
|
01107-10408-000 |
— | ||
| replacement | |||||
|
16
|
16
01500-10407-000 Bolt |
01500-10407-000 |
from US $0.91 |
||
|
17
|
17
08321-21107-000 Lock washer |
08321-21107-000 |
US $2.54 |
||
| replacement | |||||
|
17
|
17
08321-01107-000 WASHER,LOCKLock washer |
08321-01107-000 |
from US $0.76 |
||
|
18
|
18
03241-05125-000
Screw
|
03241-05125-000 |
— | ||
| replacement | |||||
|
18
|
18
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
19
|
19
02142-06125-000
Screw
|
02142-06125-000 |
— | ||
| replacements | |||||
|
19
|
19
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
19
|
19
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
20
|
20
09160-06039-000 Washer |
09160-06039-000 |
US $1.12 |
||
| replacement | |||||
|
20
|
20
09160-06109-000 WASHER(6.5X18X1.6) |
09160-06109-000 |
from US $0.80 |
||
|
21
|
21
85319-82000-000 BUSH,FR SEAT BACK FIXING |
85319-82000-000 |
US $1.92 |
||
|
22
|
22
86610-82021-000
Adjuster, front seat inside
RH SEAT |
86610-82021-000 |
— | ||
| replacement | |||||
|
22
|
22
86610-82031-000
ADJUSTER,FR SEAT INSIDE,R
RH SEAT |
86610-82031-000 |
— | ||
|
23
|
23
86630-82022-000
ADJUSTER,FR SEAT OUTSIDE
RH SEAT |
86630-82022-000 |
— | ||
|
24
|
24
86810-82021-000
ADJUSTER,FR SEAT INSIDE,L
LH SEAT |
86810-82021-000 |
— | ||
|
25
|
25
86630-82022-000
ADJUSTER,FR SEAT OUTSIDE
LH SEAT |
86630-82022-000 |
— | ||
|
26
|
26
01107-08166-000
Bolt m8x1.25x16
|
01107-08166-000 |
— | ||
| replacement | |||||
|
26
|
26
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
27
|
27
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
27
|
27
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
27
|
27
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
28
|
28
01107-08165-000
Bolt 6x16
|
01107-08165-000 |
— | ||
| replacement | |||||
|
28
|
28
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
29
|
29
08321-21084-000
Lock washer
|
08321-21084-000 |
— | ||
| replacements | |||||
|
29
|
29
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
29
|
29
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
30
|
30
08322-11084-000
Washer
|
08322-11084-000 |
— | ||
| replacements | |||||
|
30
|
30
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
30
|
30
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
