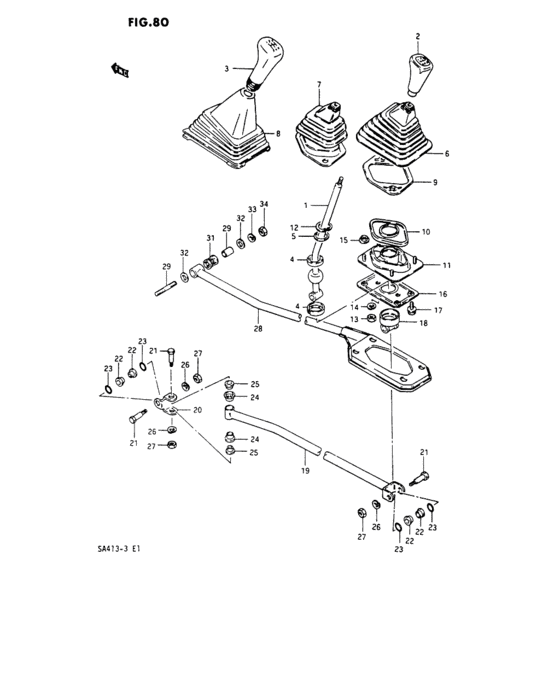

Gear shift controls (MT:GL, GLS, GLX, GT) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Africa
- transmission
- MT
- grade
- HIGH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28110-82001-000
Lever, gear shift control
|
28110-82001-000 |
— | ||
|
2
|
2
28113-82650-4NM
Knob
BLUE,GL,GLX |
28113-82650-4NM |
— | ||
| replacement | |||||
|
2
|
2
28113-82650-281
KNOB,GEAR SHF CONT LEVER
BLUE,GL,GLX |
28113-82650-281 |
— | ||
|
2
|
2
28113-82650-4MM
Knob
GRAY,GL,GLS,GLX |
28113-82650-4MM |
— | ||
| replacement | |||||
|
2
|
2
28113-82650-281
KNOB,GEAR SHF CONT LEVER
GRAY,GL,GLS,GLX |
28113-82650-281 |
— | ||
|
3
|
3
28113-82080-281
Knob
BLACK,GT |
28113-82080-281 |
— | ||
|
4
|
4
28115-82000-000 SEAT,GEAR SHIFT CONTROL LEVER |
28115-82000-000 |
US $2.56 |
||
|
5
|
5
08221-30386-000
ワッシャ,30X38X0.8
|
08221-30386-000 |
— | ||
| replacement | |||||
|
5
|
5
09181-30134-000 SHIM(30X38X0.8) |
09181-30134-000 |
US $1.68 |
||
|
5
|
5
08211-30381-000
ワッシャ,30X38X1
|
08211-30381-000 |
— | ||
| replacement | |||||
|
5
|
5
09181-30139-000 SHIM(30X38X1)Washer, rear final drive |
09181-30139-000 |
from US $1.82 |
||
|
5
|
5
09181-30025-000
シム,30X38X1.2
|
09181-30025-000 |
— | ||
| replacement | |||||
|
5
|
5
09181-30148-000 SHIM(30X38X1.2) |
09181-30148-000 |
US $1.82 |
||
|
5
|
5
09181-30026-000
シム,30X38X1.4
|
09181-30026-000 |
— | ||
| replacement | |||||
|
5
|
5
09181-30154-000 SHIM(30X38X1.4) |
09181-30154-000 |
US $1.82 |
||
|
6
|
6
28135-82000-000
Boot, control lever
N/CONSOLE BOX |
28135-82000-000 |
— | ||
| replacement | |||||
|
6
|
6
28135-82000-281
Boot,gear shift
N/CONSOLE BOX |
28135-82000-281 |
— | ||
|
7
|
7
28135-78000-000 BOOT,GR SHF CONT LEVERW/CONSOLE BOX |
28135-78000-000 |
US $15.97 |
||
|
8
|
8
28136-82081-000
Boot, control lever
GT |
28136-82081-000 |
— | ||
|
9
|
9
28145-78000-000
カバー,ギヤシフトコントロールブーツ
|
28145-78000-000 |
— | ||
| replacement | |||||
|
9
|
9
28145-70G00-000 COVER,GEAR SHF CONT BOOT |
28145-70G00-000 |
US $6.24 |
||
|
10
|
10
28189-82000-000
カバー,ハウジングダスト
|
28189-82000-000 |
— | ||
| replacement | |||||
|
10
|
10
28189-60B00-000 COVER,HOUSING DUST |
28189-60B00-000 |
US $20.53 |
||
|
11
|
11
28180-82001-000 HOUSING,GEAR SHIFT CONT |
28180-82001-000 |
US $101.84 |
||
|
12
|
12
08331-41389-000
Circlip
|
08331-41389-000 |
— | ||
| replacement | |||||
|
12
|
12
08331-4138A-000 CIRCLIP |
08331-4138A-000 |
from US $1.68 |
||
|
13
|
13
08310-12103-000
Nut
|
08310-12103-000 |
— | ||
| replacements | |||||
|
13
|
13
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
13
|
13
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
14
|
14
08321-21103-000 Lock washer |
08321-21103-000 |
from US $0.77 |
||
| replacements | |||||
|
14
|
14
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
14
|
14
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
15
|
15
08316-16086-000
Nut, reverse lever pivot
|
08316-16086-000 |
— | ||
| replacement | |||||
|
15
|
15
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
16
|
16
28190-82001-000
PLATE,CONT LEVER GUIDE
|
28190-82001-000 |
— | ||
|
17
|
17
01517-06103-000
ボルト
|
01517-06103-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
17
|
17
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
18
|
18
28279-82001-000
BOOT,GR SHF CONT SHAFT RR
<-28279-82000 |
28279-82001-000 |
— | ||
|
19
|
19
28250-82600-000
Shaft, control
|
28250-82600-000 |
— | ||
|
20
|
20
28270-82001-000
Joint, control
|
28270-82001-000 |
— | ||
|
21
|
21
28256-86000-000
Bolt,control shaft
|
28256-86000-000 |
— | ||
|
22
|
22
09306-10013-000
BUSH
|
09306-10013-000 |
— | ||
|
23
|
23
09280-10011-000
O RING(D:3,ID:10)
|
09280-10011-000 |
— | ||
|
24
|
24
09305-12012-000
BUSH
|
09305-12012-000 |
— | ||
|
25
|
25
09306-10014-000 BUSH |
09306-10014-000 |
US $2.13 |
||
|
26
|
26
08321-21083-000
Washr,lk8.2x15.
|
08321-21083-000 |
— | ||
| replacements | |||||
|
26
|
26
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
26
|
26
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
27
|
27
08310-22083-000
ナット
|
08310-22083-000 |
— | ||
| replacements | |||||
|
27
|
27
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
27
|
27
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.80 |
||
|
28
|
28
28260-82600-000
Rod, extension
|
28260-82600-000 |
— | ||
|
29
|
29
01421-10503-000
Stud bolt (l:50)
|
01421-10503-000 |
— | ||
| replacement | |||||
|
29
|
29
01421-1050A-000 BOLT,STUD |
01421-1050A-000 |
from US $1.67 |
||
|
30
|
30
09180-10089-000
スペーサ,10.2X14X32
|
09180-10089-000 |
— | ||
| replacement | |||||
|
30
|
30
09180-10141-XC0 SPACER(10.2X14X33) |
09180-10141-XC0 |
US $2.40 |
||
|
31
|
31
09305-14006-000 BUSH |
09305-14006-000 |
US $1.98 |
||
|
32
|
32
09160-10078-000 Washer |
09160-10078-000 |
from US $1.22 |
||
| replacements | |||||
|
32
|
32
09160-10035-000 WASHER(10.5X28X2.3)Washer |
09160-10035-000 |
from US $1.28 |
||
|
32
|
32
09160-10129-000 WASHER(10.5X28X1.6)Washer (10.5x28x1.6) |
09160-10129-000 |
US $1.28 |
||
|
33
|
33
08321-21103-000 Lock washer |
08321-21103-000 |
from US $0.77 |
||
| replacements | |||||
|
33
|
33
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
33
|
33
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
34
|
34
08310-12103-000
Nut
|
08310-12103-000 |
— | ||
| replacements | |||||
|
34
|
34
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
34
|
34
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
