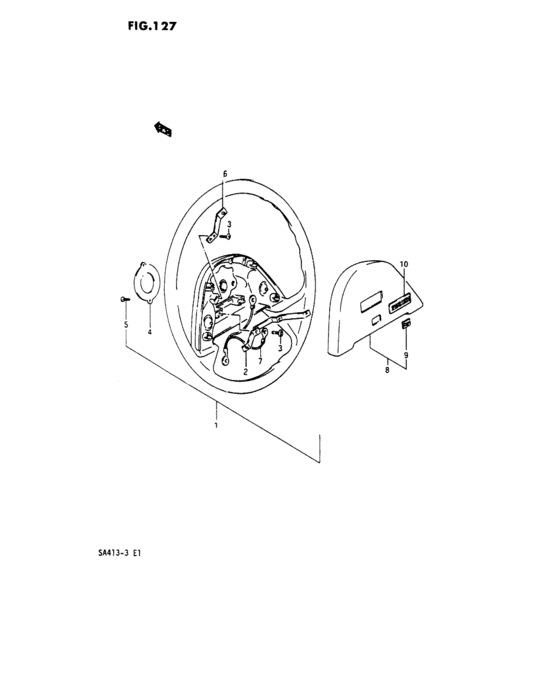

Steering wheel (GL) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Africa
- transmission
- MT
- grade
- HIGH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48110-86000-4MM
WHEEL ASSY,STEERING(GRAY)
GRAY |
48110-86000-4MM |
— | ||
|
1
|
1
48110-86000-4NM
Wheel, steering
BLUE |
48110-86000-4NM |
— | ||
| replacement | |||||
|
1
|
1
48110-86000-4MM
WHEEL ASSY,STEERING(GRAY)
BLUE |
48110-86000-4MM |
— | ||
|
2
|
2
48119-86000-000
Spring, horn
|
48119-86000-000 |
— | ||
|
3
|
3
48124-86000-000
スクリュ,ホーンスプリング
|
48124-86000-000 |
— | ||
| replacements | |||||
|
3
|
3
03211-0510A-000 SCREW |
03211-0510A-000 |
US $0.80 |
||
|
3
|
3
03211-05103-000
New Genuine Part
|
03211-05103-000 |
— | ||
|
4
|
4
48152-86000-000
リング,スリップ
|
48152-86000-000 |
— | ||
| replacement | |||||
|
4
|
4
48152-60B00-000 RING,SLIP |
48152-60B00-000 |
US $8.68 |
||
|
5
|
5
48125-86000-000
Screw, horn spring
|
48125-86000-000 |
— | ||
| replacement | |||||
|
5
|
5
48118-50F00-000
SCREW,SLIP RING
|
48118-50F00-000 |
— | ||
|
6
|
6
48117-86000-000
Spring, horn
|
48117-86000-000 |
— | ||
|
7
|
7
48127-86000-000
Cord
|
48127-86000-000 |
— | ||
|
8
|
8
48120-86000-4MM
Pad, steering
GRAY |
48120-86000-4MM |
— | ||
| replacement | |||||
|
8
|
8
48120-86010-4MM
PAD,STEERING
GRAY |
48120-86010-4MM |
— | ||
|
8
|
8
48120-86000-4NM
Pad, steering
BLUE |
48120-86000-4NM |
— | ||
| replacement | |||||
|
8
|
8
48120-86010-4MM
PAD,STEERING
BLUE |
48120-86010-4MM |
— | ||
|
8
|
8
48120-86010-4MM
PAD,STEERING
GRAY,,Finland,Norway,Sweden,Switzerland,Belgium,2,5,6,Austria,Saudi Arabia,Israel,Ireland |
48120-86010-4MM |
— | ||
|
8
|
8
48120-86010-4NM
Pad, steering
BLUE,,Finland,Norway,Sweden,Switzerland,Belgium,2,5,6,Austria,Saudi Arabia,Israel,Ireland |
48120-86010-4NM |
— | ||
| replacement | |||||
|
8
|
8
48120-86010-4MM
PAD,STEERING
BLUE,,Finland,Norway,Sweden,Switzerland,Belgium,2,5,6,Austria,Saudi Arabia,Israel,Ireland |
48120-86010-4MM |
— | ||
|
9
|
9
48122-86000-000
Seal, horn mark
,Finland,Norway,Sweden,Switzerland,Belgium,2,5,6,Austria,Saudi Arabia,Israel,Ireland |
48122-86000-000 |
— | ||
|
10
|
10
48131-82060-000
Emblem
|
48131-82060-000 |
— | ||
