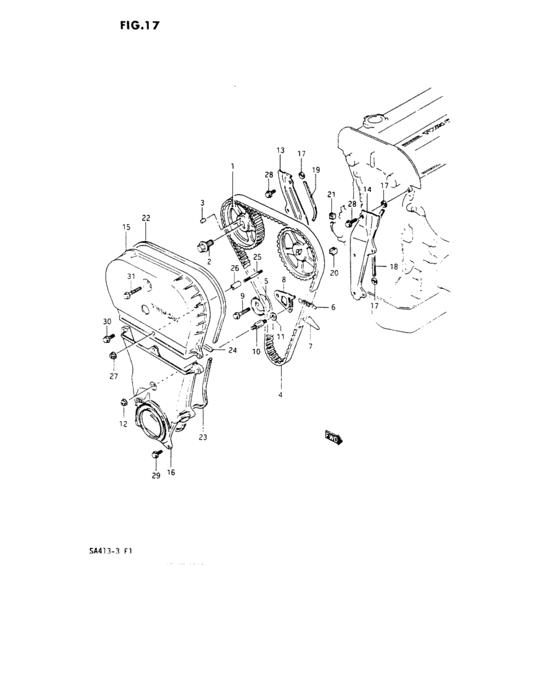

Timing belt and cover (TWIN CAM) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Africa
- transmission
- MT
- grade
- HIGH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12741-86510-000
Pulley, cam shaft timing
|
12741-86510-000 |
— | ||
|
2
|
2
01537-12256-000
ボルト
|
01537-12256-000 |
— | ||
| replacement | |||||
|
2
|
2
01550-1225A-000 BOLT |
01550-1225A-000 |
from US $1.28 |
||
|
3
|
3
09202-05027-000 PIN(5X8.8) |
09202-05027-000 |
from US $1.87 |
||
|
4
|
4
12761-86500-000
Belt, timing
|
12761-86500-000 |
— | ||
| replacement | |||||
|
4
|
4
11407-86501-000
BELT SET,TIMING
|
11407-86501-000 |
— | ||
|
5
|
5
12810-86500-000
Tensioner assy, timing belt
|
12810-86500-000 |
— | ||
| replacement | |||||
|
5
|
5
12810-86501-000
TENSIONER ASSY,TIMING BELT
|
12810-86501-000 |
— | ||
|
6
|
6
12821-82000-000
Spring, tensioner
|
12821-82000-000 |
— | ||
| replacement | |||||
|
6
|
6
12821-82002-000 SPRING,TENSIONER |
12821-82002-000 |
US $10.08 |
||
|
6
|
6
12821-82001-000
Ressort tendeur
AA33S-105232~ AB33S-101111~,JSA0AA33S00106771~,JSA0AA33F00101073~ |
12821-82001-000 |
— | ||
| replacement | |||||
|
6
|
6
12821-82002-000 SPRING,TENSIONERAA33S-105232~ AB33S-101111~,JSA0AA33S00106771~,JSA0AA33F00101073~ |
12821-82002-000 |
US $10.08 |
||
|
7
|
7
12823-82000-000
Damper, tensioner spring
|
12823-82000-000 |
— | ||
| replacement | |||||
|
7
|
7
12823-82001-000 DAMPER,TENSIONER SPRING |
12823-82001-000 |
US $1.92 |
||
|
7
|
7
12823-82001-000 DAMPER,TENSIONER SPRINGAA33S-105232~ AB33S-101111~,JSA0AA33S00106771~,JSA0AA33F00101073~ |
12823-82001-000 |
US $1.92 |
||
|
8
|
8
12822-82000-000
Plate, tensioner
|
12822-82000-000 |
— | ||
| replacement | |||||
|
8
|
8
12822-82002-000 PLATE,TENSIONER |
12822-82002-000 |
US $2.24 |
||
|
8
|
8
12822-82001-000
Plaque tendeur
AA33S-105232~ AB33S-101111~,JSA0AA33S00106771~,JSA0AA33F00101073~ |
12822-82001-000 |
— | ||
| replacement | |||||
|
8
|
8
12822-82002-000 PLATE,TENSIONERAA33S-105232~ AB33S-101111~,JSA0AA33S00106771~,JSA0AA33F00101073~ |
12822-82002-000 |
US $2.24 |
||
|
9
|
9
01517-08356-000
Bolt, front
|
01517-08356-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0835B-000 BOLT |
01550-0835B-000 |
from US $1.12 |
||
|
9
|
9
01550-0835A-000 BOLT |
01550-0835A-000 |
from US $1.06 |
||
|
10
|
10
09108-06056-000
BOLT,STUD
|
09108-06056-000 |
— | ||
|
11
|
11
09160-06057-000
Washer (6.5x18x1.6)
|
09160-06057-000 |
— | ||
| replacement | |||||
|
11
|
11
09160-06109-000 WASHER(6.5X18X1.6) |
09160-06109-000 |
from US $0.80 |
||
|
12
|
12
08316-16063-000 Nut |
08316-16063-000 |
US $2.91 |
||
| replacement | |||||
|
12
|
12
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
13
|
13
11360-86500-000
Cover, inside no. 1
|
11360-86500-000 |
— | ||
| replacement | |||||
|
13
|
13
11360-86501-000
COV,TIMING IN,NO.2
|
11360-86501-000 |
— | ||
|
14
|
14
11370-86500-000
Cover, inside no. 2
|
11370-86500-000 |
— | ||
| replacement | |||||
|
14
|
14
11370-86501-000
COV,TIMING IN,NO.1
|
11370-86501-000 |
— | ||
|
15
|
15
11380-86502-000
COVER,TIMING BELT OUT,1
|
11380-86502-000 |
— | ||
|
16
|
16
11390-86501-000
COVER,TIMING BELT OUT,2
|
11390-86501-000 |
— | ||
|
17
|
17
11481-86500-000
Seal, inside cover no. 1
|
11481-86500-000 |
— | ||
|
18
|
18
11482-86500-000
Seal,inside cover
|
11482-86500-000 |
— | ||
|
19
|
19
11483-86500-000
Seal, inside cover no.3
|
11483-86500-000 |
— | ||
| replacement | |||||
|
19
|
19
11482-86500-000
Seal,inside cover
|
11482-86500-000 |
— | ||
|
20
|
20
11394-82000-000
シール,ウォータポンプ
|
11394-82000-000 |
— | ||
| replacement | |||||
|
20
|
20
11394-70B00-000 SEAL |
11394-70B00-000 |
US $4.80 |
||
|
21
|
21
11395-86500-000
Seal, water pump & head
|
11395-86500-000 |
— | ||
| replacement | |||||
|
21
|
21
11394-70B00-000 SEAL |
11394-70B00-000 |
US $4.80 |
||
|
22
|
22
11484-86501-000
SEAL,OUTSIDE COVER NO.1
|
11484-86501-000 |
— | ||
|
23
|
23
11485-86500-000
Seal, outside cover no. 2
|
11485-86500-000 |
— | ||
| replacement | |||||
|
23
|
23
11396-71C00-000 SEAL,TIMING BELT COVER OUT |
11396-71C00-000 |
from US $4.12 |
||
|
24
|
24
11486-86500-000
Seal, outside cover no. 3
|
11486-86500-000 |
— | ||
| replacement | |||||
|
24
|
24
11484-86501-000
SEAL,OUTSIDE COVER NO.1
|
11484-86501-000 |
— | ||
|
25
|
25
01421-06453-000
スタッドボルト
|
01421-06453-000 |
— | ||
| replacement | |||||
|
25
|
25
01421-0645A-000 BOLT,STUD |
01421-0645A-000 |
from US $1.12 |
||
|
26
|
26
11399-86500-000
Spacer
|
11399-86500-000 |
— | ||
| replacement | |||||
|
26
|
26
11399-86501-000
Spacer
|
11399-86501-000 |
— | ||
|
27
|
27
08316-16063-000 Nut |
08316-16063-000 |
US $2.91 |
||
| replacement | |||||
|
27
|
27
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
28
|
28
09103-06083-000
Bolt (6x12)
|
09103-06083-000 |
— | ||
| replacement | |||||
|
28
|
28
09103-06285-000 BOLT(6X12)Bolt (6x12) |
09103-06285-000 |
from US $1.28 |
||
|
29
|
29
01517-06163-000
Bolt
|
01517-06163-000 |
— | ||
| replacements | |||||
|
29
|
29
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
29
|
29
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
|
30
|
30
01517-06253-000
ボルト
|
01517-06253-000 |
— | ||
| replacements | |||||
|
30
|
30
01550-0625A-000 BOLTBolt |
01550-0625A-000 |
from US $0.96 |
||
|
30
|
30
01550-0625B-000 BOLTBolt, head cover |
01550-0625B-000 |
from US $0.91 |
||
|
31
|
31
01537-06403-000
New Genuine Part
|
01537-06403-000 |
— | ||
| replacement | |||||
|
31
|
31
01550-0640B-000 Bolt |
01550-0640B-000 |
from US $0.96 |
||
