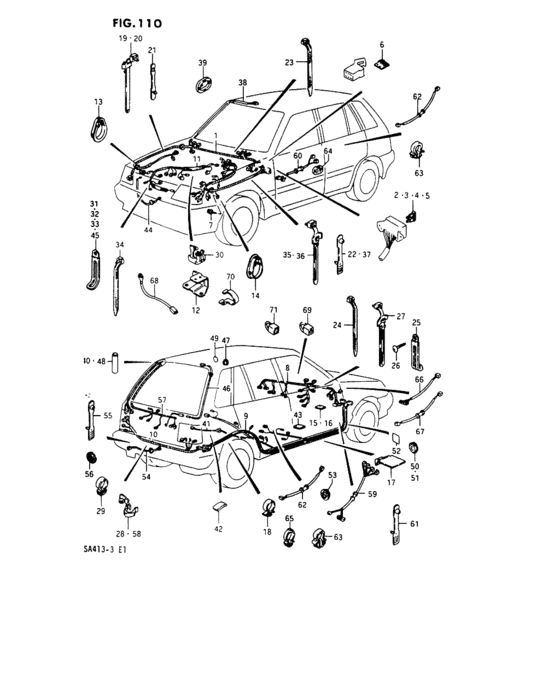

Wiring harness (5DR:GL, GLX) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Africa
- transmission
- MT
- grade
- HIGH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-86400-000
Harness assy, wiring no. 1
MT:LHD(W/ANALOGUE METER) |
36610-86400-000 |
— | ||
|
1
|
1
36610-86410-000
Harness assy, wiring no. 1
MT:LHD(W/DIGITAL METER) |
36610-86410-000 |
— | ||
|
1
|
1
36610-86200-000
Harness assy, wiring no. 1
MT:RHD(W/ANALOGUE METER) |
36610-86200-000 |
— | ||
|
1
|
1
36610-86210-000
Harness assy, wiring no. 1
MT:RHD(W/DIGITAL METER) |
36610-86210-000 |
— | ||
|
1
|
1
36610-86490-000
Harness assy, wiring no. 1
MT:Finland, Norway (W/ANALOGUE METER) |
36610-86490-000 |
— | ||
|
1
|
1
36610-86720-000
Harness assy, wiring no. 1
MT:Finland, Norway (W/DIGITAL METER) |
36610-86720-000 |
— | ||
|
1
|
1
36610-86730-000
Harness assy, wiring no. 1
Sweden:W/ANALOGUE METER (W/CATALYZER) |
36610-86730-000 |
— | ||
|
1
|
1
36610-86740-000
Harness assy, wiring no. 1
Sweden:W/DIGITAL METER (W/CATALYZER) |
36610-86740-000 |
— | ||
|
1
|
1
36610-86450-000
Harness assy, wiring no. 1
MT:Switzerland(W/ANALOGUE METER) |
36610-86450-000 |
— | ||
|
1
|
1
36610-86710-000
Harness assy, wiring no. 1
MT:Switzerland(W/DIGITAL METER) |
36610-86710-000 |
— | ||
|
2
|
2
09481-05101-000 FUSE(5A) |
09481-05101-000 |
from US $2.82 |
||
|
3
|
3
09481-10101-000 FUSE(10A) |
09481-10101-000 |
from US $1.28 |
||
|
4
|
4
09481-15101-000 FUSE(15A)Fuse (15a) |
09481-15101-000 |
from US $1.28 |
||
|
5
|
5
09481-20101-000 FUSE(20A) |
09481-20101-000 |
from US $3.35 |
||
|
6
|
6
33458-82010-000 DIODE |
33458-82010-000 |
US $14.32 |
||
|
7
|
7
09115-06001-000
Bolt, lh
|
09115-06001-000 |
— | ||
| replacement | |||||
|
7
|
7
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
|
8
|
8
36620-86200-000
Harness assy, wiring no. 2
LHD W/ANALOGUE METER(N/TACHO) |
36620-86200-000 |
— | ||
|
8
|
8
36620-86210-000
Harness assy, wiring no. 2
LHD W/ANALOGUE METER(W/TACHO) |
36620-86210-000 |
— | ||
|
8
|
8
36620-86220-000
Harness assy, wiring no. 2
LHD:W/DIGITAL METER |
36620-86220-000 |
— | ||
|
8
|
8
36620-86100-000
Harness assy, wiring no. 2
RHD W/ANALOGUE METER(N/TACHO) |
36620-86100-000 |
— | ||
|
8
|
8
36620-86110-000
Harness assy, wiring no. 2
RHD W/ANALOGUE METER(W/TACHO) |
36620-86110-000 |
— | ||
|
8
|
8
36620-86120-000
Harness assy, wiring no. 2
RHD:W/DIGITAL METER |
36620-86120-000 |
— | ||
|
8
|
8
36620-86130-000
Harness assy, wiring no. 2
, Ireland W/ANALOGUE METER(N/TACHO) |
36620-86130-000 |
— | ||
|
8
|
8
36620-86140-000
Harness assy, wiring no. 2
, Ireland W/ANALOGUE METER(W/TACHO) |
36620-86140-000 |
— | ||
|
8
|
8
36620-86150-000
Harness assy, wiring no. 2
, Ireland:W/DIGITAL METER |
36620-86150-000 |
— | ||
|
8
|
8
36620-86230-000
Harness assy, wiring no. 2
Finland, Norway, Sweden, Switzerland, Belgium, Germany, Holland,,Denmark, Austria, Israel W/ANALOGUE,METER(N/TACHO) |
36620-86230-000 |
— | ||
|
8
|
8
36620-86240-000
Harness assy, wiring no. 2
Finland, Norway, Switzerland, Belgium, Germany, Holland, Holland,,Denmark, Austria, Israel W/ANALOGUE,METER(W/TACHO) |
36620-86240-000 |
— | ||
|
8
|
8
36620-86380-000
Harness assy, wiring no. 2
Sweden W/ANALOGUE METER(W/TACHO),W/CATALYZER |
36620-86380-000 |
— | ||
|
8
|
8
36620-86250-000
Harness assy, wiring no. 2
Finland, Norway, Sweden, Switzerland, Belgium, Germany, Holland,,Denmark, Austria, Israel W/DIGITAL METER |
36620-86250-000 |
— | ||
|
8
|
8
36620-86190-000
Harness assy, wiring no. 2
New Zealand |
36620-86190-000 |
— | ||
|
8
|
8
36620-86290-000
Harness assy, wiring no. 2
Saudi Arabia W/ANALOGUE METER(N/TACHO) |
36620-86290-000 |
— | ||
|
8
|
8
36620-86301-000
Harness assy, wiring no. 2
Saudi Arabia W/ANALOGUE METER(W/TACHO) |
36620-86301-000 |
— | ||
|
8
|
8
36620-86310-000
Harness assy, wiring no. 2
Saudi Arabia:W/DIGITAL METER |
36620-86310-000 |
— | ||
|
9
|
9
36630-86500-000
Harness assy, wiring no. 3
LHD |
36630-86500-000 |
— | ||
|
9
|
9
36630-86510-000
Harness assy, wiring no. 3
LHD:W/POWER WINDOW |
36630-86510-000 |
— | ||
|
9
|
9
36630-86300-000
Harness assy, wiring no. 3
RHD |
36630-86300-000 |
— | ||
|
9
|
9
36630-86310-000
Harness assy, wiring no. 3
RHD:W/POWER WINDOW |
36630-86310-000 |
— | ||
|
10
|
10
36640-86100-000
Harness assy, wiring no. 4
|
36640-86100-000 |
— | ||
|
10
|
10
36640-86300-000
Harness assy, wiring no. 4
, Norway, Sweden, Switzerland, Belgium, 2, 5,,6, Austria, Ireland,Israel:JSA0AA32S00100031~,JSA0AA32F00100202~ |
36640-86300-000 |
— | ||
|
11
|
11
36650-86500-000
Harness assy, wiring no. 5
MT |
36650-86500-000 |
— | ||
|
11
|
11
36650-86520-000
Harness assy, wiring no. 5
Sweden(W/CATALYZER) |
36650-86520-000 |
— | ||
|
12
|
12
36651-82041-000
Bracket, harness no. 5 clamp
MT |
36651-82041-000 |
— | ||
|
13
|
13
36918-82000-000
Grommet, apron hole
|
36918-82000-000 |
— | ||
|
14
|
14
36918-82000-000
Grommet, apron hole
|
36918-82000-000 |
— | ||
|
15
|
15
36930-82000-000
カバー
|
36930-82000-000 |
— | ||
| replacement | |||||
|
15
|
15
36930-82010-000 COVER,HARNESSCover, roof wire |
36930-82010-000 |
from US $1.73 |
||
|
16
|
16
36930-82000-000
カバー
|
36930-82000-000 |
— | ||
| replacement | |||||
|
16
|
16
36930-82010-000 COVER,HARNESSCover, roof wire |
36930-82010-000 |
from US $1.73 |
||
|
17
|
17
09408-00053-000
Clamp, floor harness
|
09408-00053-000 |
— | ||
|
18
|
18
09408-00030-000
Clip
|
09408-00030-000 |
— | ||
| replacement | |||||
|
18
|
18
09403-13409-000 CLAMP |
09403-13409-000 |
US $14 |
||
|
19
|
19
09407-14406-000
クランプ,L:130
|
09407-14406-000 |
— | ||
| replacement | |||||
|
19
|
19
09407-12404-000 CLAMP(L:140) |
09407-12404-000 |
US $2.08 |
||
|
20
|
20
09407-14406-000
クランプ,L:130
|
09407-14406-000 |
— | ||
| replacement | |||||
|
20
|
20
09407-12404-000 CLAMP(L:140) |
09407-12404-000 |
US $2.08 |
||
|
21
|
21
09407-05406-000 CLAMP(L:118) |
09407-05406-000 |
from US $1.06 |
||
|
22
|
22
09407-05406-000 CLAMP(L:118) |
09407-05406-000 |
from US $1.06 |
||
|
23
|
23
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap |
09407-14403-000 |
from US $2.08 |
||
|
24
|
24
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap |
09407-14403-000 |
from US $2.08 |
||
|
25
|
25
09404-06404-000
Clamp, fuel hose
|
09404-06404-000 |
— | ||
| replacements | |||||
|
25
|
25
09404-06434-000
CLAMP(L:80 T:1.0)
|
09404-06434-000 |
— | ||
|
25
|
25
09404-06433-000
CLAMP(L:80)
|
09404-06433-000 |
— | ||
|
25
|
25
09404-06436-000 Clamp(L:80) |
09404-06436-000 |
from US $2.13 |
||
|
25
|
25
09404-06036-000 Clamp(L:80) |
09404-06036-000 |
from US $1.82 |
||
|
26
|
26
03541-05168-000
Screw
|
03541-05168-000 |
— | ||
| replacement | |||||
|
26
|
26
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
27
|
27
09407-14406-000
クランプ,L:130
|
09407-14406-000 |
— | ||
| replacement | |||||
|
27
|
27
09407-12404-000 CLAMP(L:140) |
09407-12404-000 |
US $2.08 |
||
|
28
|
28
09407-14404-000
クランプ
|
09407-14404-000 |
— | ||
| replacement | |||||
|
28
|
28
09403-14310-000
Clamp, floor harness
|
09403-14310-000 |
— | ||
|
29
|
29
09408-00030-000
Clip
|
09408-00030-000 |
— | ||
| replacement | |||||
|
29
|
29
09403-13409-000 CLAMP |
09403-13409-000 |
US $14 |
||
|
30
|
30
09403-19305-000
Clamp
|
09403-19305-000 |
— | ||
|
30
|
30
09403-22301-000
クランプ
Switzerland |
09403-22301-000 |
— | ||
|
31
|
31
09404-06404-000
Clamp, fuel hose
|
09404-06404-000 |
— | ||
| replacements | |||||
|
31
|
31
09404-06434-000
CLAMP(L:80 T:1.0)
|
09404-06434-000 |
— | ||
|
31
|
31
09404-06433-000
CLAMP(L:80)
|
09404-06433-000 |
— | ||
|
31
|
31
09404-06436-000 Clamp(L:80) |
09404-06436-000 |
from US $2.13 |
||
|
31
|
31
09404-06036-000 Clamp(L:80) |
09404-06036-000 |
from US $1.82 |
||
|
32
|
32
09404-06415-000
Clamp, magneto cord (l:95)
|
09404-06415-000 |
— | ||
| replacements | |||||
|
32
|
32
09404-06434-000
CLAMP(L:80 T:1.0)
|
09404-06434-000 |
— | ||
|
32
|
32
09404-06433-000
CLAMP(L:80)
|
09404-06433-000 |
— | ||
|
32
|
32
09404-06436-000 Clamp(L:80) |
09404-06436-000 |
from US $2.13 |
||
|
32
|
32
09404-06036-000 Clamp(L:80) |
09404-06036-000 |
from US $1.82 |
||
|
32
|
32
09404-06405-000
Clamp
Switzerland |
09404-06405-000 |
— | ||
| replacements | |||||
|
32
|
32
09404-06434-000
CLAMP(L:80 T:1.0)
Switzerland |
09404-06434-000 |
— | ||
|
32
|
32
09404-06433-000
CLAMP(L:80)
Switzerland |
09404-06433-000 |
— | ||
|
32
|
32
09404-06436-000 Clamp(L:80)Switzerland |
09404-06436-000 |
from US $2.13 |
||
|
32
|
32
09404-06036-000 Clamp(L:80)Switzerland |
09404-06036-000 |
from US $1.82 |
||
|
33
|
33
09404-08405-000
Clamp, drain tube
|
09404-08405-000 |
— | ||
| replacement | |||||
|
33
|
33
09404-08420-000 CLAMP(L:120 T:1.0) |
09404-08420-000 |
from US $2.08 |
||
|
34
|
34
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap |
09407-14403-000 |
from US $2.08 |
||
|
35
|
35
09407-14406-000
クランプ,L:130
|
09407-14406-000 |
— | ||
| replacement | |||||
|
35
|
35
09407-12404-000 CLAMP(L:140) |
09407-12404-000 |
US $2.08 |
||
|
36
|
36
09407-14405-000
クランプ,L:130
|
09407-14405-000 |
— | ||
| replacement | |||||
|
36
|
36
09407-12404-000 CLAMP(L:140) |
09407-12404-000 |
US $2.08 |
||
|
37
|
37
09407-05403-000 CLAMP,L:88 |
09407-05403-000 |
from US $0.91 |
||
|
38
|
38
36820-86000-000
Wire, room lamp lead
|
36820-86000-000 |
— | ||
|
39
|
39
09308-30005-000 GROMMET |
09308-30005-000 |
US $14.70 |
||
|
40
|
40
09344-08002-000
ホース,8X9X70
|
09344-08002-000 |
— | ||
| replacement | |||||
|
40
|
40
09351-80902-600 PROTECTOR(8X9X600) |
09351-80902-600 |
US $3.28 |
||
|
41
|
41
36840-82010-000
Wire, fuel gauge
|
36840-82010-000 |
— | ||
| replacement | |||||
|
41
|
41
36840-60B50-000 WIRE,FUEL GAUGE |
36840-60B50-000 |
US $11.41 |
||
|
42
|
42
36930-82000-000
カバー
|
36930-82000-000 |
— | ||
| replacement | |||||
|
42
|
42
36930-82010-000 COVER,HARNESSCover, roof wire |
36930-82010-000 |
from US $1.73 |
||
|
43
|
43
36930-82000-000
カバー
|
36930-82000-000 |
— | ||
| replacement | |||||
|
43
|
43
36930-82010-000 COVER,HARNESSCover, roof wire |
36930-82010-000 |
from US $1.73 |
||
|
44
|
44
36895-82000-000
Wire, oil pressure switch
|
36895-82000-000 |
— | ||
| replacement | |||||
|
44
|
44
36895-60B00-000 WIRE,OIL PRESS SW |
36895-60B00-000 |
US $16.80 |
||
|
45
|
45
09404-10401-000
Clamp (l:52)
|
09404-10401-000 |
— | ||
| replacements | |||||
|
45
|
45
09404-10204-000
CLAMP(L:62)
|
09404-10204-000 |
— | ||
|
45
|
45
09404-10206-000 Clamp |
09404-10206-000 |
from US $3.21 |
||
|
46
|
46
36890-82000-000
ワイヤ,リヤデフォッガリード
W/REAR DEFOGGER |
36890-82000-000 |
— | ||
| replacement | |||||
|
46
|
46
36890-70C00-000 WIRE,RR DF LEADW/REAR DEFOGGER |
36890-70C00-000 |
US $3.28 |
||
|
47
|
47
09308-03005-000 GROMMETW/REAR DEFOGGER |
09308-03005-000 |
US $12.90 |
||
|
48
|
48
09344-08002-000
ホース,8X9X70
W/REAR DEFOGGER |
09344-08002-000 |
— | ||
| replacement | |||||
|
48
|
48
09351-80902-600 PROTECTOR(8X9X600)W/REAR DEFOGGER |
09351-80902-600 |
US $3.28 |
||
|
49
|
49
67627-70000-000
シール,ホール
N/REAR DEFOGGER |
67627-70000-000 |
— | ||
| replacement | |||||
|
49
|
49
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole N/REAR DEFOGGER |
84761-50X50-000 |
US $6.72 |
||
|
50
|
50
09250-25008-000 CAP(OD:31)GL:N/POWER WINDOW |
09250-25008-000 |
US $13.20 |
||
|
51
|
51
09250-25008-000 CAP(OD:31)GL:N/POWER WINDOW |
09250-25008-000 |
US $13.20 |
||
|
52
|
52
36757-82100-000 FILM,DR WIRE HOLE |
36757-82100-000 |
US $1.03 |
||
|
53
|
53
09250-20011-000
キャップ
GL:N/POWER WINDOW |
09250-20011-000 |
— | ||
| replacement | |||||
|
53
|
53
09250-20015-000 CAP(OD:28.5)Cap, air con harness GL:N/POWER WINDOW |
09250-20015-000 |
from US $0.79 |
||
|
54
|
54
36875-82000-000
Wire, rear fog lamp lead
, Norway, Sweden, Switzerland, Belgium, 2, 5,,6, Austria, Israel, Ireland |
36875-82000-000 |
— | ||
|
55
|
55
09407-05404-000
クランプ
, Norway, Sweden, Switzerland, Belgium, 2, 5,,6, Austria, Israel, Ireland |
09407-05404-000 |
— | ||
| replacement | |||||
|
55
|
55
09407-05406-000 CLAMP(L:118), Norway, Sweden, Switzerland, Belgium, 2, 5,,6, Austria, Israel, Ireland |
09407-05406-000 |
from US $1.06 |
||
|
56
|
56
09250-20011-000
キャップ
N/REAR FOG LAMP |
09250-20011-000 |
— | ||
| replacement | |||||
|
56
|
56
09250-20015-000 CAP(OD:28.5)Cap, air con harness N/REAR FOG LAMP |
09250-20015-000 |
from US $0.79 |
||
|
57
|
57
36845-86000-000
Harness assy,back door
|
36845-86000-000 |
— | ||
|
57
|
57
36845-86100-000
Harness assy, back door
New Zealand |
36845-86100-000 |
— | ||
|
58
|
58
09407-14404-000
クランプ
|
09407-14404-000 |
— | ||
| replacement | |||||
|
58
|
58
09403-14310-000
Clamp, floor harness
|
09403-14310-000 |
— | ||
|
59
|
59
36756-82012-000
Wire, power window front rh
GLX |
36756-82012-000 |
— | ||
|
60
|
60
36756-82101-000
Wire, power window front lh
GLX |
36756-82101-000 |
— | ||
|
61
|
61
09407-05403-000 CLAMP,L:88GLX |
09407-05403-000 |
from US $0.91 |
||
|
62
|
62
36751-82012-000
Wire, power window rear
GLX |
36751-82012-000 |
— | ||
|
63
|
63
09408-00027-000
Clamp, harness
GLX |
09408-00027-000 |
— | ||
| replacement | |||||
|
63
|
63
09403-09403-000 CLAMPGLX |
09403-09403-000 |
US $13.20 |
||
|
64
|
64
09308-30005-000 GROMMETGLX |
09308-30005-000 |
US $14.70 |
||
|
65
|
65
09408-00061-000
Clamp, decomp read
GLX |
09408-00061-000 |
— | ||
| replacement | |||||
|
65
|
65
09403-08405-000 CLAMPClamp, decomp lead GLX |
09403-08405-000 |
from US $3.47 |
||
|
66
|
66
36940-84000-000
Wire, mirror switch
GLX |
36940-84000-000 |
— | ||
|
67
|
67
36755-82100-000
Film, door wire hole
New Zealand |
36755-82100-000 |
— | ||
|
69
|
69
39605-82000-000 WIRE,ILLUM CONT JOINT |
39605-82000-000 |
US $3.31 |
||
|
71
|
71
36830-86000-000
Wire, joint dim-dip
Ireland:N/DIM-DIP |
36830-86000-000 |
— | ||
