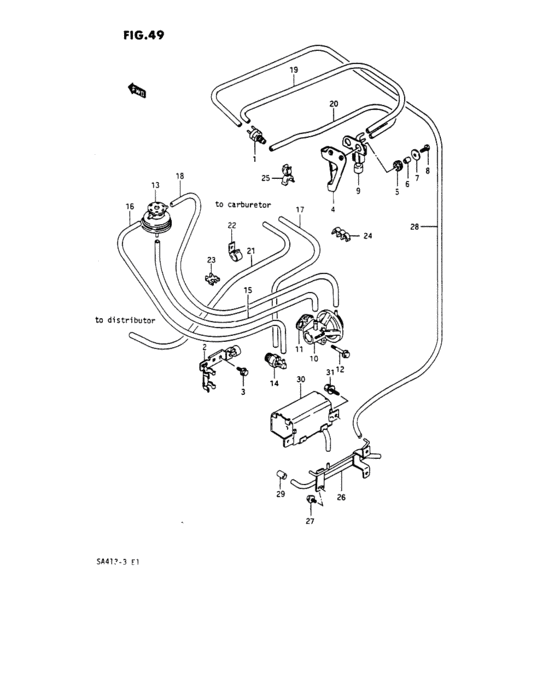

Emission control system (AT:Germany, Holland W/CATALYZER) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- HIGH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18133-85550-000 FILTER,GAS |
18133-85550-000 |
US $28 |
||
|
2
|
2
18432-82010-000
Clamp, modulator hose
|
18432-82010-000 |
— | ||
|
3
|
3
01517-06103-000
ボルト
|
01517-06103-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
3
|
3
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
4
|
4
18451-82630-000
Mount, emission device
|
18451-82630-000 |
— | ||
|
5
|
5
09308-10004-000 GROMMET |
09308-10004-000 |
US $1.98 |
||
|
6
|
6
09180-06106-000 SPACER(6.8X10X7) |
09180-06106-000 |
from US $2.08 |
||
|
7
|
7
09160-06086-000
Washer, 6.5x20x
|
09160-06086-000 |
— | ||
| replacement | |||||
|
7
|
7
09160-06077-000 WASHER(6.5X20X1.2)Washer (6.5x20x1.2) |
09160-06077-000 |
from US $0.96 |
||
|
8
|
8
02112-06143-000
Screw
|
02112-06143-000 |
— | ||
| replacement | |||||
|
8
|
8
02112-0616B-000 SCREW |
02112-0616B-000 |
from US $0.80 |
||
|
9
|
9
18550-82021-000
VALVE ASSY,3WAY SOLENOID
|
18550-82021-000 |
— | ||
|
10
|
10
18111-82041-000
バルブ,EGR
|
18111-82041-000 |
— | ||
| replacement | |||||
|
10
|
10
18111-8204V-000
VALVE,EGR
|
18111-8204V-000 |
— | ||
|
11
|
11
18529-78101-000
ガスケット,EGRバルブ
|
18529-78101-000 |
— | ||
| replacement | |||||
|
11
|
11
18529-60A00-000 GASKET,EGR VALVE |
18529-60A00-000 |
US $1.60 |
||
|
12
|
12
01537-06453-000
ボルト
|
01537-06453-000 |
— | ||
| replacement | |||||
|
12
|
12
01550-0645A-000 Bolt |
01550-0645A-000 |
from US $0.96 |
||
|
13
|
13
18112-82000-000
Modulator assy, egr
|
18112-82000-000 |
— | ||
|
14
|
14
18123-82020-000
Valve, bvs
|
18123-82020-000 |
— | ||
| replacement | |||||
|
14
|
14
18122-80C01-000 VALVE,BVS |
18122-80C01-000 |
US $44.90 |
||
|
15
|
15
09343-05257-000
Hose, modulator
|
09343-05257-000 |
— | ||
| replacement | |||||
|
15
|
15
09352-50111-600 HOSE(5X11X600)Hose, water air bleed (5x11x600) |
09352-50111-600 |
from US $15.81 |
||
|
16
|
16
09343-03121-000
ホース,#18/3.5X7.5X280
|
09343-03121-000 |
— | ||
| replacements | |||||
|
16
|
16
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
|
16
|
16
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
17
|
17
09343-03095-000
ホース,#25/3.5X7.5X155
|
09343-03095-000 |
— | ||
| replacements | |||||
|
17
|
17
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
|
17
|
17
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
18
|
18
09343-03120-000
Hose, vacuum
|
09343-03120-000 |
— | ||
| replacements | |||||
|
18
|
18
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
|
18
|
18
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
19
|
19
09343-03048-000
ホース,#17/3.5X7.5X115
|
09343-03048-000 |
— | ||
| replacements | |||||
|
19
|
19
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
|
19
|
19
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
20
|
20
09343-03121-000
ホース,#18/3.5X7.5X280
|
09343-03121-000 |
— | ||
| replacements | |||||
|
20
|
20
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
|
20
|
20
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
21
|
21
09343-03106-000
Hose, vacuum
|
09343-03106-000 |
— | ||
| replacements | |||||
|
21
|
21
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
|
21
|
21
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
22
|
22
09403-09314-000
Clamp, hose
|
09403-09314-000 |
— | ||
| replacement | |||||
|
22
|
22
09403-09315-000 CLAMP |
09403-09315-000 |
US $19.10 |
||
|
23
|
23
09408-00042-000
CLIP
|
09408-00042-000 |
— | ||
|
24
|
24
09408-00034-000
クリップ
|
09408-00034-000 |
— | ||
| replacement | |||||
|
24
|
24
09408-00035-000 CLIPClamp |
09408-00035-000 |
US $17.70 |
||
|
25
|
25
09408-00056-000 CLIP |
09408-00056-000 |
from US $4.22 |
||
|
26
|
26
18340-82611-000
Pipe, vacuum
|
18340-82611-000 |
— | ||
|
27
|
27
01517-06103-000
ボルト
|
01517-06103-000 |
— | ||
| replacements | |||||
|
27
|
27
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
27
|
27
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
28
|
28
09343-03107-000
ホース,#23/3.5X7.5X550
|
09343-03107-000 |
— | ||
| replacements | |||||
|
28
|
28
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
|
28
|
28
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
29
|
29
09250-04003-000 PLUG(OD:8)Plug (od:8) N/AIR CON |
09250-04003-000 |
US $1.12 |
||
| replacement | |||||
|
29
|
29
07130-0510B-000 BOLTBolt, sensor N/AIR CON |
07130-0510B-000 |
from US $0.96 |
||
|
30
|
30
18600-82340-000
Unit, at switch
|
18600-82340-000 |
— | ||
| replacement | |||||
|
30
|
30
18600-82320-000
Switch unit,a.t.m
|
18600-82320-000 |
— | ||
|
31
|
31
09115-06001-000
Bolt, lh
|
09115-06001-000 |
— | ||
| replacement | |||||
|
31
|
31
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
