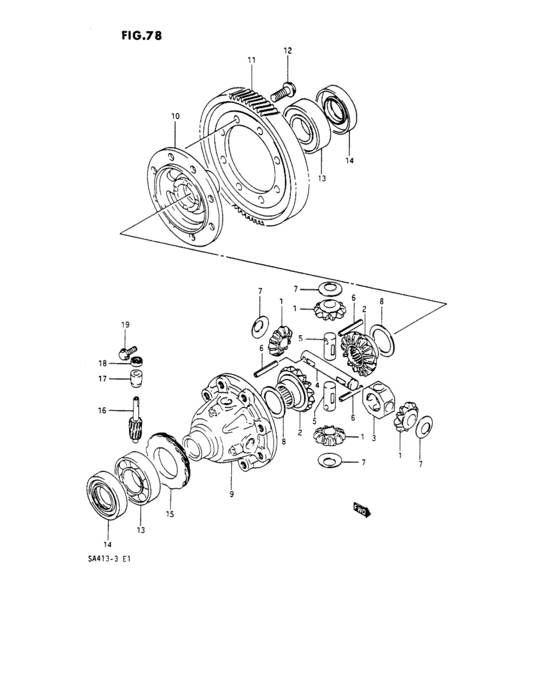

Differential gear and speedometer gear (TWIN CAM) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Africa
- transmission
- MT
- grade
- GTI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27331-82000-000
ピニオン,ディファレンシャル
|
27331-82000-000 |
— | ||
| replacement | |||||
|
1
|
1
27331-78FJ1-000 PINION,DIFFERENTIAL |
27331-78FJ1-000 |
from US $26.60 |
||
|
2
|
2
27341-82000-000
ギヤ,ディファレンシャル
|
27341-82000-000 |
— | ||
| replacement | |||||
|
2
|
2
27341-76G12-000 GEAR,DIFF |
27341-76G12-000 |
US $64.77 |
||
|
3
|
3
27356-86080-000
Joint, diff side pinion
|
27356-86080-000 |
— | ||
| replacement | |||||
|
3
|
3
27356-86081-000 JOINT,DIFF PINION SHAFT |
27356-86081-000 |
from US $25.29 |
||
|
4
|
4
27351-79401-000
シャフト,ピニオン
|
27351-79401-000 |
— | ||
| replacement | |||||
|
4
|
4
27351-62B00-000 SHAFT,DIFF SIDE PINION |
27351-62B00-000 |
from US $13.97 |
||
|
5
|
5
27355-86080-000
シャフト,ピニオン,NO.2
|
27355-86080-000 |
— | ||
|
6
|
6
09205-05007-000 PIN,SPRING(5X36) |
09205-05007-000 |
US $1.76 |
||
|
7
|
7
09164-15003-000 WASHER |
09164-15003-000 |
from US $0.95 |
||
|
8
|
8
09160-35006-000 WASHER(35X46X0.9) |
09160-35006-000 |
from US $1.60 |
||
|
8
|
8
09160-35008-000 WASHER(35X46X0.95)Washer (35x46x0.95) |
09160-35008-000 |
from US $6.70 |
||
|
8
|
8
09160-35002-000 WASHER(35X46X1) |
09160-35002-000 |
from US $1.40 |
||
|
8
|
8
09160-35009-000 WASHER(35X46X1.05) |
09160-35009-000 |
from US $6.70 |
||
|
8
|
8
09160-35003-000 WASHER(35X46X1.1) |
09160-35003-000 |
from US $1.96 |
||
|
8
|
8
09160-35010-000 WASHER(35X46X1.15) |
09160-35010-000 |
from US $6.49 |
||
|
8
|
8
09160-35004-000 WASHER(35X46X1.2) |
09160-35004-000 |
from US $1.78 |
||
|
9
|
9
27421-86080-000
Case, diff rh
|
27421-86080-000 |
— | ||
|
10
|
10
27411-86080-000
Case, diff lh
|
27411-86080-000 |
— | ||
|
11
|
11
27511-82000-000
Gear, doff ring
NT:78 |
27511-82000-000 |
— | ||
| replacements | |||||
|
11
|
11
24131-64B51-000 SHAFT,T/M COUNTERNT:78 |
24131-64B51-000 |
US $263.12 |
||
|
11
|
11
27511-83E00-000 GEAR,FINALNT:78 |
27511-83E00-000 |
US $217.12 |
||
|
11
|
11
27511-53B00-000
Gear, final
NT:78 AA33S-105754~ AB33S-101228~,JSA0AA33S00108946~,JSA0AA33F00101147~ |
27511-53B00-000 |
— | ||
| replacements | |||||
|
11
|
11
24131-64B51-000 SHAFT,T/M COUNTERNT:78 AA33S-105754~ AB33S-101228~,JSA0AA33S00108946~,JSA0AA33F00101147~ |
24131-64B51-000 |
US $263.12 |
||
|
11
|
11
27511-83E00-000 GEAR,FINALNT:78 AA33S-105754~ AB33S-101228~,JSA0AA33S00108946~,JSA0AA33F00101147~ |
27511-83E00-000 |
US $217.12 |
||
|
12
|
12
09103-10014-000 BOLT(10X27) |
09103-10014-000 |
US $61.50 |
||
|
13
|
13
08143-62077-000 BEARING |
08143-62077-000 |
US $23.57 |
||
|
14
|
14
09283-35025-000
Seal, oil
|
09283-35025-000 |
— | ||
| replacement | |||||
|
14
|
14
09283-35037-000 SEAL,OIL(35X62X9.5) |
09283-35037-000 |
from US $8.46 |
||
|
15
|
15
26121-82000-000
ギヤ,スピードメータドライブ
NT:14 |
26121-82000-000 |
— | ||
|
16
|
16
26131-82000-000
Gear, speedometer driven
NT:13 |
26131-82000-000 |
— | ||
|
17
|
17
09300-08017-000 BUSH(8X16X18) |
09300-08017-000 |
US $25.80 |
||
|
18
|
18
09282-08001-000 SEAL,OIL(8X16X5) |
09282-08001-000 |
US $2.31 |
||
|
19
|
19
01517-06163-000
Bolt
|
01517-06163-000 |
— | ||
| replacements | |||||
|
19
|
19
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
19
|
19
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
