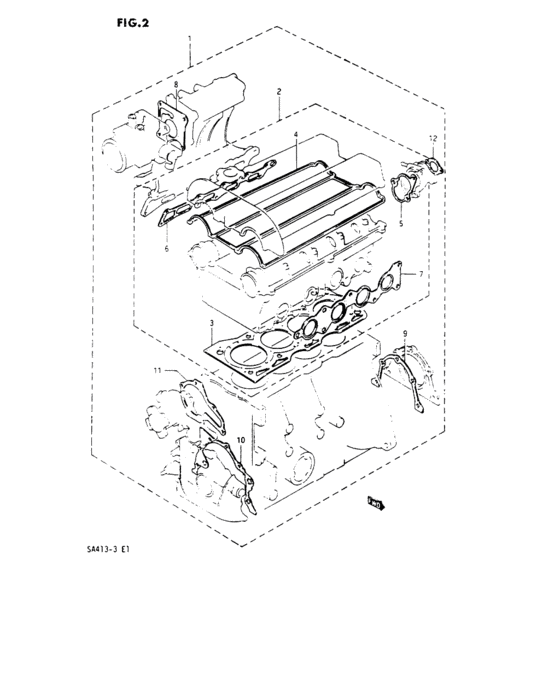

Engine gasket set (TWIN CAM) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Africa
- transmission
- MT
- grade
- GTI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11400-86822-000
Gasket set, engine
<-11400-86821 |
11400-86822-000 |
— | ||
|
1
|
1
11400-86841-H17
Gasket set, engine
Sweden |
11400-86841-H17 |
— | ||
|
2
|
2
11100-86822-000
Gasket set, cylinder head
<-11100-86821 |
11100-86822-000 |
— | ||
|
2
|
2
11100-86841-H17
Gasket set, cylinder head
Sweden |
11100-86841-H17 |
— | ||
|
3
|
3
11141-86501-000
Gasket, cylinder head
|
11141-86501-000 |
— | ||
| replacement | |||||
|
3
|
3
11141-86502-000 GASKET,CYL HEADGasket, cylinder head |
11141-86502-000 |
from US $50.33 |
||
|
4
|
4
11189-86500-000
GASKET,CYL HEAD COVER
|
11189-86500-000 |
— | ||
|
5
|
5
17699-86501-000
Gasket, thermostat case
<-17699-86500 |
17699-86501-000 |
— | ||
| replacement | |||||
|
5
|
5
17699-64B00-000
GASKET,THERMOSTAT CASE
<-17699-86500 |
17699-64B00-000 |
— | ||
|
5
|
5
17699-86501-H17
Gasket, thermostat case
Sweden |
17699-86501-H17 |
— | ||
| replacement | |||||
|
5
|
5
17699-64B00-000
GASKET,THERMOSTAT CASE
Sweden |
17699-64B00-000 |
— | ||
|
6
|
6
13119-86500-000
Gasket, intake manifold
|
13119-86500-000 |
— | ||
| replacement | |||||
|
6
|
6
13119-64B00-000
GASKET,INTK MANF
|
13119-64B00-000 |
— | ||
|
6
|
6
13119-86500-H17
Gasket, intake manifold
Sweden |
13119-86500-H17 |
— | ||
| replacement | |||||
|
6
|
6
13119-64B00-000
GASKET,INTK MANF
Sweden |
13119-64B00-000 |
— | ||
|
7
|
7
14141-86500-000
Gasket, exhaust manifold
|
14141-86500-000 |
— | ||
| replacement | |||||
|
7
|
7
14141-64B00-000
GASKET,EXH MANF
|
14141-64B00-000 |
— | ||
|
7
|
7
14141-64B00-000
GASKET,EXH MANF
Sweden |
14141-64B00-000 |
— | ||
|
8
|
8
13421-86500-000
Gasket, throttle body
|
13421-86500-000 |
— | ||
| replacement | |||||
|
8
|
8
13421-86500-H17
Gasket,throttle body
|
13421-86500-H17 |
— | ||
|
9
|
9
11349-82000-000
Joint
|
11349-82000-000 |
— | ||
| replacement | |||||
|
9
|
9
11349-60A01-000 GASKET,OIL SEAL HSGGasket, oil seal housing |
11349-60A01-000 |
from US $6.05 |
||
|
9
|
9
11349-60A00-000
ガスケット,オイルシールハウジング
Sweden |
11349-60A00-000 |
— | ||
| replacement | |||||
|
9
|
9
11349-60A01-000 GASKET,OIL SEAL HSGGasket, oil seal housing Sweden |
11349-60A01-000 |
from US $6.05 |
||
|
10
|
10
16119-82000-000
Joint
|
16119-82000-000 |
— | ||
| replacement | |||||
|
10
|
10
16119-82012-000 GASKET,OIL PUMP |
16119-82012-000 |
US $23.20 |
||
|
10
|
10
16119-82000-H17
Gasket, oil pump case
Sweden |
16119-82000-H17 |
— | ||
| replacement | |||||
|
10
|
10
16119-82012-000 GASKET,OIL PUMPSweden |
16119-82012-000 |
US $23.20 |
||
|
11
|
11
17431-82000-000
Joint de pompe
|
17431-82000-000 |
— | ||
| replacement | |||||
|
11
|
11
17431-60A00-000 GASKET,WATER PUMP |
17431-60A00-000 |
from US $3.80 |
||
|
11
|
11
17431-60A00-000 GASKET,WATER PUMPSweden |
17431-60A00-000 |
from US $3.80 |
||
|
12
|
12
17569-82001-000
ガスケット,サーモキャップ
|
17569-82001-000 |
— | ||
| replacement | |||||
|
12
|
12
17569-82001-H17 GASKET,WTR THERMO CAP |
17569-82001-H17 |
US $2.24 |
||
|
12
|
12
17569-82001-H17 GASKET,WTR THERMO CAPSweden |
17569-82001-H17 |
US $2.24 |
||
