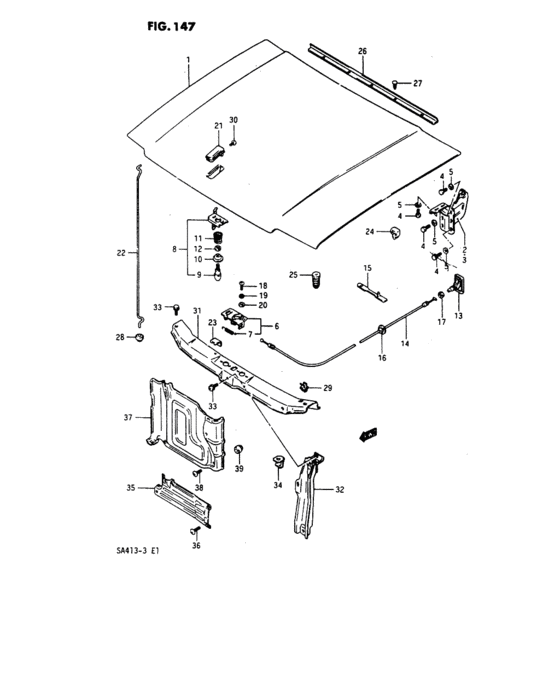

Engine hood and hood lock (ENGINE HOOD AND HOOD LOCK) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Africa
- transmission
- MT
- grade
- GTI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57300-82010-000
Panel, front food
LHD |
57300-82010-000 |
— | ||
| replacement | |||||
|
1
|
1
57300-82011-000
PANEL,FRONT HOOD
LHD |
57300-82011-000 |
— | ||
|
1
|
1
57300-82030-000
Panel, front hood
RHD |
57300-82030-000 |
— | ||
| replacement | |||||
|
1
|
1
57300-82011-000
PANEL,FRONT HOOD
RHD |
57300-82011-000 |
— | ||
|
2
|
2
57410-82000-000 HINGE,FR HOOD,R |
57410-82000-000 |
US $18.07 |
||
|
3
|
3
57420-82000-000
HINGE,FR HOOD,L
|
57420-82000-000 |
— | ||
|
4
|
4
09128-06031-000
スクリュ
|
09128-06031-000 |
— | ||
| replacement | |||||
|
4
|
4
09128-06044-000 SCREW(6X10)Screw, oil level (6x10) |
09128-06044-000 |
from US $1.22 |
||
|
5
|
5
08322-21067-000
Washer
|
08322-21067-000 |
— | ||
| replacement | |||||
|
5
|
5
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.76 |
||
|
6
|
6
82110-82001-000 LATCH,HOOD<-82110-82000 |
82110-82001-000 |
US $24 |
||
|
7
|
7
82113-82001-000 SPRING,HOOD LATCH<-82113-82000 |
82113-82001-000 |
US $2.50 |
||
|
8
|
8
82120-82012-000
STRIKER,HOOD LATCH,L
LHD, <-82120-82011 |
82120-82012-000 |
— | ||
|
8
|
8
82120-82002-000 STRIKER,HOOD LATCH,RRHD, <-82120-82001 |
82120-82002-000 |
US $22.08 |
||
|
9
|
9
82125-82002-000
Shaft, main latch striker
<-82125-82001 |
82125-82002-000 |
— | ||
|
10
|
10
82126-82001-000
カバー,ストライカスプリング
|
82126-82001-000 |
— | ||
| replacement | |||||
|
10
|
10
82126-82002-000
Cover, striker spring
|
82126-82002-000 |
— | ||
|
11
|
11
82127-82002-000
Spring, main latch striker
<-82127-82001 |
82127-82002-000 |
— | ||
|
12
|
12
08310-12103-000 Nut |
08310-12103-000 |
US $0.63 |
||
| replacements | |||||
|
12
|
12
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
12
|
12
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
13
|
13
82150-82000-4MM
Lever, latch release
|
82150-82000-4MM |
— | ||
| replacement | |||||
|
13
|
13
82150-60D00-4MM LEVER,HOOD LATCH RLSE |
82150-60D00-4MM |
US $20.53 |
||
|
13
|
13
82150-82000-4NM
Lever, latch release
|
82150-82000-4NM |
— | ||
| replacement | |||||
|
13
|
13
82150-60D00-5PK LEVER,HOOD LATCH RLSE |
82150-60D00-5PK |
US $22.05 |
||
|
13
|
13
82150-82000-281
レバー,フードラッチレリーズ(ブラック)
GT, GTI, GXI |
82150-82000-281 |
— | ||
| replacement | |||||
|
13
|
13
82150-60D00-5PK LEVER,HOOD LATCH RLSEGT, GTI, GXI |
82150-60D00-5PK |
US $22.05 |
||
|
14
|
14
82160-82000-000 CABLE,HOOD LATCH RELEASE |
82160-82000-000 |
US $42.32 |
||
|
15
|
15
09407-05403-000 CLAMP,L:88 |
09407-05403-000 |
from US $0.91 |
||
|
16
|
16
82191-82000-000
グロメット,ラッチレリーズケーブル
|
82191-82000-000 |
— | ||
| replacement | |||||
|
16
|
16
82191-50E00-000 GROMMET,LATCH RELEASE CABLE |
82191-50E00-000 |
US $3.52 |
||
|
17
|
17
09159-14014-000 NUT |
09159-14014-000 |
from US $6.26 |
||
|
18
|
18
02112-06123-000
Screw, breather cover
|
02112-06123-000 |
— | ||
| replacements | |||||
|
18
|
18
02112-0612B-000 SCREWScrew, oil guide plate |
02112-0612B-000 |
from US $0.76 |
||
|
18
|
18
02112-0612A-000 SCREW |
02112-0612A-000 |
from US $0.76 |
||
|
19
|
19
08321-21067-000
Lock washer
|
08321-21067-000 |
— | ||
| replacement | |||||
|
19
|
19
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.76 |
||
|
20
|
20
08322-21067-000
Washer
|
08322-21067-000 |
— | ||
| replacement | |||||
|
20
|
20
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.76 |
||
|
21
|
21
72350-82000-000
OPENER,HOOD LATCH
|
72350-82000-000 |
— | ||
|
21
|
21
72350-86000-26U
Opener, hood latch
GLS:Finland, Norway, Sweden, Switzerland, Germany, Austria |
72350-86000-26U |
— | ||
| replacement | |||||
|
21
|
21
72350-82000-000
OPENER,HOOD LATCH
GLS:Finland, Norway, Sweden, Switzerland, Germany, Austria |
72350-82000-000 |
— | ||
|
22
|
22
72361-82001-000
Prop, front food
<-72361-82000 |
72361-82001-000 |
— | ||
|
23
|
23
72362-82001-000
Protector,hood rod
|
72362-82001-000 |
— | ||
|
24
|
24
72371-82000-000
Cushion,front hood rear
|
72371-82000-000 |
— | ||
|
25
|
25
72372-82000-000 CUSHION,BACK DR SIDECushion |
72372-82000-000 |
from US $2.12 |
||
|
26
|
26
72341-82001-000
Seal,hood rear
|
72341-82001-000 |
— | ||
|
27
|
27
09229-04019-000 RIVETRivet, lower cover 1 |
09229-04019-000 |
US $14.40 |
||
|
28
|
28
72365-82001-000
GROMMET,FR HOOD PROP
|
72365-82001-000 |
— | ||
|
29
|
29
09403-06311-000
CLAMP
|
09403-06311-000 |
— | ||
|
30
|
30
03241-05123-000
Screw
|
03241-05123-000 |
— | ||
| replacement | |||||
|
30
|
30
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
31
|
31
57210-86001-000 MEMBER,HOOD LOCK<-57210-86000 |
57210-86001-000 |
US $44.53 |
||
|
32
|
32
57220-86000-000
BRACE,HOOD LOCK MEMBER
|
57220-86000-000 |
— | ||
|
33
|
33
09128-06043-000
Screw
|
09128-06043-000 |
— | ||
| replacement | |||||
|
33
|
33
09128-06058-000 SCREW(6X10) |
09128-06058-000 |
from US $1.28 |
||
|
34
|
34
57231-86000-000
Bracket, radiator grille
~JSA0AA53S00102122 ~AA53S-100563,~JSA0AA33S100101969 ~AA33S-103572,~JSA0AA53F00102202 ~AB53S-102488,~JSA0AA33F00100358 ~AB33S-100839 |
57231-86000-000 |
— | ||
|
35
|
35
72531-86000-000
COVER,PLUG
|
72531-86000-000 |
— | ||
|
36
|
36
01517-06163-000
Bolt
|
01517-06163-000 |
— | ||
| replacements | |||||
|
36
|
36
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
36
|
36
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
|
37
|
37
72531-86010-000
Cover, engine front
, Finland, Norway, Sweden, Switzerland, Belgium, 2,,5, 6, Austria, Ireland |
72531-86010-000 |
— | ||
|
38
|
38
01517-06163-000
Bolt
, Finland, Norway, Sweden, Switzerland, Belgium, 2,,5, 6, Austria, Ireland |
01517-06163-000 |
— | ||
| replacements | |||||
|
38
|
38
01550-0616B-000 BOLT, Finland, Norway, Sweden, Switzerland, Belgium, 2,,5, 6, Austria, Ireland |
01550-0616B-000 |
from US $0.76 |
||
|
38
|
38
01550-0616A-000 BOLT, Finland, Norway, Sweden, Switzerland, Belgium, 2,,5, 6, Austria, Ireland |
01550-0616A-000 |
from US $0.76 |
||
|
39
|
39
09148-06007-000 NUT |
09148-06007-000 |
from US $0.86 |
||
