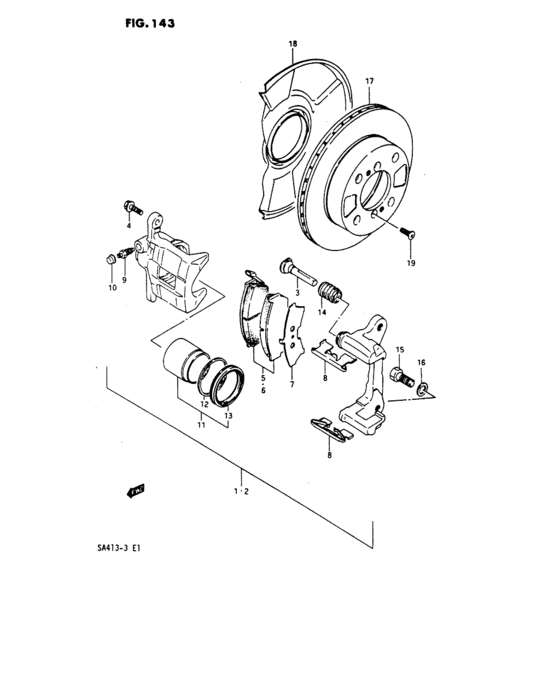

Front brake (GT, GTI, GXI) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Africa
- transmission
- MT
- grade
- GTI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55101-86030-000
Caliper assy, front brake rh
|
55101-86030-000 |
— | ||
|
1
|
1
55101-86050-000
Caliper assy, front brake rh
Sweden:JSA0AA33S00107666~,JSA0AA33F00101135~ Germany, Denmark:,JSA0AA33S00109579~,JSA0AA33F00101148~ |
55101-86050-000 |
— | ||
|
2
|
2
55102-86030-000
Caliper assy, front brake lh
|
55102-86030-000 |
— | ||
|
2
|
2
55102-86050-000
Caliper assy, front brake lh
Sweden:JSA0AA33S00107666~,JSA0AA33F00101135~ Germany, Denmark:,JSA0AA33S00109579~,JSA0AA33F00101148~ |
55102-86050-000 |
— | ||
|
3
|
3
55191-78450-000 PIN |
55191-78450-000 |
US $12.42 |
||
|
4
|
4
55206-78451-000
Bolt, pin
|
55206-78451-000 |
— | ||
| replacement | |||||
|
4
|
4
55206-78452-000 BOLT,PIN |
55206-78452-000 |
US $4.77 |
||
|
5
|
5
55200-86810-000
Pad set, disc brake rh
|
55200-86810-000 |
— | ||
|
5
|
5
55200-86820-000
Pad set, disc brake rh
Sweden:JSA0AA33S00107666~,JSA0AA33F00101135~ Germany, Denmark:,JSA0AA33S00109579~,JSA0AA33F00101148~ |
55200-86820-000 |
— | ||
|
6
|
6
55300-86810-000
Pad set, disc brake lh
|
55300-86810-000 |
— | ||
|
6
|
6
55300-86820-000
Pad set, disc brake lh
Sweden, JSA0AA33S00107666~,JSA0AA33F00101135~ Germany, Denmark:,JSA0AA33S00109579~,JSA0AA33F00101148~ |
55300-86820-000 |
— | ||
|
7
|
7
55226-86030-000
Shim, anti-noise
|
55226-86030-000 |
— | ||
|
8
|
8
55234-86030-000 SPRING,PAD |
55234-86030-000 |
US $9.28 |
||
|
9
|
9
55151-78450-000
プラグ,ブリーダ
|
55151-78450-000 |
— | ||
| replacement | |||||
|
9
|
9
55151-78451-000 PLUG,BLEEDER |
55151-78451-000 |
from US $3.94 |
||
|
10
|
10
55156-66310-000 CAP,BLEEDER PLUGCap, bleeder plug |
55156-66310-000 |
from US $1.98 |
||
|
11
|
11
55100-78811-000
ピストン/カップセット
|
55100-78811-000 |
— | ||
| replacement | |||||
|
11
|
11
55840-76G01-000 PISTON / SEAL SET |
55840-76G01-000 |
US $23.56 |
||
|
12
|
12
55136-78450-000
シール,ピストン
|
55136-78450-000 |
— | ||
| replacement | |||||
|
12
|
12
55830-76G01-000 SEAL SET,PISTON |
55830-76G01-000 |
US $11.55 |
||
|
13
|
13
55141-78450-000
ブーツ,ピストン
|
55141-78450-000 |
— | ||
|
14
|
14
55201-78450-000 BOOT,PIN |
55201-78450-000 |
US $2.31 |
||
|
15
|
15
09100-12118-000 BOLT(12X27) |
09100-12118-000 |
US $28.30 |
||
|
16
|
16
08321-31123-000
ロックワッシャ
|
08321-31123-000 |
— | ||
| replacement | |||||
|
16
|
16
08321-0112A-000 WASHER,LOCK |
08321-0112A-000 |
from US $0.76 |
||
|
17
|
17
55511-86030-000
Disc, front brake
|
55511-86030-000 |
— | ||
|
18
|
18
55521-86030-000
Cover, brake disc dust
|
55521-86030-000 |
— | ||
|
19
|
19
02122-06163-000
Screw
|
02122-06163-000 |
— | ||
| replacements | |||||
|
19
|
19
02122-0616B-000 SCREWScrew, intake pipe |
02122-0616B-000 |
from US $0.80 |
||
|
19
|
19
02122-0616A-000 SCREW |
02122-0616A-000 |
from US $0.76 |
||
