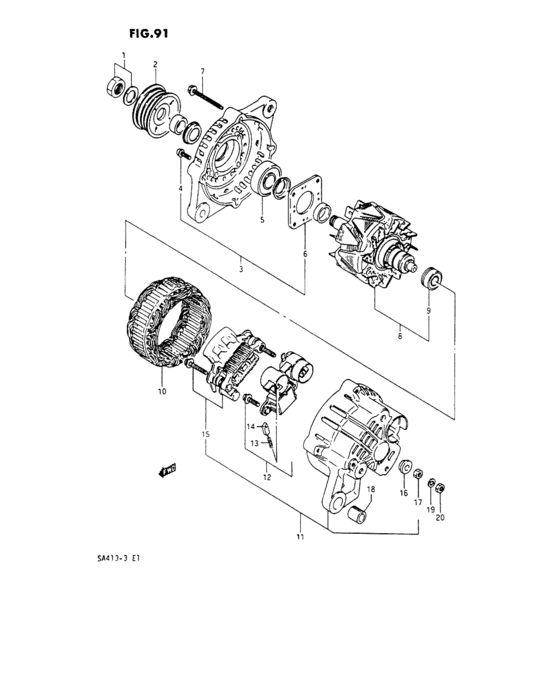

Generator (GTI) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Africa
- transmission
- MT
- grade
- GTI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
31400-86521-000
Generator assy
<-31400-86520 |
31400-86521-000 |
— | ||
| replacements | |||||
|
|
31400-60A13-000
GENERATOR ASSY
<-31400-86520 |
31400-60A13-000 |
— | ||
|
|
31400-60A14-000 Generator Assy<-31400-86520 |
31400-60A14-000 |
US $693.44 |
||
|
1
|
1
31775-70030-000
ナットアッシ
|
31775-70030-000 |
— | ||
| replacements | |||||
|
1
|
1
31775-50F20-000 NUT |
31775-50F20-000 |
US $2.72 |
||
|
1
|
1
31775-60C10-000 NUT,PULLEY |
31775-60C10-000 |
US $4.31 |
||
|
2
|
2
31171-86520-000
PULLEY
|
31171-86520-000 |
— | ||
|
3
|
3
31580-86520-000
Bracket assy, front
|
31580-86520-000 |
— | ||
|
4
|
4
31586-86520-000 SCREW SET |
31586-86520-000 |
US $5.30 |
||
|
5
|
5
31582-82131-000
ベアリング
|
31582-82131-000 |
— | ||
|
6
|
6
31585-86520-000
Retainer, bearing
|
31585-86520-000 |
— | ||
|
7
|
7
31651-86520-000 SCREW SET |
31651-86520-000 |
US $5.78 |
||
|
8
|
8
31710-86520-000
Rotor assy
|
31710-86520-000 |
— | ||
|
9
|
9
31612-86520-000
Bearing
|
31612-86520-000 |
— | ||
| replacement | |||||
|
9
|
9
31612-60A11-000 BEARING,REAR |
31612-60A11-000 |
US $24 |
||
|
10
|
10
31410-82130-000
ステータアッシ
|
31410-82130-000 |
— | ||
|
11
|
11
31611-86520-000
Housing assy, rear
|
31611-86520-000 |
— | ||
|
12
|
12
32500-86520-000
Regulator assy
|
32500-86520-000 |
— | ||
|
13
|
13
31653-86520-000
スプリング,ブラシ
|
31653-86520-000 |
— | ||
| replacement | |||||
|
13
|
13
31631-60F30-000 BRUSH SET |
31631-60F30-000 |
US $13.28 |
||
|
14
|
14
31631-86520-000
Brush
|
31631-86520-000 |
— | ||
| replacement | |||||
|
14
|
14
31631-60F30-000 BRUSH SET |
31631-60F30-000 |
US $13.28 |
||
|
15
|
15
31621-86520-000
Rectifier Assy
|
31621-86520-000 |
— | ||
|
16
|
16
31514-82630-000 INSULATOR |
31514-82630-000 |
US $2.88 |
||
|
17
|
17
31456-86030-000
ナット
|
31456-86030-000 |
— | ||
| replacements | |||||
|
17
|
17
08316-1006A-000 NUT |
08316-1006A-000 |
from US $0.80 |
||
|
17
|
17
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
17
|
17
08319-31067-000 NUTNut, center |
08319-31067-000 |
from US $1.44 |
||
|
17
|
17
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
|
18
|
18
31616-82131-000 BUSH |
31616-82131-000 |
US $5.30 |
||
| replacement | |||||
|
18
|
18
31616-82C20-000 BUSH |
31616-82C20-000 |
US $4.97 |
||
|
19
|
19
08321-21063-000 Lock washer |
08321-21063-000 |
US $1.07 |
||
| replacement | |||||
|
19
|
19
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
20
|
20
08310-11063-000 Nut m6x1x5 |
08310-11063-000 |
US $1.07 |
||
| replacements | |||||
|
20
|
20
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
20
|
20
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
