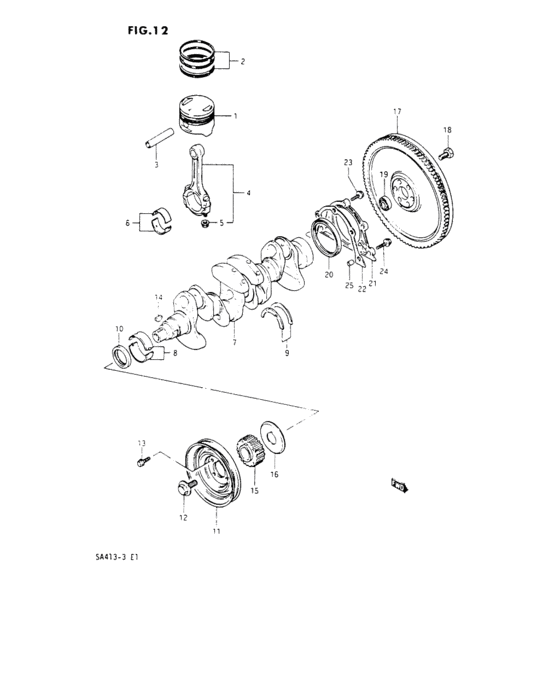

Piston and crankshaft (GL,GLS,GLX,GT) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Africa
- transmission
- MT
- grade
- GTI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12111-83000-0A0
PISTON,STD MARK 1
STD, MARK 1 |
12111-83000-0A0 |
— | ||
|
1
|
1
12111-83000-0B0
PISTON,STD MARK 2
STD, MARK 2 |
12111-83000-0B0 |
— | ||
|
1
|
1
12111-82010-0A0
Piston
STD, MARK 1,,Finland,Norway,Sweden,Switzerland,Belgium,2,5,6,Hong Kong,Austria,Israel,Ireland |
12111-82010-0A0 |
— | ||
| replacement | |||||
|
1
|
1
12100-82820-0A0 PISTON SET,STD MARK 1STD, MARK 1,,Finland,Norway,Sweden,Switzerland,Belgium,2,5,6,Hong Kong,Austria,Israel,Ireland |
12100-82820-0A0 |
US $58.88 |
||
|
1
|
1
12111-82010-0B0
Piston
STD, MARK 2,,Finland,Norway,Sweden,Switzerland,Belgium,2,5,6,Hong Kong,Austria,Israel,Ireland |
12111-82010-0B0 |
— | ||
| replacement | |||||
|
1
|
1
12100-82820-0B0
PISTON SET,STD MARK 2
STD, MARK 2,,Finland,Norway,Sweden,Switzerland,Belgium,2,5,6,Hong Kong,Austria,Israel,Ireland |
12100-82820-0B0 |
— | ||
|
1
|
1
12111-83000-025
Piston
OS:0.25 |
12111-83000-025 |
— | ||
|
1
|
1
12111-82010-025
Piston
OS:0.25,,Finland,Norway,Sweden,Switzerland,Belgium,2,5,6,Hong Kong,Austria,Israel,Ireland |
12111-82010-025 |
— | ||
|
1
|
1
12111-83000-050
PISTON,OS:0.50
OS:0.5 |
12111-83000-050 |
— | ||
|
1
|
1
12111-82010-050
Piston
OS:0.5,,Finland,Norway,Sweden,Switzerland,Belgium,2,5,6,Hong Kong,Austria,Israel,Ireland |
12111-82010-050 |
— | ||
| replacement | |||||
|
1
|
1
12100-82820-050
Piston set
OS:0.5,,Finland,Norway,Sweden,Switzerland,Belgium,2,5,6,Hong Kong,Austria,Israel,Ireland |
12100-82820-050 |
— | ||
|
2
|
2
12140-82051-000
Jeu segment std
STD,<-12140-82050 |
12140-82051-000 |
— | ||
| replacement | |||||
|
2
|
2
12140-82X50-000 RING SET,PISTONRing set, piston STD,<-12140-82050 |
12140-82X50-000 |
US $78.48 |
||
|
2
|
2
12140-82051-025
Ring set, piston
OS:0.25,<-12140-82050-025 |
12140-82051-025 |
— | ||
| replacement | |||||
|
2
|
2
12140-82X50-025 RING SET,PISTON OS:0.25Ring set, piston (os:0.25) OS:0.25,<-12140-82050-025 |
12140-82X50-025 |
US $50.05 |
||
|
2
|
2
12140-82051-050
Ring set, piston
OS:0.5,<-12140-82050-050 |
12140-82051-050 |
— | ||
| replacement | |||||
|
2
|
2
12140-82X50-050 RING SET,PISTON OS:0.50Ring set, piston (os:0.50) OS:0.5,<-12140-82050-050 |
12140-82X50-050 |
US $67.48 |
||
|
3
|
3
12151-82000-000 PIN,PISTONPin, piston |
12151-82000-000 |
from US $10.01 |
||
|
4
|
4
12160-82000-000
Connrod assy
|
12160-82000-000 |
— | ||
| replacement | |||||
|
4
|
4
12160-86021-000 CONNROD ASSY |
12160-86021-000 |
US $217.60 |
||
|
5
|
5
09159-08033-000 NUT |
09159-08033-000 |
from US $1.34 |
||
|
6
|
6
12100-82810-000 BEARING SET,CONNRODBearing set, big end STD, T:1.5 |
12100-82810-000 |
from US $17.26 |
||
|
6
|
6
12100-82810-025 BEARING SET,CONNROD US:0.25US:0.25, T:1.625 |
12100-82810-025 |
US $51.20 |
||
|
7
|
7
12221-82600-000
CRANKSHAFT
|
12221-82600-000 |
— | ||
|
7
|
7
12220-82501-000
Crankshaft
W/G13B(1298CC) |
12220-82501-000 |
— | ||
| replacement | |||||
|
7
|
7
12221-83E00-000 CRANKSHAFTW/G13B(1298CC) |
12221-83E00-000 |
US $1,516.80 |
||
|
8
|
8
12340-82000-0A0 BEARING SET,CRANKSHAFT STD (Green)STD, T:2, GREEN |
12340-82000-0A0 |
US $47.20 |
||
|
8
|
8
12340-82000-0B0 BEARING SET,CRANKSHAFT STD (Black)STD, T:2, BLACK |
12340-82000-0B0 |
US $57.60 |
||
|
8
|
8
12340-82000-0C0 BEARING SET,CRANKSHAFT STD (None)STD, T:2, NON COLOR |
12340-82000-0C0 |
US $57.60 |
||
|
8
|
8
12340-82000-0D0 BEARING SET,CRANKSHAFT STD (Yellow)STD, T:2, YELLOW |
12340-82000-0D0 |
US $47.20 |
||
|
8
|
8
12340-82000-0E0 BEARING SET,CRANKSHAFT STD (Blue)STD, T:2, BLUE |
12340-82000-0E0 |
US $47.20 |
||
|
8
|
8
12300-82810-0AA BEARING SET,CRANKSHAFT USUS:0.25, T:2.125, RED/GREEN |
12300-82810-0AA |
US $29.62 |
||
|
8
|
8
12300-82810-0BA BEARING SET,CRANKSHAFT USUS:0.25, T:2.125, RED/BLACK |
12300-82810-0BA |
US $29.62 |
||
|
8
|
8
12300-82810-0CA BEARING SET,CRANKSHAFT USUS:0.25, T:2.125, RED |
12300-82810-0CA |
US $24.66 |
||
|
8
|
8
12300-82810-0DA BEARING SET,CRANKSHAFT USUS:0.25, T:2.125, RED/YELLOW |
12300-82810-0DA |
US $24.66 |
||
|
8
|
8
12300-82810-0EA BEARING SET,CRANKSHAFT USUS:0.25, T:2.125, RED/BLUE |
12300-82810-0EA |
US $24.66 |
||
|
9
|
9
12300-82820-000
Bearing set, crank thrust (STD)
STD, T:2.5 |
12300-82820-000 |
— | ||
| replacement | |||||
|
9
|
9
12300-60840-000 BEARING SET,CRANK THRUST (STD)STD, T:2.5 |
12300-60840-000 |
from US $9.70 |
||
|
9
|
9
12300-82820-012
Bearing set, crank thrust (OS:0.125)
OS:0.125, T:2.563 |
12300-82820-012 |
— | ||
| replacement | |||||
|
9
|
9
12300-60840-012 BEARING SET,CRANK THRUST (OS:0.125)OS:0.125, T:2.563 |
12300-60840-012 |
from US $9.36 |
||
|
10
|
10
09283-32026-000
オイルシール,32X47X6
|
09283-32026-000 |
— | ||
| replacement | |||||
|
10
|
10
09283-32042-000 SEAL,OIL(32X47X6) |
09283-32042-000 |
from US $8.03 |
||
|
11
|
11
12610-82000-000
Poulie vilebrequin
|
12610-82000-000 |
— | ||
| replacement | |||||
|
11
|
11
12611-82170-000
PULLEY,CRANKSHAFT
|
12611-82170-000 |
— | ||
|
12
|
12
09103-12008-000
New Genuine Part
|
09103-12008-000 |
— | ||
| replacement | |||||
|
12
|
12
12619-60B00-000 BOLT,CRANK PULLEY |
12619-60B00-000 |
US $7.36 |
||
|
13
|
13
01517-06203-000
Bolt
|
01517-06203-000 |
— | ||
| replacements | |||||
|
13
|
13
01550-0620B-000 BOLTBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
13
|
13
01550-0620A-000 BOLT |
01550-0620A-000 |
from US $0.76 |
||
|
14
|
14
08341-31059-000 KEYKey |
08341-31059-000 |
from US $1.49 |
||
|
15
|
15
12631-82000-000 PULLEY,CRANK TIMING BELT |
12631-82000-000 |
US $91.20 |
||
|
16
|
16
12635-78400-000
Rondelle guide cour
|
12635-78400-000 |
— | ||
| replacement | |||||
|
16
|
16
12635-78401-000 GUIDE,TIMING BELT |
12635-78401-000 |
from US $3.65 |
||
|
17
|
17
12620-82600-000
Flywheel
MT |
12620-82600-000 |
— | ||
| replacement | |||||
|
17
|
17
12620-63B00-000 FLYWHEELMT |
12620-63B00-000 |
US $1,936 |
||
|
18
|
18
09103-10068-000
Bolt
MT |
09103-10068-000 |
— | ||
| replacement | |||||
|
18
|
18
09100-10275-000 BOLT(10X18.5)MT |
09100-10275-000 |
US $1.44 |
||
|
19
|
19
08133-62007-000
B1 10x39x9 bear
MT |
08133-62007-000 |
— | ||
| replacement | |||||
|
19
|
19
12623-60A00-000 BEARING,INPUT SHAFTBearing, input shaft MT |
12623-60A00-000 |
from US $18.68 |
||
|
20
|
20
09283-68001-000
Arretoir arriere
|
09283-68001-000 |
— | ||
| replacement | |||||
|
20
|
20
09283-68002-000 SEAL,OIL(68X86X8) |
09283-68002-000 |
from US $22.68 |
||
|
21
|
21
11341-82000-000
Housing, oil seal
|
11341-82000-000 |
— | ||
| replacement | |||||
|
21
|
21
11341-82001-000
HOUSING,OIL SEAL
|
11341-82001-000 |
— | ||
|
22
|
22
11349-82000-000
Joint
|
11349-82000-000 |
— | ||
| replacement | |||||
|
22
|
22
11349-60A01-000 GASKET,OIL SEAL HSGGasket, oil seal housing |
11349-60A01-000 |
from US $6.05 |
||
|
22
|
22
11349-60A00-000
ガスケット,オイルシールハウジング
Sweden |
11349-60A00-000 |
— | ||
| replacement | |||||
|
22
|
22
11349-60A01-000 GASKET,OIL SEAL HSGGasket, oil seal housing Sweden |
11349-60A01-000 |
from US $6.05 |
||
|
23
|
23
01517-06203-000
Bolt
|
01517-06203-000 |
— | ||
| replacements | |||||
|
23
|
23
01550-0620B-000 BOLTBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
23
|
23
01550-0620A-000 BOLT |
01550-0620A-000 |
from US $0.76 |
||
|
24
|
24
01517-06253-000
ボルト
|
01517-06253-000 |
— | ||
| replacements | |||||
|
24
|
24
01550-0625A-000 BOLTBolt |
01550-0625A-000 |
from US $0.96 |
||
|
24
|
24
01550-0625B-000 BOLTBolt, head cover |
01550-0625B-000 |
from US $0.91 |
||
|
25
|
25
04211-09109-000 PINKnock pin |
04211-09109-000 |
from US $0.96 |
||
