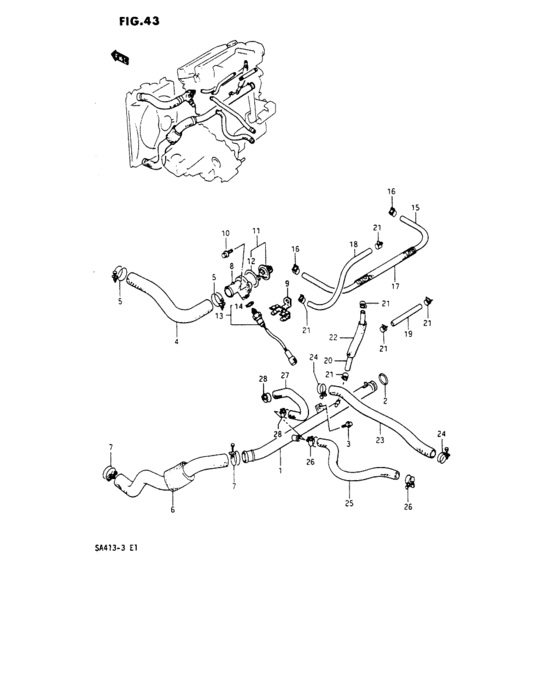

Water hose (TWIN CAM) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Africa
- transmission
- MT
- grade
- GTI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17840-86501-000
Pipe, water intake
<-17840-86500 |
17840-86501-000 |
— | ||
| replacement | |||||
|
1
|
1
17840-8650V-000
Pipe,water intake
<-17840-86500 |
17840-8650V-000 |
— | ||
|
2
|
2
09280-28006-000
Anneau torique
|
09280-28006-000 |
— | ||
| replacement | |||||
|
2
|
2
09280-28008-000 O RING(D:3.5,ID:27.7) |
09280-28008-000 |
from US $0.63 |
||
|
3
|
3
01517-06103-000
ボルト
|
01517-06103-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
3
|
3
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
4
|
4
17852-86500-000
Hose, radiator inlet
|
17852-86500-000 |
— | ||
| replacement | |||||
|
4
|
4
17852-64B00-000
HOSE,RADIATOR INLET
|
17852-64B00-000 |
— | ||
|
5
|
5
09400-36312-000 CLAMP |
09400-36312-000 |
from US $1.53 |
||
|
6
|
6
17854-82602-000
Hose,radiator outlet
|
17854-82602-000 |
— | ||
|
7
|
7
09400-36312-000 CLAMP |
09400-36312-000 |
from US $1.53 |
||
|
8
|
8
17561-82400-000
Cap,water thermostat
|
17561-82400-000 |
— | ||
|
9
|
9
17591-82400-000
Clamp, connector
|
17591-82400-000 |
— | ||
| replacements | |||||
|
9
|
9
09404-08420-000 CLAMP(L:120 T:1.0) |
09404-08420-000 |
from US $2.08 |
||
|
9
|
9
09404-08405-000
Clamp, drain tube
|
09404-08405-000 |
— | ||
|
10
|
10
01517-08253-000
ボルト
|
01517-08253-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0825A-000 BOLT |
01550-0825A-000 |
from US $1.06 |
||
|
10
|
10
01550-0825B-000 BOLT |
01550-0825B-000 |
from US $0.96 |
||
|
11
|
11
17600-82810-000
サーモスタット,ウォータ,82゜C
|
17600-82810-000 |
— | ||
| replacement | |||||
|
11
|
11
17600-85811-000 THERMOSTAT SET,WATER 82 DEG |
17600-85811-000 |
from US $18.88 |
||
|
11
|
11
17600-82830-000
サーモスタット,ウォータ,88゜C
Finland, Norway, Denmark |
17600-82830-000 |
— | ||
| replacement | |||||
|
11
|
11
17600-85821-000 THERMOSTAT SET,WATER 88 DEGFinland, Norway, Denmark |
17600-85821-000 |
from US $20.03 |
||
|
11
|
11
17600-82850-H17
Thermostat, water
Sweden |
17600-82850-H17 |
— | ||
| replacement | |||||
|
11
|
11
17600-85821-000 THERMOSTAT SET,WATER 88 DEGSweden |
17600-85821-000 |
from US $20.03 |
||
|
12
|
12
17569-82001-000
ガスケット,サーモキャップ
|
17569-82001-000 |
— | ||
| replacement | |||||
|
12
|
12
17569-82001-H17 GASKET,WTR THERMO CAP |
17569-82001-H17 |
US $2.24 |
||
|
12
|
12
17569-82001-H17 GASKET,WTR THERMO CAPSweden |
17569-82001-H17 |
US $2.24 |
||
|
13
|
13
17680-82001-000
SWITCH,FAN THERMO
|
17680-82001-000 |
— | ||
|
13
|
13
17680-86010-000
Switch, fan thermo
, 2 |
17680-86010-000 |
— | ||
| replacement | |||||
|
13
|
13
17680-86011-000 SWITCH,FAN THERMO, 2 |
17680-86011-000 |
US $50.42 |
||
|
13
|
13
17680-82011-000
Switch, fan thermo
Finland, Norway, Sweden, Denmark |
17680-82011-000 |
— | ||
| replacement | |||||
|
13
|
13
17680-86011-000 SWITCH,FAN THERMOFinland, Norway, Sweden, Denmark |
17680-86011-000 |
US $50.42 |
||
|
14
|
14
09280-14004-000 O RING(D:1.9,ID:13.8)O ring, gear shifting cam |
09280-14004-000 |
from US $1.76 |
||
|
15
|
15
09352-70131-480
Hose, water no. 3
|
09352-70131-480 |
— | ||
| replacement | |||||
|
15
|
15
09352-70131-600
HOSE(7X13X600)
|
09352-70131-600 |
— | ||
|
16
|
16
09401-12404-000 CLIPClip |
09401-12404-000 |
from US $1.52 |
||
|
17
|
17
17858-86501-000 PROTECTOR,HOSE<-17858-86500 |
17858-86501-000 |
US $9.60 |
||
|
18
|
18
09352-70131-480
Hose, water no. 3
L:480->310 |
09352-70131-480 |
— | ||
| replacement | |||||
|
18
|
18
09352-70131-600
HOSE(7X13X600)
L:480->310 |
09352-70131-600 |
— | ||
|
19
|
19
09352-70131-480
Hose, water no. 3
L:480->120 |
09352-70131-480 |
— | ||
| replacement | |||||
|
19
|
19
09352-70131-600
HOSE(7X13X600)
L:480->120 |
09352-70131-600 |
— | ||
|
20
|
20
09352-70131-480
Hose, water no. 3
L:480->240 |
09352-70131-480 |
— | ||
| replacement | |||||
|
20
|
20
09352-70131-600
HOSE(7X13X600)
L:480->240 |
09352-70131-600 |
— | ||
|
21
|
21
09401-12404-000 CLIPClip |
09401-12404-000 |
from US $1.52 |
||
|
22
|
22
09320-13013-000
Protector
L:180->120 |
09320-13013-000 |
— | ||
| replacement | |||||
|
22
|
22
09320-13016-000 CUSHIONL:180->120 |
09320-13016-000 |
US $52.30 |
||
|
23
|
23
17871-86500-000
Hose, heater inlet
W/HEATER |
17871-86500-000 |
— | ||
| replacement | |||||
|
23
|
23
17871-81X50-000 HOSE ASSY,HEATERW/HEATER |
17871-81X50-000 |
US $20.42 |
||
|
24
|
24
09400-22312-000 CLAMPW/HEATER |
09400-22312-000 |
from US $1.82 |
||
|
25
|
25
17872-82600-000
Hose, heater outlet
W/HEATER |
17872-82600-000 |
— | ||
| replacements | |||||
|
25
|
25
09401-18404-000 CLIPW/HEATER |
09401-18404-000 |
from US $1.33 |
||
|
25
|
25
17871-64BV0-000 HOSE ASSY,HEATERW/HEATER |
17871-64BV0-000 |
US $24 |
||
|
26
|
26
09400-22312-000 CLAMPW/HEATER |
09400-22312-000 |
from US $1.82 |
||
|
27
|
27
17871-86510-000
Hose, water circulation
N/HEATER |
17871-86510-000 |
— | ||
| replacements | |||||
|
27
|
27
09401-18404-000 CLIPN/HEATER |
09401-18404-000 |
from US $1.33 |
||
|
27
|
27
17871-73X50-000 HOSE ASSY,BREATHERN/HEATER |
17871-73X50-000 |
US $26.61 |
||
|
28
|
28
09400-22312-000 CLAMPN/HEATER |
09400-22312-000 |
from US $1.82 |
||
