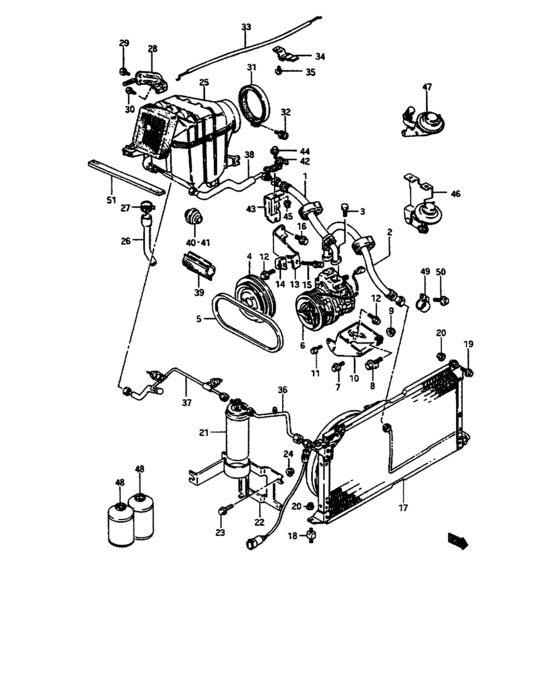

Air conditioner (LHD) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Africa
- transmission
- MT
- grade
- GL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
95000-82610-000
Air conditioner assy
MT:INC.FIG.135,136 |
95000-82610-000 |
— | ||
|
1
|
1
95710-82000-000
Hose, compressor
N/FLANGE TYPE |
95710-82000-000 |
— | ||
|
1
|
1
95710-82010-000
Hose, compressor
OPT, W/FLANGE TYPE |
95710-82010-000 |
— | ||
|
2
|
2
95720-82000-000
Hose, cmpr delivery
N/FLANGE TYPE |
95720-82000-000 |
— | ||
|
2
|
2
95720-82010-000
Hose, cmpr delivery
OPT, W/FLANGE TYPE |
95720-82010-000 |
— | ||
|
3
|
3
95917-82000-000
Bolt
|
95917-82000-000 |
— | ||
|
4
|
4
12611-82075-000
Pulley, crank shaft
|
12611-82075-000 |
— | ||
| replacement | |||||
|
4
|
4
12611-82170-000
PULLEY,CRANKSHAFT
|
12611-82170-000 |
— | ||
|
5
|
5
95141-82010-000
V-BELT,A/C
|
95141-82010-000 |
— | ||
|
6
|
6
95200-82000-000
Compressor & magnet clutch
INNER PARTS.FIG.139,N/FLANGE TYPE |
95200-82000-000 |
— | ||
|
6
|
6
95200-82010-000
Compressor & magnet clutch
OPT:INNER PARTS.FIG.140,W/FLANGE TYPE |
95200-82010-000 |
— | ||
|
7
|
7
01517-08203-000
ボルト
|
01517-08203-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0820A-000 BOLTBolt, funnel bracket |
01550-0820A-000 |
from US $0.96 |
||
|
7
|
7
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
8
|
8
95911-82000-000
BOLT,CPRSR HOLD
|
95911-82000-000 |
— | ||
|
9
|
9
08316-16083-000 NutNut |
08316-16083-000 |
US $3.06 |
||
| replacement | |||||
|
9
|
9
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
10
|
10
95111-82000-000
BRACKET,CPRSR
|
95111-82000-000 |
— | ||
|
11
|
11
01517-08203-000
ボルト
|
01517-08203-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0820A-000 BOLTBolt, funnel bracket |
01550-0820A-000 |
from US $0.96 |
||
|
11
|
11
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
12
|
12
01517-10203-000
ボルト
|
01517-10203-000 |
— | ||
| replacement | |||||
|
12
|
12
01550-1020A-000 BOLTBolt, bal sprocket |
01550-1020A-000 |
from US $0.96 |
||
|
13
|
13
95112-82000-000
STAY,COMPRESSOR ADJUSTING
|
95112-82000-000 |
— | ||
|
14
|
14
95912-82000-000 LEVER,ADJUSTING BOLT |
95912-82000-000 |
US $7.69 |
||
|
15
|
15
95913-82000-000
BOLT,ADJUSTING
|
95913-82000-000 |
— | ||
|
16
|
16
01517-08163-000
Bolt 8 x 16
|
01517-08163-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
|
16
|
16
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
17
|
17
95310-82015-000
Condenser assy
MT:INNER PARTS.FIG.143 |
95310-82015-000 |
— | ||
|
18
|
18
95959-82000-000
Mounting, condeser
|
95959-82000-000 |
— | ||
|
19
|
19
01517-06303-000
ボルト
|
01517-06303-000 |
— | ||
| replacement | |||||
|
19
|
19
01550-0630A-000 BOLT |
01550-0630A-000 |
from US $0.96 |
||
|
20
|
20
08316-16063-000 Nut |
08316-16063-000 |
US $2.91 |
||
| replacement | |||||
|
20
|
20
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
21
|
21
95330-80020-000
Dryer, receiver
|
95330-80020-000 |
— | ||
| replacement | |||||
|
21
|
21
95330-800R0-000
TANK,RECEIVER
|
95330-800R0-000 |
— | ||
|
22
|
22
95931-82065-000
Bracket, rcvr dryer
|
95931-82065-000 |
— | ||
|
23
|
23
01517-06123-000
Bolt
|
01517-06123-000 |
— | ||
| replacements | |||||
|
23
|
23
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
23
|
23
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
24
|
24
08316-16063-000 Nut |
08316-16063-000 |
US $2.91 |
||
| replacement | |||||
|
24
|
24
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
25
|
25
95401-82010-000
Evaporator unit
INNER PARTS.FIG.141 |
95401-82010-000 |
— | ||
|
26
|
26
74818-82011-000
Hose, drain
|
74818-82011-000 |
— | ||
|
27
|
27
95762-82010-000
Clamp, drain hose
|
95762-82010-000 |
— | ||
|
28
|
28
95961-82010-000
Stay, evaporator upper
|
95961-82010-000 |
— | ||
|
29
|
29
01517-06166-000
Bolt
|
01517-06166-000 |
— | ||
| replacement | |||||
|
29
|
29
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
30
|
30
03511-05166-000
Screw
|
03511-05166-000 |
— | ||
| replacement | |||||
|
30
|
30
03511-0516A-000 SCREW |
03511-0516A-000 |
from US $0.76 |
||
|
31
|
31
95771-82000-000
Band, evaporator out
|
95771-82000-000 |
— | ||
|
32
|
32
95915-82000-000
Screw, band
|
95915-82000-000 |
— | ||
|
33
|
33
95548-82000-000
Cable, thermostat
|
95548-82000-000 |
— | ||
|
34
|
34
95549-82000-000
Clamp, thms cable
|
95549-82000-000 |
— | ||
|
35
|
35
03211-05126-000
スクリュ
|
03211-05126-000 |
— | ||
| replacement | |||||
|
35
|
35
03211-0512A-000 SCREW |
03211-0512A-000 |
US $0.80 |
||
|
36
|
36
95731-82000-000
Pipe, cond outlet
|
95731-82000-000 |
— | ||
|
37
|
37
95732-82011-000
Pipe, rcvr dryer outlet
|
95732-82011-000 |
— | ||
|
38
|
38
95741-82011-000
Pipe, evapo outlet no.1
|
95741-82011-000 |
— | ||
|
39
|
39
95769-82010-000
Packin, pipe low
|
95769-82010-000 |
— | ||
|
40
|
40
74816-82010-000
Grommet, low pipe
|
74816-82010-000 |
— | ||
|
41
|
41
74817-82010-000
Grommet, high pipe
|
74817-82010-000 |
— | ||
|
42
|
42
95772-82003-000
Clamp, suction stay
|
95772-82003-000 |
— | ||
|
43
|
43
95774-82070-000
Stay, hose clip
|
95774-82070-000 |
— | ||
|
44
|
44
01517-06123-000
Bolt
|
01517-06123-000 |
— | ||
| replacements | |||||
|
44
|
44
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
44
|
44
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
45
|
45
08316-16063-000 Nut |
08316-16063-000 |
US $2.91 |
||
| replacement | |||||
|
45
|
45
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
46
|
46
95550-82100-000
Idle up assy, car air con
|
95550-82100-000 |
— | ||
|
47
|
47
95550-82665-000
Idle up assy, car air con
GS |
95550-82665-000 |
— | ||
|
48
|
48
95790-74000-000
Drum, refrigerant
|
95790-74000-000 |
— | ||
|
49
|
49
95776-82000-000
Clamp, discharge hose
|
95776-82000-000 |
— | ||
| replacement | |||||
|
49
|
49
95772-70C51-000 CLAMP,SUCT HOSE |
95772-70C51-000 |
US $9.83 |
||
|
50
|
50
01517-06203-000
Bolt
|
01517-06203-000 |
— | ||
| replacements | |||||
|
50
|
50
01550-0620B-000 BOLTBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
50
|
50
01550-0620A-000 BOLT |
01550-0620A-000 |
from US $0.76 |
||
|
51
|
51
95621-82000-000
Packing, inlet air
|
95621-82000-000 |
— | ||
