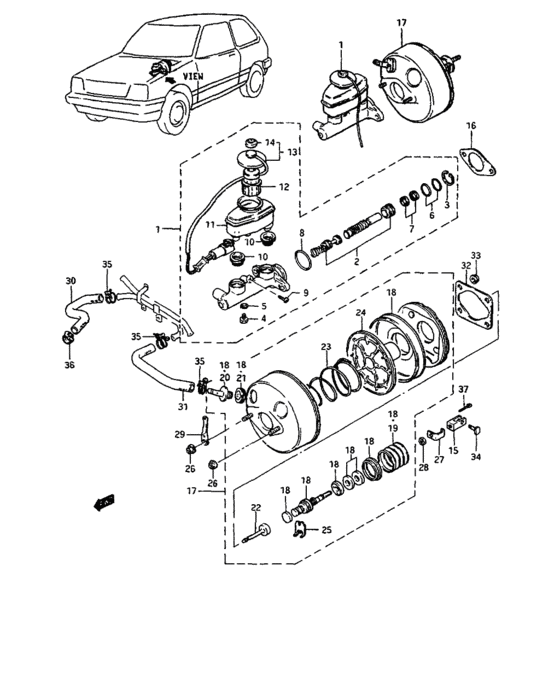

Brake master cylinder (LHD) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Africa
- transmission
- MT
- grade
- GL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51100-82120-000
CYLINDER ASSY,BRAKE MASTER
|
51100-82120-000 |
— | ||
|
1
|
1
51100-82420-000
Cylinder assy, brake master
Sweden,JSA0AA51S00105034~,JSA0AA51F00100001~ |
51100-82420-000 |
— | ||
|
2
|
2
51100-82810-000
PISTON SET,BRAKE MASTER
|
51100-82810-000 |
— | ||
|
3
|
3
51162-82020-000
サークリップ,ピストンストッパ
|
51162-82020-000 |
— | ||
| replacement | |||||
|
3
|
3
08331-41329-000 CIRCLIP |
08331-41329-000 |
from US $1.52 |
||
|
4
|
4
51165-82020-000
ボルト,セカンダリストッパ
|
51165-82020-000 |
— | ||
|
5
|
5
51166-67020-000
リング,ストッパボルトシール
|
51166-67020-000 |
— | ||
|
6
|
6
51183-82020-000
Oリング,ピストンストッパ
|
51183-82020-000 |
— | ||
|
7
|
7
51184-82020-000 CUP,CYLINDER |
51184-82020-000 |
US $4.27 |
||
|
8
|
8
51185-82020-000
Oリング,マスタシリンダ
|
51185-82020-000 |
— | ||
|
9
|
9
51193-82020-000
スクリュ,コネクタ
|
51193-82020-000 |
— | ||
|
10
|
10
51197-82020-000 GROMMET,RESERVOIR CONNECTOR |
51197-82020-000 |
US $2.43 |
||
|
11
|
11
51211-82120-000
Reservoir, master cylinder
|
51211-82120-000 |
— | ||
|
12
|
12
51234-82120-000
Strainer, cylinder reservoir
|
51234-82120-000 |
— | ||
|
13
|
13
51220-82120-000
CAP,CYLINDER RESERVOIR
|
51220-82120-000 |
— | ||
|
13
|
13
51220-82420-000
Cap assy, cylinder reservoir
Sweden,JSA0AA51S00105034~,JSA0AA51F00100001~ |
51220-82420-000 |
— | ||
| replacement | |||||
|
13
|
13
51220-82120-000
CAP,CYLINDER RESERVOIR
Sweden,JSA0AA51S00105034~,JSA0AA51F00100001~ |
51220-82120-000 |
— | ||
|
14
|
14
51235-82120-000
キャップ,フィラキャップブリーザ
|
51235-82120-000 |
— | ||
|
14
|
14
51235-82420-000
Cap, filler cap breather
Sweden,JSA0AA51S00105034~,JSA0AA51F00100001~ |
51235-82420-000 |
— | ||
|
15
|
15
51182-82020-000
クレビス,プッシュロッド
|
51182-82020-000 |
— | ||
| replacement | |||||
|
15
|
15
51182-77E00-000 CLEVIS,CYLINDER PUSH ROD |
51182-77E00-000 |
US $9.12 |
||
|
16
|
16
51199-82020-000
GASKET,MASTER CYLINDER
|
51199-82020-000 |
— | ||
|
17
|
17
51300-82120-000
Booster assy, brake master
|
51300-82120-000 |
— | ||
|
18
|
18
51300-82810-000
Repair kit, brake master
->51300-82811,USED WITH 51360-82120 |
51300-82810-000 |
— | ||
|
18
|
18
51300-82811-000
Repair kit, brake master
AA51S-100328~,AB51S-102608~,AA51V-101044~,JSA0AA51S00103215~,JSA0AA51F00100001~ |
51300-82811-000 |
— | ||
|
19
|
19
51330-82020-000
ブーツ,ブースタボディ
|
51330-82020-000 |
— | ||
|
20
|
20
51370-82120-000
Valve assy, vacuum check
|
51370-82120-000 |
— | ||
| replacement | |||||
|
20
|
20
51370-82121-000
Valve assy, vacuum check
|
51370-82121-000 |
— | ||
|
21
|
21
51371-82020-000 GROMMET,CHECK VALVE |
51371-82020-000 |
US $1.98 |
||
|
22
|
22
51350-82020-000
Rod assy, booster piston
|
51350-82020-000 |
— | ||
|
23
|
23
51360-82020-000
Spring, booster piston
|
51360-82020-000 |
— | ||
|
23
|
23
51360-82120-000
Spring, booster piston
AA51S-100328~,AB51S-102608~,AA51V-101044~,JSA0AA51S00103215~,JSA0AA51F00100001~ |
51360-82120-000 |
— | ||
|
24
|
24
51363-82020-000
Piston, booster
|
51363-82020-000 |
— | ||
|
25
|
25
51364-82020-000
Key, valve stopper
|
51364-82020-000 |
— | ||
|
26
|
26
51313-82020-000
ナット,ブースタ
|
51313-82020-000 |
— | ||
| replacement | |||||
|
26
|
26
09159-08075-000 NUT |
09159-08075-000 |
US $0.91 |
||
|
27
|
27
51348-82020-000
ブラケット,プッシュロッド
|
51348-82020-000 |
— | ||
|
28
|
28
51349-82020-000
ナット,シリンダプッシュロッド
|
51349-82020-000 |
— | ||
| replacements | |||||
|
28
|
28
09140-10019-000 NUT |
09140-10019-000 |
US $9.20 |
||
|
28
|
28
08310-30107-000
New Genuine Part
|
08310-30107-000 |
— | ||
|
29
|
29
51372-82120-000
Bracket, check valve
|
51372-82120-000 |
— | ||
|
30
|
30
51010-82050-000
Hose, brake vacuum intake
|
51010-82050-000 |
— | ||
| replacement | |||||
|
30
|
30
51010-86050-000
Hose, brake vacuum intake
|
51010-86050-000 |
— | ||
|
31
|
31
51010-82350-000
Hose, brake vacuum
|
51010-82350-000 |
— | ||
| replacement | |||||
|
31
|
31
51010-86350-000
Hose, brake vacuum
|
51010-86350-000 |
— | ||
|
32
|
32
51132-82002-000
パッキング,ブレーキマスタシリンダ
<-51132-82000 |
51132-82002-000 |
— | ||
| replacement | |||||
|
32
|
32
51132-82003-000 PACKING,BRAKE MASTER CYLINDER<-51132-82000 |
51132-82003-000 |
US $1.60 |
||
|
33
|
33
09159-08052-000
ナット
<-09159-08051 |
09159-08052-000 |
— | ||
| replacement | |||||
|
33
|
33
09159-08135-000 NUT<-09159-08051 |
09159-08135-000 |
from US $0.77 |
||
|
34
|
34
09200-10010-000
ピン
|
09200-10010-000 |
— | ||
| replacement | |||||
|
34
|
34
09200-10021-000 PIN |
09200-10021-000 |
US $1.28 |
||
|
35
|
35
09400-19302-000
クランプ
<-09400-19301 |
09400-19302-000 |
— | ||
| replacement | |||||
|
35
|
35
09401-15404-000 CLIP<-09400-19301 |
09401-15404-000 |
from US $1.06 |
||
|
36
|
36
09402-22501-000
Clamp
|
09402-22501-000 |
— | ||
| replacement | |||||
|
36
|
36
09402-22511-000 CLAMP |
09402-22511-000 |
from US $10.56 |
||
|
37
|
37
04111-25206-000
コッタピン
|
04111-25206-000 |
— | ||
| replacement | |||||
|
37
|
37
04111-2520A-000 PIN |
04111-2520A-000 |
from US $0.80 |
||
