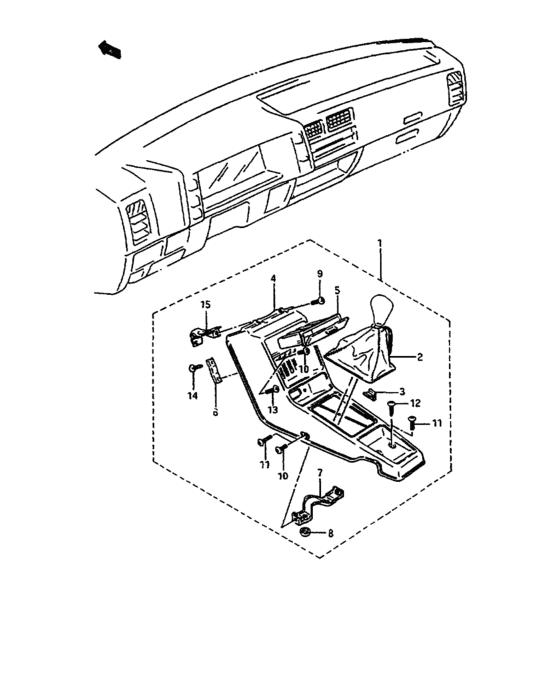

Console box (MT) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Africa
- transmission
- MT
- grade
- GL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
75800-82812-53A
Box assy, console
|
75800-82812-53A |
— | ||
| replacement | |||||
|
1
|
1
99981-86810-4NM
New Genuine Part
|
99981-86810-4NM |
— | ||
|
1
|
1
75800-82812-55Y
Box assy, console
|
75800-82812-55Y |
— | ||
| replacement | |||||
|
1
|
1
99981-86810-4MM
New Genuine Part
|
99981-86810-4MM |
— | ||
|
2
|
2
75850-82000-55U
Boot, console box
|
75850-82000-55U |
— | ||
| replacement | |||||
|
2
|
2
75850-82000-4PM
Boot,console box
|
75850-82000-4PM |
— | ||
|
2
|
2
75850-82000-55V
Boot, console box
|
75850-82000-55V |
— | ||
| replacement | |||||
|
2
|
2
75850-82000-4PM
Boot,console box
|
75850-82000-4PM |
— | ||
|
3
|
3
75861-82000-000
CLIP,CONSOLE BOOT
|
75861-82000-000 |
— | ||
|
4
|
4
75811-82001-53A
Box, console
|
75811-82001-53A |
— | ||
| replacement | |||||
|
4
|
4
75811-82001-4MM
Box,console
|
75811-82001-4MM |
— | ||
|
4
|
4
75811-82001-55Y
Box, console
|
75811-82001-55Y |
— | ||
| replacement | |||||
|
4
|
4
75811-82001-4MM
Box,console
|
75811-82001-4MM |
— | ||
|
5
|
5
75821-82000-53A
Pocket, console box
|
75821-82000-53A |
— | ||
| replacement | |||||
|
5
|
5
75821-82001-4MM
Pocket,console box (dark gray)
|
75821-82001-4MM |
— | ||
|
5
|
5
75821-82000-55Y
ポケット,コンソールボックス(グレー)
|
75821-82000-55Y |
— | ||
| replacement | |||||
|
5
|
5
75821-82001-4MM
Pocket,console box (dark gray)
|
75821-82001-4MM |
— | ||
|
6
|
6
75822-82000-000
Stay, console pocket
|
75822-82000-000 |
— | ||
|
6
|
6
75822-82001-000
Stay, pocket
AA51S-100272~,AA51V-100895~,AB51S-101124~,JSA0AA51S00102010~,JSA0AA51F00100001~ |
75822-82001-000 |
— | ||
|
7
|
7
75831-82000-000
Bracket, console box
|
75831-82000-000 |
— | ||
| replacements | |||||
|
7
|
7
03141-0516A-000 SCREW |
03141-0516A-000 |
from US $0.80 |
||
|
7
|
7
03141-05165-000
Screw
|
03141-05165-000 |
— | ||
|
7
|
7
75831-82001-000
Bracket, console box
AA51S-100279~,AA51V-100891~,AB51S-101124~,JSA0AA51S00102010~,JSA0AA51F00100001~ |
75831-82001-000 |
— | ||
|
8
|
8
75832-82000-000
SPACER,CONSOLE BOX
|
75832-82000-000 |
— | ||
|
9
|
9
02142-05204-000
Screw
|
02142-05204-000 |
— | ||
| replacement | |||||
|
9
|
9
02142-0520B-000 SCREWScrew, rear |
02142-0520B-000 |
from US $0.76 |
||
|
10
|
10
02142-05124-000
Screw
|
02142-05124-000 |
— | ||
| replacement | |||||
|
10
|
10
02142-0512A-000 SCREWScrew, lower |
02142-0512A-000 |
from US $0.80 |
||
|
11
|
11
03141-05165-000
Screw
AA51S-100279~,AA51V-100891~,AB51S-101124~,JSA0AA51S00102010~,JSA0AA51F00100001~ |
03141-05165-000 |
— | ||
|
12
|
12
03141-05205-000
Screw l:20
|
03141-05205-000 |
— | ||
| replacements | |||||
|
12
|
12
03141-0520B-000 SCREW |
03141-0520B-000 |
US $2.56 |
||
|
12
|
12
03142-0520B-000 SCREW |
03142-0520B-000 |
from US $0.80 |
||
|
13
|
13
03141-05165-000
Screw
AA51S-100272~,AA51V-100895~,AB51S-101124~,JSA0AA51S00102010~,JSA0AA51F00100001~ |
03141-05165-000 |
— | ||
|
14
|
14
03541-05168-000
Screw
|
03541-05168-000 |
— | ||
| replacement | |||||
|
14
|
14
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
15
|
15
73216-82010-000
Stay, member
|
73216-82010-000 |
— | ||
