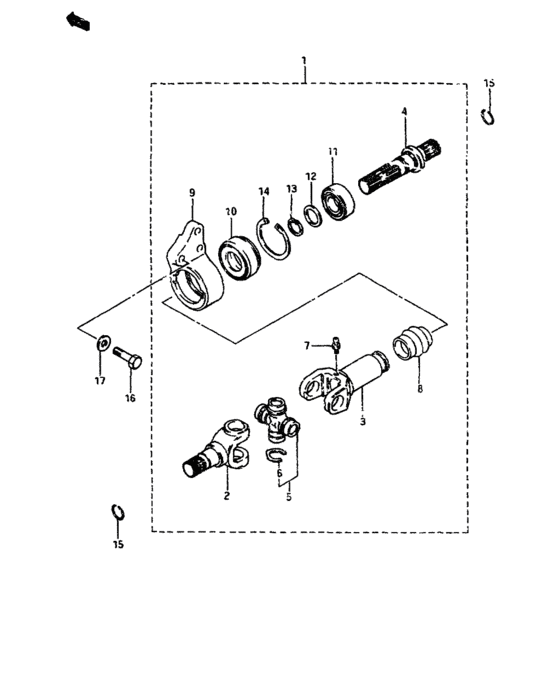

Drive shaft (DRIVE SHAFT) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Africa
- transmission
- MT
- grade
- GL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27100-82601-000
Shaft assy, drive inner
MT, <-27100-82600 |
27100-82601-000 |
— | ||
|
2
|
2
27121-82600-000
Yoke, drive shaft
|
27121-82600-000 |
— | ||
|
3
|
3
27180-73002-000
Yoke,sliding
|
27180-73002-000 |
— | ||
|
4
|
4
27150-82600-000
Shaft, drive inner
MT |
27150-82600-000 |
— | ||
|
5
|
5
27200-73810-000
Joint assy, universal
|
27200-73810-000 |
— | ||
| replacements | |||||
|
5
|
5
27200-73813-000
JOINT SET,UNIVERSAL
|
27200-73813-000 |
— | ||
|
5
|
5
27200-73814-000 Joint Set, Universal Rr |
27200-73814-000 |
from US $52 |
||
|
6
|
6
09380-25005-000 RING,SNAPCirclip |
09380-25005-000 |
from US $1.52 |
||
|
7
|
7
08351-21008-000
Grease nipple
|
08351-21008-000 |
— | ||
| replacement | |||||
|
7
|
7
08351-2100A-000 NIPPLE |
08351-2100A-000 |
from US $2.40 |
||
|
8
|
8
27153-82600-000 BOOT,DRIVE SHAFTMT |
27153-82600-000 |
US $4.23 |
||
|
9
|
9
27191-82602-000
Support, center bearing
MT, <-27191-82601 |
27191-82602-000 |
— | ||
|
10
|
10
27290-82600-000
Housing, center bearing
|
27290-82600-000 |
— | ||
| replacement | |||||
|
10
|
10
27290-53B00-000
BRG,DRIVE SHAFT,CENTER
|
27290-53B00-000 |
— | ||
|
11
|
11
09262-25072-000 BEARING(25X52X15)Bearing, rear swgarm |
09262-25072-000 |
from US $15.55 |
||
|
12
|
12
08211-25322-000 WASHERWasher |
08211-25322-000 |
US $17.70 |
||
|
13
|
13
08331-31258-000
Circlip
|
08331-31258-000 |
— | ||
| replacement | |||||
|
13
|
13
08331-31259-000 CIRCLIP |
08331-31259-000 |
from US $1.38 |
||
|
14
|
14
09381-65003-000
Circlip
|
09381-65003-000 |
— | ||
|
15
|
15
09381-24001-000 RING,SNAPRing (od:24,d:1.6) |
09381-24001-000 |
from US $1.60 |
||
|
16
|
16
01107-10403-000
Screw,lower
|
01107-10403-000 |
— | ||
| replacement | |||||
|
16
|
16
01500-1040A-000 Bolt |
01500-1040A-000 |
from US $2.40 |
||
|
17
|
17
08321-31103-000
ロックワッシャ
|
08321-31103-000 |
— | ||
| replacements | |||||
|
17
|
17
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
17
|
17
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
