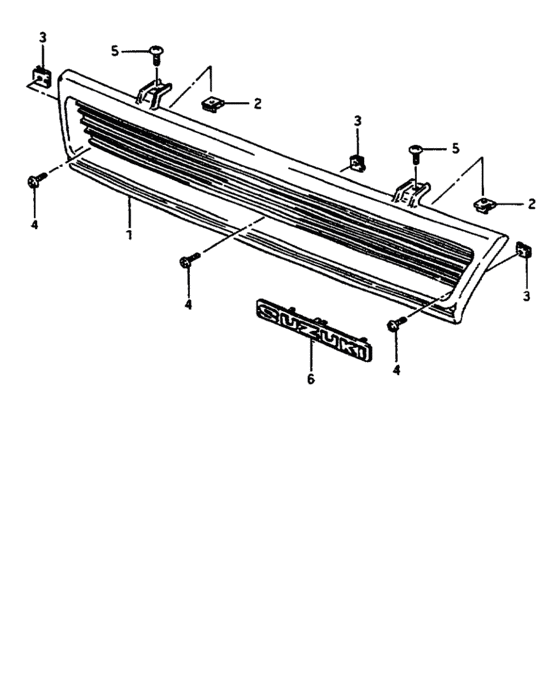

Front grille (FRONT GRILLE) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Africa
- transmission
- MT
- grade
- GL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
72111-82010-96P
Grille, radiator
|
72111-82010-96P |
— | ||
| replacement | |||||
|
1
|
1
72111-82060-000 GRILLE,RDTR |
72111-82060-000 |
US $87.22 |
||
|
1
|
1
72111-82010-7GC
Grille, radiator
GS |
72111-82010-7GC |
— | ||
| replacement | |||||
|
1
|
1
72111-82060-000 GRILLE,RDTRGS |
72111-82060-000 |
US $87.22 |
||
|
1
|
1
72111-82010-7FN
Grille, radiator
GS |
72111-82010-7FN |
— | ||
| replacement | |||||
|
1
|
1
72111-82060-000 GRILLE,RDTRGS |
72111-82060-000 |
US $87.22 |
||
|
1
|
1
72111-82010-21F
Grille, radiator
GS |
72111-82010-21F |
— | ||
| replacement | |||||
|
1
|
1
72111-82060-000 GRILLE,RDTRGS |
72111-82060-000 |
US $87.22 |
||
|
1
|
1
72111-82010-7GD
Grille, radiator
GS |
72111-82010-7GD |
— | ||
| replacement | |||||
|
1
|
1
72111-82060-000 GRILLE,RDTRGS |
72111-82060-000 |
US $87.22 |
||
|
2
|
2
09148-05003-000 NUT |
09148-05003-000 |
US $1.28 |
||
|
3
|
3
09148-05019-000 NUT |
09148-05019-000 |
from US $0.96 |
||
|
4
|
4
03211-05163-000
Screw
|
03211-05163-000 |
— | ||
| replacement | |||||
|
4
|
4
03211-0516A-000 SCREW |
03211-0516A-000 |
US $0.80 |
||
|
5
|
5
03241-05123-000
Screw
|
03241-05123-000 |
— | ||
| replacement | |||||
|
5
|
5
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
6
|
6
77811-82020-000
Emblem, front grille
|
77811-82020-000 |
— | ||
