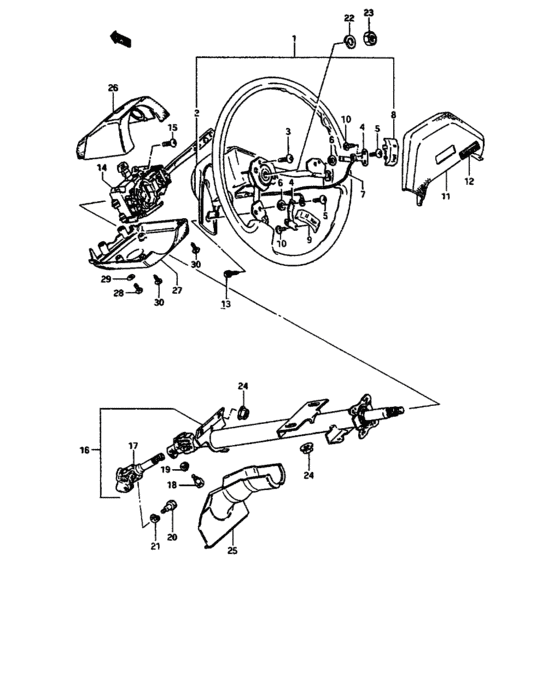

Steering wheel and column (New Zealand) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Africa
- transmission
- MT
- grade
- GL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48110-82010-55Y
Wheel assy, steering
|
48110-82010-55Y |
— | ||
| replacement | |||||
|
1
|
1
48130-84300-4BS
COVER,STRG WHEEL
|
48130-84300-4BS |
— | ||
|
2
|
2
48119-82010-55Y
Cover, lower
|
48119-82010-55Y |
— | ||
|
3
|
3
03241-04125-000
Screw
|
03241-04125-000 |
— | ||
| replacement | |||||
|
3
|
3
03242-0412B-000 SCREW |
03242-0412B-000 |
from US $0.80 |
||
|
4
|
4
48129-82010-000
Spring, horn button
|
48129-82010-000 |
— | ||
|
5
|
5
48126-82010-000
Screw, horn button spring
|
48126-82010-000 |
— | ||
| replacements | |||||
|
5
|
5
03211-0516A-000 SCREW |
03211-0516A-000 |
US $0.80 |
||
|
5
|
5
03211-05166-000
Screw, l:16
|
03211-05166-000 |
— | ||
|
6
|
6
48128-82010-000
Spacer
|
48128-82010-000 |
— | ||
|
7
|
7
48127-82010-000
Lead wire
|
48127-82010-000 |
— | ||
|
8
|
8
48123-82010-000
Button, horn rh
|
48123-82010-000 |
— | ||
|
9
|
9
48124-82010-000
Button, horn lh
|
48124-82010-000 |
— | ||
|
10
|
10
03241-04085-000
Screw
|
03241-04085-000 |
— | ||
| replacement | |||||
|
10
|
10
03241-0408A-000 SCREW |
03241-0408A-000 |
US $7 |
||
|
11
|
11
48121-82010-55Y
Pad, steering wheel
|
48121-82010-55Y |
— | ||
|
12
|
12
48131-82060-000
Emblem
|
48131-82060-000 |
— | ||
|
13
|
13
09137-05006-000
Screw
|
09137-05006-000 |
— | ||
|
14
|
14
37400-86000-000
SWITCH ASSY,TURN SIGNAL&DIMMER
<-37400-82101 |
37400-86000-000 |
— | ||
|
15
|
15
03211-05106-000
スクリュ
|
03211-05106-000 |
— | ||
| replacement | |||||
|
15
|
15
03211-0510A-000 SCREW |
03211-0510A-000 |
US $0.80 |
||
|
16
|
16
48200-82122-000
Column assy, steering
<-48200-82121 |
48200-82122-000 |
— | ||
|
17
|
17
48220-82000-000
Joint, steering shaft
|
48220-82000-000 |
— | ||
|
18
|
18
09111-08052-000
ボルト
|
09111-08052-000 |
— | ||
| replacement | |||||
|
18
|
18
09111-08066-000 BOLT(8X30) |
09111-08066-000 |
US $1.92 |
||
|
19
|
19
08321-31086-000
Lock washer
|
08321-31086-000 |
— | ||
| replacements | |||||
|
19
|
19
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
19
|
19
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
20
|
20
09111-08052-000
ボルト
|
09111-08052-000 |
— | ||
| replacement | |||||
|
20
|
20
09111-08066-000 BOLT(8X30) |
09111-08066-000 |
US $1.92 |
||
|
21
|
21
08321-31086-000
Lock washer
|
08321-31086-000 |
— | ||
| replacements | |||||
|
21
|
21
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
21
|
21
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
22
|
22
08321-31126-000
Washer lock
|
08321-31126-000 |
— | ||
| replacement | |||||
|
22
|
22
08321-0112A-000 WASHER,LOCK |
08321-0112A-000 |
from US $0.76 |
||
|
23
|
23
09140-12022-000
ナット
|
09140-12022-000 |
— | ||
| replacement | |||||
|
23
|
23
09159-12025-000 NUT |
09159-12025-000 |
US $1.82 |
||
|
24
|
24
09159-08052-000
ナット
<-09159-08051 |
09159-08052-000 |
— | ||
| replacement | |||||
|
24
|
24
09159-08135-000 NUT<-09159-08051 |
09159-08135-000 |
from US $0.77 |
||
|
25
|
25
48481-82000-000
Cover, steering joint
|
48481-82000-000 |
— | ||
|
26
|
26
48411-82020-55Y
Cover, column upper
|
48411-82020-55Y |
— | ||
|
27
|
27
48421-82000-55Y
Cover, column lower
|
48421-82000-55Y |
— | ||
|
28
|
28
02112-05126-000
Screw m5x.08x12
|
02112-05126-000 |
— | ||
| replacement | |||||
|
28
|
28
02112-0512A-000 SCREW |
02112-0512A-000 |
from US $0.80 |
||
|
29
|
29
09160-05034-000
Washer,5.3x10x1
|
09160-05034-000 |
— | ||
| replacement | |||||
|
29
|
29
09160-05044-000 WASHER(5.5X10X1) |
09160-05044-000 |
from US $0.96 |
||
|
30
|
30
03211-05166-000
Screw, l:16
|
03211-05166-000 |
— | ||
