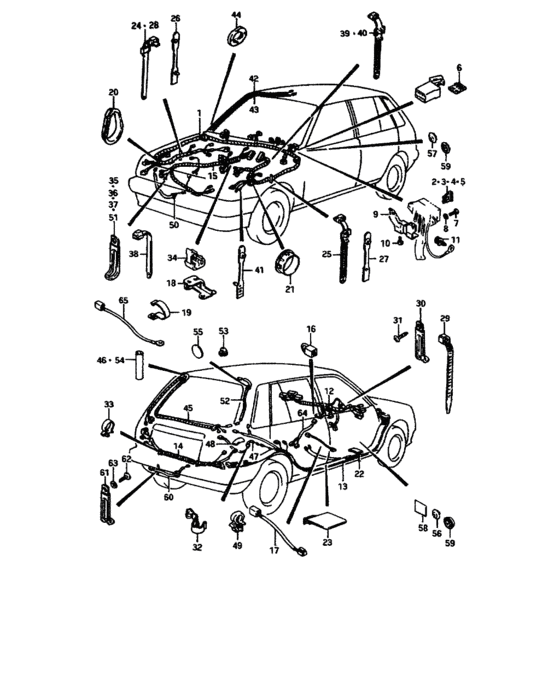

Wiring harness (5DR) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Africa
- transmission
- MT
- grade
- GL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-82068-000
Harness assy, wiring no.1
MT:LHD(W/ANALOGUE METER),<-36610-82067 |
36610-82068-000 |
— | ||
|
1
|
1
36610-82078-000
Harness assy, wiring no.1
MT:LHD(W/DIGITAL METER) |
36610-82078-000 |
— | ||
|
1
|
1
36610-82089-000
Harness assy, wiring no.1
MT:RHD(W/ANALOGUE METER) |
36610-82089-000 |
— | ||
|
1
|
1
36610-82099-000
Harness assy, wiring no.1
MT:RHD(W/DIGITAL METER),<-36610-82098 |
36610-82099-000 |
— | ||
|
1
|
1
36610-82157-000
Harness assy, wiring no.1
Finland, Norway, Sweden,(W/ANALOGUE METER) |
36610-82157-000 |
— | ||
|
1
|
1
36610-82650-000
Harness assy, wiring no.1
Finland, Norway, Sweden,(W/ANALOGUE METER),JSA0AA51F00100849~ |
36610-82650-000 |
— | ||
|
1
|
1
36610-82167-000
Harness assy, wiring no.1
Finland, Norway, Sweden,(W/DIGITAL METER) |
36610-82167-000 |
— | ||
|
1
|
1
36610-82401-000
Harness assy, wiring no.1
Finland, Norway, Sweden,(W/DIGITAL METER),JSA0AA51F00100849~ |
36610-82401-000 |
— | ||
|
1
|
1
36610-82174-000
Harness assy, wiring no.1
MT:Saudi Arabia(W/ANALOGUE METER),<-36610-82173 |
36610-82174-000 |
— | ||
|
1
|
1
36610-82184-000
Harness assy, wiring no.1
MT:Saudi Arabia(W/DIGITAL METER) |
36610-82184-000 |
— | ||
|
2
|
2
09481-05101-000 FUSE(5A) |
09481-05101-000 |
from US $2.82 |
||
|
3
|
3
09481-10101-000 FUSE(10A) |
09481-10101-000 |
from US $1.28 |
||
|
4
|
4
09481-15101-000 FUSE(15A)Fuse (15a) |
09481-15101-000 |
from US $1.28 |
||
|
5
|
5
09481-20101-000 FUSE(20A) |
09481-20101-000 |
from US $3.35 |
||
|
6
|
6
33458-82010-000 DIODE |
33458-82010-000 |
US $14.32 |
||
|
7
|
7
03211-05128-000
Screw
|
03211-05128-000 |
— | ||
| replacement | |||||
|
7
|
7
03212-0512B-000 SCREW |
03212-0512B-000 |
from US $0.80 |
||
|
8
|
8
08322-21057-000
Washer
|
08322-21057-000 |
— | ||
| replacement | |||||
|
8
|
8
08322-01057-000 WASHERWasher, front hook holder |
08322-01057-000 |
from US $0.80 |
||
|
9
|
9
36791-82000-000
Bracket, fuse box
|
36791-82000-000 |
— | ||
|
10
|
10
02112-05125-000
Screw, cap
|
02112-05125-000 |
— | ||
| replacement | |||||
|
10
|
10
02112-0512A-000 SCREW |
02112-0512A-000 |
from US $0.80 |
||
|
11
|
11
09115-06001-000
Bolt, lh
|
09115-06001-000 |
— | ||
| replacement | |||||
|
11
|
11
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
|
12
|
12
36620-82002-000
Harness assy, wiring no.2
W/ANALOGUE METER(N/TACHO) |
36620-82002-000 |
— | ||
|
12
|
12
36620-82013-000
Harness assy, wiring no.2
W/ANALOGUE METER(W/TACHO) |
36620-82013-000 |
— | ||
|
12
|
12
36620-82022-000
Harness assy, wiring no.2
W/DIGITAL METER |
36620-82022-000 |
— | ||
|
12
|
12
36620-82300-000
Harness assy, wiring no.2
New Zealand(W/ANALOGUE METER) |
36620-82300-000 |
— | ||
|
12
|
12
36620-82063-000
Harness assy, wiring no.2
, Finland, Norway, Sweden, Switzerland, Belgium,,2, 5, 6, Austria, Israel,W/ANALOGUE METER(N/TACHO) |
36620-82063-000 |
— | ||
|
12
|
12
36620-82400-000
Harness assy, wiring no.2
MT:Finland, Norway, Sweden,W/ANALOGUE METER(N/TACHO),JSA0AA51F00100849~ |
36620-82400-000 |
— | ||
|
12
|
12
36620-82075-000
Harness assy, wiring no.2
, Finland, Norway, Sweden, Switzerland, Belgium,,2, 5, 6, Austria, Israel,W/ANALOGUE METER(W/TACHO) |
36620-82075-000 |
— | ||
|
12
|
12
36620-82410-000
Harness assy, wiring no.2
MT:Finland, Norway, Sweden,W/ANALOGUE METER(W/TACHO),JSA0AA51F00100849~ |
36620-82410-000 |
— | ||
|
12
|
12
36620-82083-000
Harness assy, wiring no.2
, Finland, Norway, Sweden, Switzerland, Belgium,,2, 5, 6, Austria, Israel,W/DIGITAL METER |
36620-82083-000 |
— | ||
|
12
|
12
36620-82420-000
Harness assy, wiring no.2
MT:Finland, Norway, Sweden,W/DIGITAL METER,JSA0AA51F00100849~ |
36620-82420-000 |
— | ||
|
12
|
12
36620-82091-000
Harness assy, wiring no.2
Saudi Arabia:W/ANALOGUE METER,(N/TACHO) |
36620-82091-000 |
— | ||
|
12
|
12
36620-82102-000
Harness assy, wiring no.2
Saudi Arabia:W/ANALOGUE METER,(W/TACHO) |
36620-82102-000 |
— | ||
|
12
|
12
36620-82111-000
Harness assy, wiring no.2
Saudi Arabia:W/DIGITAL METER |
36620-82111-000 |
— | ||
|
13
|
13
36630-82112-000
Harness assy, wiring no.3
LHD |
36630-82112-000 |
— | ||
|
13
|
13
36630-82130-000
Harness assy, wiring no.3
RHD |
36630-82130-000 |
— | ||
|
13
|
13
36630-82311-000
Harness assy, wiring no.3
New Zealand, <-36630-82310 |
36630-82311-000 |
— | ||
|
14
|
14
36640-82100-000
Harness assy, wiring no.4
|
36640-82100-000 |
— | ||
|
14
|
14
36640-82110-000
Harness assy, wiring no.4
, Finland, Norway, Switzerland, Belgium, 2,,5, 6, Austria |
36640-82110-000 |
— | ||
|
15
|
15
36650-82130-000
Harness assy, wiring no.5
MT |
36650-82130-000 |
— | ||
|
16
|
16
39605-82000-000 WIRE,ILLUM CONT JOINTSaudi Arabia |
39605-82000-000 |
US $3.31 |
||
|
18
|
18
36651-82020-000
Bracket, harness no.5 clamp
MT |
36651-82020-000 |
— | ||
|
18
|
18
36651-82040-000
Bracket, harness no.5 clamp
MT,AB51S-107381~,JSA0AA51F00100491~ |
36651-82040-000 |
— | ||
| replacement | |||||
|
18
|
18
36651-82041-000
Bracket, harness no. 5 clamp
MT,AB51S-107381~,JSA0AA51F00100491~ |
36651-82041-000 |
— | ||
|
20
|
20
36918-82000-000
Grommet, apron hole
|
36918-82000-000 |
— | ||
|
21
|
21
36917-82000-000
Grommet, apron hole lh
|
36917-82000-000 |
— | ||
|
21
|
21
36918-82000-000
Grommet, apron hole
AB51S-100032~,AB51S-106978~,JSA0AA51F00101261~ |
36918-82000-000 |
— | ||
|
22
|
22
36930-82000-000
カバー
|
36930-82000-000 |
— | ||
| replacement | |||||
|
22
|
22
36930-82010-000 COVER,HARNESSCover, roof wire |
36930-82010-000 |
from US $1.73 |
||
|
23
|
23
09408-00053-000
Clamp, floor harness
|
09408-00053-000 |
— | ||
|
24
|
24
09407-14406-000
クランプ,L:130
|
09407-14406-000 |
— | ||
| replacement | |||||
|
24
|
24
09407-12404-000 CLAMP(L:140) |
09407-12404-000 |
US $2.08 |
||
|
25
|
25
09407-14406-000
クランプ,L:130
|
09407-14406-000 |
— | ||
| replacement | |||||
|
25
|
25
09407-12404-000 CLAMP(L:140) |
09407-12404-000 |
US $2.08 |
||
|
26
|
26
09407-05405-000
Clamp (l:103)
|
09407-05405-000 |
— | ||
| replacement | |||||
|
26
|
26
09407-05406-000 CLAMP(L:118) |
09407-05406-000 |
from US $1.06 |
||
|
27
|
27
09407-05406-000 CLAMP(L:118) |
09407-05406-000 |
from US $1.06 |
||
|
28
|
28
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap |
09407-14403-000 |
from US $2.08 |
||
|
29
|
29
09407-18402-000 CLAMP(L:165)Clamp (l:165) |
09407-18402-000 |
from US $1.98 |
||
|
30
|
30
09404-06404-000
Clamp, fuel hose
|
09404-06404-000 |
— | ||
| replacements | |||||
|
30
|
30
09404-06434-000
CLAMP(L:80 T:1.0)
|
09404-06434-000 |
— | ||
|
30
|
30
09404-06433-000
CLAMP(L:80)
|
09404-06433-000 |
— | ||
|
30
|
30
09404-06436-000 Clamp(L:80) |
09404-06436-000 |
from US $2.13 |
||
|
30
|
30
09404-06036-000 Clamp(L:80) |
09404-06036-000 |
from US $1.82 |
||
|
31
|
31
03541-05168-000
Screw
|
03541-05168-000 |
— | ||
| replacement | |||||
|
31
|
31
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
31
|
31
03541-05128-000
Screw
|
03541-05128-000 |
— | ||
| replacement | |||||
|
31
|
31
03541-0512B-000 SCREW |
03541-0512B-000 |
from US $0.76 |
||
|
32
|
32
09407-14404-000
クランプ
|
09407-14404-000 |
— | ||
| replacement | |||||
|
32
|
32
09403-14310-000
Clamp, floor harness
|
09403-14310-000 |
— | ||
|
33
|
33
09408-00040-000
クランプ
|
09408-00040-000 |
— | ||
| replacement | |||||
|
33
|
33
09403-15403-000 CLAMP |
09403-15403-000 |
US $11 |
||
|
34
|
34
09403-16305-000
Clamp
MT |
09403-16305-000 |
— | ||
| replacement | |||||
|
34
|
34
09403-16306-000
CLAMP
MT |
09403-16306-000 |
— | ||
|
35
|
35
09404-06404-000
Clamp, fuel hose
|
09404-06404-000 |
— | ||
| replacements | |||||
|
35
|
35
09404-06434-000
CLAMP(L:80 T:1.0)
|
09404-06434-000 |
— | ||
|
35
|
35
09404-06433-000
CLAMP(L:80)
|
09404-06433-000 |
— | ||
|
35
|
35
09404-06436-000 Clamp(L:80) |
09404-06436-000 |
from US $2.13 |
||
|
35
|
35
09404-06036-000 Clamp(L:80) |
09404-06036-000 |
from US $1.82 |
||
|
36
|
36
09404-08413-000
Alternator w cl
|
09404-08413-000 |
— | ||
| replacement | |||||
|
36
|
36
09404-08420-000 CLAMP(L:120 T:1.0) |
09404-08420-000 |
from US $2.08 |
||
|
37
|
37
09404-08405-000
Clamp, drain tube
|
09404-08405-000 |
— | ||
| replacement | |||||
|
37
|
37
09404-08420-000 CLAMP(L:120 T:1.0) |
09404-08420-000 |
from US $2.08 |
||
|
38
|
38
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap |
09407-14403-000 |
from US $2.08 |
||
|
39
|
39
09407-14406-000
クランプ,L:130
|
09407-14406-000 |
— | ||
| replacement | |||||
|
39
|
39
09407-12404-000 CLAMP(L:140) |
09407-12404-000 |
US $2.08 |
||
|
40
|
40
09407-14405-000
クランプ,L:130
|
09407-14405-000 |
— | ||
| replacement | |||||
|
40
|
40
09407-12404-000 CLAMP(L:140) |
09407-12404-000 |
US $2.08 |
||
|
41
|
41
09407-05403-000 CLAMP,L:88 |
09407-05403-000 |
from US $0.91 |
||
|
42
|
42
36820-82100-000
Wire, room lamp lead
<-36820-63100 |
36820-82100-000 |
— | ||
|
43
|
43
36850-79500-000 WIRE,BACK DR SWITCHL:1850,~AB51S-104140 |
36850-79500-000 |
US $2.56 |
||
|
44
|
44
09308-30005-000 GROMMET |
09308-30005-000 |
US $14.70 |
||
|
45
|
45
36840-82100-000
Wire, licerse lamp lead
<-36840-82001 |
36840-82100-000 |
— | ||
|
46
|
46
09344-08002-000
ホース,8X9X70
|
09344-08002-000 |
— | ||
| replacement | |||||
|
46
|
46
09351-80902-600 PROTECTOR(8X9X600) |
09351-80902-600 |
US $3.28 |
||
|
47
|
47
36840-82010-000
Wire, fuel gauge
|
36840-82010-000 |
— | ||
| replacement | |||||
|
47
|
47
36840-60B50-000 WIRE,FUEL GAUGE |
36840-60B50-000 |
US $11.41 |
||
|
48
|
48
36930-78000-000
Cover, fuel lead wire
|
36930-78000-000 |
— | ||
|
49
|
49
09408-00027-000
Clamp, harness
|
09408-00027-000 |
— | ||
| replacement | |||||
|
49
|
49
09403-09403-000 CLAMP |
09403-09403-000 |
US $13.20 |
||
|
50
|
50
36895-82000-000
Wire, oil pressure switch
|
36895-82000-000 |
— | ||
| replacement | |||||
|
50
|
50
36895-60B00-000 WIRE,OIL PRESS SW |
36895-60B00-000 |
US $16.80 |
||
|
51
|
51
09404-10401-000
Clamp (l:52)
|
09404-10401-000 |
— | ||
| replacements | |||||
|
51
|
51
09404-10204-000
CLAMP(L:62)
|
09404-10204-000 |
— | ||
|
51
|
51
09404-10206-000 Clamp |
09404-10206-000 |
from US $3.21 |
||
|
52
|
52
36890-82000-000
ワイヤ,リヤデフォッガリード
W/REAR DEFOGGER |
36890-82000-000 |
— | ||
| replacement | |||||
|
52
|
52
36890-70C00-000 WIRE,RR DF LEADW/REAR DEFOGGER |
36890-70C00-000 |
US $3.28 |
||
|
53
|
53
09308-03005-000 GROMMETW/REAR DEFOGGER |
09308-03005-000 |
US $12.90 |
||
|
54
|
54
09344-08002-000
ホース,8X9X70
W/REAR DEFOGGER |
09344-08002-000 |
— | ||
| replacement | |||||
|
54
|
54
09351-80902-600 PROTECTOR(8X9X600)W/REAR DEFOGGER |
09351-80902-600 |
US $3.28 |
||
|
55
|
55
67627-70000-000
シール,ホール
N/REAR DEFOGGER |
67627-70000-000 |
— | ||
| replacement | |||||
|
55
|
55
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole N/REAR DEFOGGER |
84761-50X50-000 |
US $6.72 |
||
|
56
|
56
09250-25008-000 CAP(OD:31) |
09250-25008-000 |
US $13.20 |
||
|
57
|
57
09250-20014-000 CAP(OD:30) |
09250-20014-000 |
US $16.20 |
||
|
57
|
57
09250-25008-000 CAP(OD:31)AB51S-107686~,JSA0AA51F00100693~ |
09250-25008-000 |
US $13.20 |
||
|
58
|
58
36757-82100-000 FILM,DR WIRE HOLE |
36757-82100-000 |
US $1.03 |
||
|
59
|
59
09250-20011-000
キャップ
|
09250-20011-000 |
— | ||
| replacement | |||||
|
59
|
59
09250-20015-000 CAP(OD:28.5)Cap, air con harness |
09250-20015-000 |
from US $0.79 |
||
|
60
|
60
36875-82000-000
Wire, rear fog lamp lead
, Norway, Switzerland, Belgium, 2,,5, 6, Austria, Channel Islands |
36875-82000-000 |
— | ||
|
61
|
61
09404-06413-000
Clamp throttle
, Norway, Switzerland, Belgium, 2,,5, 6, Austria, Channel Islands |
09404-06413-000 |
— | ||
| replacements | |||||
|
61
|
61
09404-06432-000
CLAMP(L:65)
, Norway, Switzerland, Belgium, 2,,5, 6, Austria, Channel Islands |
09404-06432-000 |
— | ||
|
61
|
61
09404-06039-000 Clamp(L:65), Norway, Switzerland, Belgium, 2,,5, 6, Austria, Channel Islands |
09404-06039-000 |
from US $1.82 |
||
|
62
|
62
03211-05128-000
Screw
, Norway, Switzerland, Belgium, 2,,5, 6, Austria, Channel Islands |
03211-05128-000 |
— | ||
| replacement | |||||
|
62
|
62
03212-0512B-000 SCREW, Norway, Switzerland, Belgium, 2,,5, 6, Austria, Channel Islands |
03212-0512B-000 |
from US $0.80 |
||
|
63
|
63
08322-21057-000
Washer
, Norway, Switzerland, Belgium, 2,,5, 6, Austria, Channel Islands |
08322-21057-000 |
— | ||
| replacement | |||||
|
63
|
63
08322-01057-000 WASHERWasher, front hook holder , Norway, Switzerland, Belgium, 2,,5, 6, Austria, Channel Islands |
08322-01057-000 |
from US $0.80 |
||
|
64
|
64
36914-82000-000
Wire, fog lamp switch
Finland, Norway, Sweden |
36914-82000-000 |
— | ||
|
64
|
64
36914-82020-000
Wire, headlamp cleaner lead
Finland, Norway, Sweden,JSA0AA51F00100849~ |
36914-82020-000 |
— | ||
