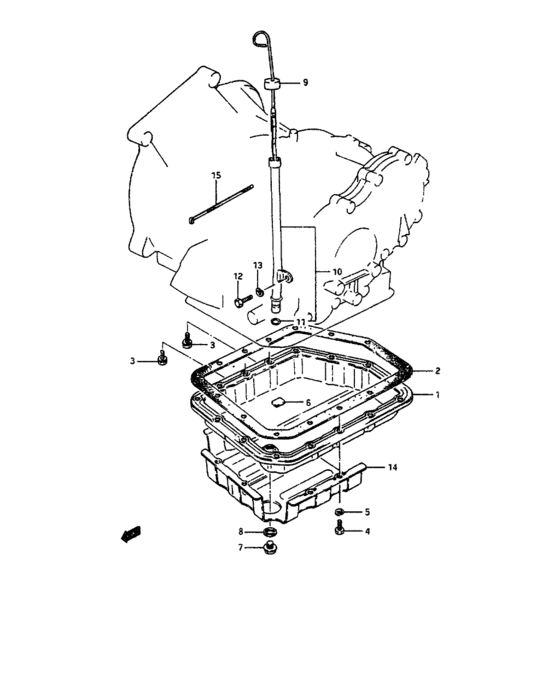

At oil pan (AT) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- GC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24761-82300-000
PAN,T/M OIL
|
24761-82300-000 |
— | ||
|
2
|
2
24784-82300-000
Gasket, oil pan
|
24784-82300-000 |
— | ||
| replacement | |||||
|
2
|
2
24784-82301-000 GASKET,T/M OIL PAN |
24784-82301-000 |
from US $15.21 |
||
|
3
|
3
09157-06015-000
Bolt
|
09157-06015-000 |
— | ||
|
4
|
4
01107-06163-000 Bolt m6x1x16 |
01107-06163-000 |
US $1.09 |
||
| replacement | |||||
|
4
|
4
01500-0616A-000 Bolt |
01500-0616A-000 |
from US $0.76 |
||
|
5
|
5
08321-21063-000 Lock washer |
08321-21063-000 |
US $1.07 |
||
| replacement | |||||
|
5
|
5
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
6
|
6
24861-78230-000 MAGNET,OIL CLEANER |
24861-78230-000 |
US $2.58 |
||
|
7
|
7
09247-10007-000 PLUG |
09247-10007-000 |
from US $2.43 |
||
|
8
|
8
09168-12009-000 GASKET(12X16.7X2) |
09168-12009-000 |
US $1.22 |
||
|
9
|
9
24830-82300-000
GAUGE,T/M OIL LEVEL
<-24830-82320 |
24830-82300-000 |
— | ||
|
10
|
10
24770-82301-000
Tube assy, oil filler
|
24770-82301-000 |
— | ||
| replacement | |||||
|
10
|
10
24770-52G00-000
TUBE ASSY,T/M OIL FILLER
|
24770-52G00-000 |
— | ||
|
13
|
13
08321-21063-000 Lock washer |
08321-21063-000 |
US $1.07 |
||
| replacement | |||||
|
13
|
13
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
14
|
14
24762-82300-000 COVER,OIL PAN,UNDER |
24762-82300-000 |
US $55.20 |
||
