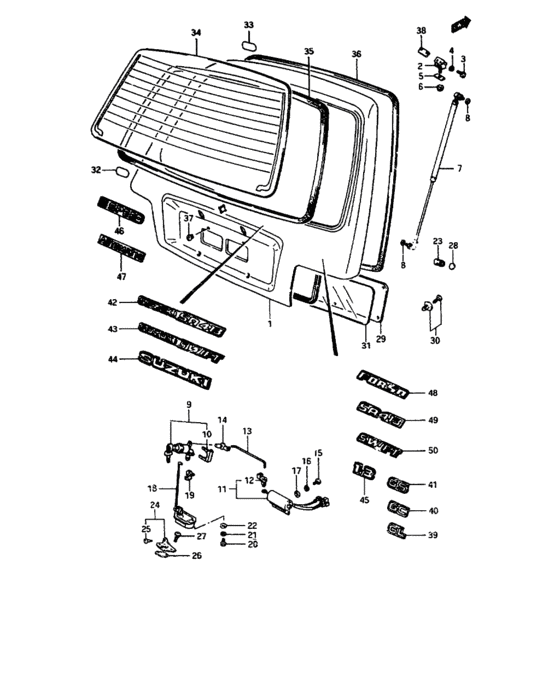

Back window (BACK WINDOW) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- GC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
69100-82120-000
Panel assy, back door
|
69100-82120-000 |
— | ||
|
1
|
1
69100-82100-000
Panel assy, back door
, Finland, Norway, Sweden, Switzerland, Belgium,,2, 5, 6, 7, Austria, Saudi Arabia,,Channel Islands, South Sea Islands, Israel, Iceland |
69100-82100-000 |
— | ||
|
2
|
2
69510-82000-000
Hinge,back door
|
69510-82000-000 |
— | ||
|
3
|
3
01107-06126-000
Bolt 6x12
|
01107-06126-000 |
— | ||
| replacement | |||||
|
3
|
3
01500-0612A-000 BOLT |
01500-0612A-000 |
from US $0.76 |
||
|
4
|
4
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
4
|
4
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
5
|
5
69571-82000-000
Packing, hinge female
|
69571-82000-000 |
— | ||
|
5
|
5
69572-82000-000
Packing, hinge female
|
69572-82000-000 |
— | ||
| replacement | |||||
|
5
|
5
69572-86000-000
New Genuine Part
|
69572-86000-000 |
— | ||
|
6
|
6
08361-25086-000
ナット
|
08361-25086-000 |
— | ||
| replacement | |||||
|
6
|
6
08361-2508A-000 NUT |
08361-2508A-000 |
from US $0.80 |
||
|
7
|
7
81850-82010-000
Balancer,back door
|
81850-82010-000 |
— | ||
|
8
|
8
09160-08078-000
Washer,8.5x18x3
|
09160-08078-000 |
— | ||
| replacement | |||||
|
8
|
8
09160-08122-000 WASHER(8.5X18X3.20)Washer, idle gear shaft no.2 (8.5x18x3.2) |
09160-08122-000 |
from US $3.77 |
||
|
9
|
9
82500-82831-000
Cylinder set, back door lock
<-82500-82830 |
82500-82831-000 |
— | ||
|
10
|
10
82587-82110-000
Retainer, cylinder
|
82587-82110-000 |
— | ||
|
11
|
11
82550-82002-000
Solenoid, back door latch
|
82550-82002-000 |
— | ||
| replacement | |||||
|
11
|
11
82551-82002-000
Solenoide, back door latch
|
82551-82002-000 |
— | ||
|
12
|
12
82559-82000-000
Pin,back door opener rod
|
82559-82000-000 |
— | ||
|
13
|
13
82592-82000-000
Rod, opener
|
82592-82000-000 |
— | ||
|
14
|
14
82593-82000-000
PIN,BACK DOOR OPENER ROD CYL
|
82593-82000-000 |
— | ||
|
15
|
15
02112-06126-000
Screw 6x12
|
02112-06126-000 |
— | ||
| replacements | |||||
|
15
|
15
02112-0612B-000 SCREWScrew, oil guide plate |
02112-0612B-000 |
from US $0.76 |
||
|
15
|
15
02112-0612A-000 SCREW |
02112-0612A-000 |
from US $0.76 |
||
|
16
|
16
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
16
|
16
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
17
|
17
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
17
|
17
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
18
|
18
82510-82100-000
Cylinder,back door latch lock
|
82510-82100-000 |
— | ||
|
19
|
19
82591-82000-000
Pin, latch lock cylinder rod
|
82591-82000-000 |
— | ||
| replacement | |||||
|
19
|
19
82591-84000-000 PIN,LATCH LOCK CYLINDER ROD |
82591-84000-000 |
US $1.80 |
||
|
20
|
20
02112-06126-000
Screw 6x12
|
02112-06126-000 |
— | ||
| replacements | |||||
|
20
|
20
02112-0612B-000 SCREWScrew, oil guide plate |
02112-0612B-000 |
from US $0.76 |
||
|
20
|
20
02112-0612A-000 SCREW |
02112-0612A-000 |
from US $0.76 |
||
|
21
|
21
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
21
|
21
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
22
|
22
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
22
|
22
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
23
|
23
72372-82000-000 CUSHION,BACK DR SIDECushion |
72372-82000-000 |
from US $2.12 |
||
|
24
|
24
82650-82000-000
Striker, back door latch
|
82650-82000-000 |
— | ||
|
25
|
25
78153-78201-000 CUSHION,BACK DR LOCK |
78153-78201-000 |
US $1.10 |
||
|
26
|
26
82681-82000-000
Spacer, latch striker
|
82681-82000-000 |
— | ||
|
27
|
27
09137-08004-000 SCREW(8X18) |
09137-08004-000 |
from US $0.90 |
||
| replacement | |||||
|
27
|
27
09137-08011-000 SCREW(8X18) |
09137-08011-000 |
US $1.44 |
||
|
28
|
28
82682-82001-000
Film, door side cushion
|
82682-82001-000 |
— | ||
| replacement | |||||
|
28
|
28
77192-80F00-000
FILM,TRUNK LID CUSHION
|
77192-80F00-000 |
— | ||
|
29
|
29
83770-82000-54Y
Trim, back door
|
83770-82000-54Y |
— | ||
|
29
|
29
83770-82000-56A
Trim, back door
|
83770-82000-56A |
— | ||
|
29
|
29
83770-82010-48Z
Trim, back door
Finland, Saudi Arabia |
83770-82010-48Z |
— | ||
|
29
|
29
83770-82010-55Z
Trim, back door
Finland, Saudi Arabia |
83770-82010-55Z |
— | ||
|
30
|
30
09409-07304-53A
Clip, back door trim
|
09409-07304-53A |
— | ||
| replacement | |||||
|
30
|
30
09409-07304-281
CLIP(BLACK)
|
09409-07304-281 |
— | ||
|
30
|
30
09409-07304-55Y
クリップ(グレー)
|
09409-07304-55Y |
— | ||
| replacement | |||||
|
30
|
30
09409-07304-281
CLIP(BLACK)
|
09409-07304-281 |
— | ||
|
31
|
31
83913-82000-000
Cover, back door sealing main
|
83913-82000-000 |
— | ||
| replacement | |||||
|
31
|
31
83911-60X52-000 COVER,DR SEALING |
83911-60X52-000 |
US $6.06 |
||
|
31
|
31
83913-82010-000
Cover, back door sealing main
Finland, Saudi Arabia |
83913-82010-000 |
— | ||
| replacement | |||||
|
31
|
31
83911-60X52-000 COVER,DR SEALINGFinland, Saudi Arabia |
83911-60X52-000 |
US $6.06 |
||
|
32
|
32
83916-82000-000
Tape, wire harness
|
83916-82000-000 |
— | ||
| replacement | |||||
|
32
|
32
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole |
84761-50X50-000 |
US $6.72 |
||
|
33
|
33
83917-82010-000
カバー,ドアシーリング,アッパ
|
83917-82010-000 |
— | ||
| replacement | |||||
|
33
|
33
83917-82010-5PK CAP,BACK DR HOLE |
83917-82010-5PK |
US $1.60 |
||
|
34
|
34
84571-82001-000
Glass, back window
CLEAR |
84571-82001-000 |
— | ||
|
34
|
34
84571-82012-000
Glass, back window
CLEAR, DEFOGGER |
84571-82012-000 |
— | ||
|
34
|
34
84571-82021-000
Glass, back window
BLUE |
84571-82021-000 |
— | ||
|
34
|
34
84571-82032-000
Glass, back window
BLUE, DEFOGGER |
84571-82032-000 |
— | ||
|
35
|
35
84623-82000-000
Weatherstrip,back door window
|
84623-82000-000 |
— | ||
|
36
|
36
84681-82000-281
ウェザストリップ,バックドアオープニング
|
84681-82000-281 |
— | ||
| replacement | |||||
|
36
|
36
84681-82000-5PK WEATHERSTRIP,BACK DR OPNG |
84681-82000-5PK |
US $64.03 |
||
|
37
|
37
09148-06007-000 NUT, Finland, Norway, Sweden, Switzerland, Belgium,,2, 5, 6, 7, Austria, Saudi Arabia,,Channel Islands, Israel, Iceland |
09148-06007-000 |
from US $0.86 |
||
|
38
|
38
69581-82000-000
スペーサ,バックドアヒンジ(T:1.0)
|
69581-82000-000 |
— | ||
|
38
|
38
69582-82000-000
Spacer, hinge
|
69582-82000-000 |
— | ||
|
39
|
39
77712-82010-000
Emblem, grade gl
GL |
77712-82010-000 |
— | ||
|
40
|
40
77713-82010-000
Emblem, grade gc
GC |
77713-82010-000 |
— | ||
|
41
|
41
77714-82010-000
Emblem, grade gs
GS |
77714-82010-000 |
— | ||
|
42
|
42
83971-82040-000
Emblem, suzuki sa413
|
83971-82040-000 |
— | ||
|
43
|
43
83971-82060-000
Emblem, suzuki swift
|
83971-82060-000 |
— | ||
|
44
|
44
83971-82010-000
Emblem, back door
|
83971-82010-000 |
— | ||
|
45
|
45
77731-82000-000 EMBLEM,1.3 |
77731-82000-000 |
US $8.68 |
||
|
46
|
46
77741-82000-95W
Emblem, 5 speed
|
77741-82000-95W |
— | ||
|
46
|
46
77741-82000-65M
Emblem, 5 speed
|
77741-82000-65M |
— | ||
| replacement | |||||
|
46
|
46
77741-82000-95W
Emblem, 5 speed
|
77741-82000-95W |
— | ||
|
47
|
47
77751-82000-000
Emblem, automatic
|
77751-82000-000 |
— | ||
|
48
|
48
77821-82040-019
Emblem, forsa
|
77821-82040-019 |
— | ||
|
49
|
49
77821-82660-019
Emblem, sa413
|
77821-82660-019 |
— | ||
|
49
|
49
77821-82660-064
Emblem, sa413
GS |
77821-82660-064 |
— | ||
|
50
|
50
77821-82000-019
Emblem, swift
|
77821-82000-019 |
— | ||
|
50
|
50
77821-82020-064
Emblem, swift
GS |
77821-82020-064 |
— | ||
