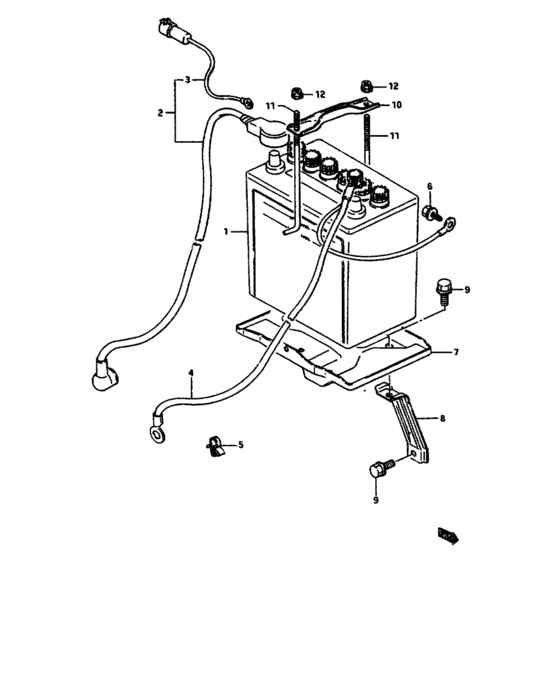

Battery (AT) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- GC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33610-82120-000
Battery assy
|
33610-82120-000 |
— | ||
| replacement | |||||
|
1
|
1
33610-821V1-000
BATTERY ASSY,55B24R (Cannot supply)
|
33610-821V1-000 |
— | ||
|
2
|
2
33800-82000-000
Cable, starting motor
|
33800-82000-000 |
— | ||
|
3
|
3
36740-82000-000 LINK ASSY,FUSIBLE(GREEN) |
36740-82000-000 |
US $13.44 |
||
|
4
|
4
33850-82110-000
Cable, battery ground
|
33850-82110-000 |
— | ||
|
5
|
5
09408-00061-000
Clamp, decomp read
|
09408-00061-000 |
— | ||
| replacement | |||||
|
5
|
5
09403-08405-000 CLAMPClamp, decomp lead |
09403-08405-000 |
from US $3.47 |
||
|
6
|
6
09115-06001-000
Bolt, lh
|
09115-06001-000 |
— | ||
| replacement | |||||
|
6
|
6
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
|
7
|
7
58750-82300-000
Bracket, battery
|
58750-82300-000 |
— | ||
|
8
|
8
58761-82300-000
Stay, battery bracket
|
58761-82300-000 |
— | ||
|
9
|
9
01534-08123-000
ボルト
|
01534-08123-000 |
— | ||
| replacement | |||||
|
9
|
9
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.96 |
||
|
10
|
10
72511-82000-000
Band, battery
|
72511-82000-000 |
— | ||
| replacement | |||||
|
10
|
10
72511-86000-000 BAND,BATTERY |
72511-86000-000 |
US $10.94 |
||
|
11
|
11
72512-82010-000
Bolt, battery
|
72512-82010-000 |
— | ||
| replacement | |||||
|
11
|
11
72512-82011-000 BOLT,BATTERY |
72512-82011-000 |
US $3.04 |
||
|
12
|
12
08361-15063-000
Nut
|
08361-15063-000 |
— | ||
| replacement | |||||
|
12
|
12
08361-1506A-000 NUT |
08361-1506A-000 |
from US $0.74 |
||
