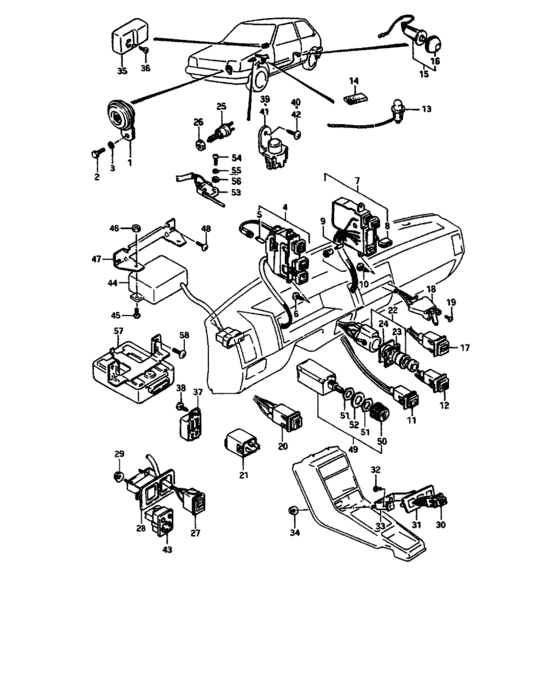

Electrical control (ELECTRICAL CONTROL) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- GC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38500-80010-000
Horn assy
|
38500-80010-000 |
— | ||
| replacement | |||||
|
1
|
1
38500-60G00-000 HORN ASSY |
38500-60G00-000 |
US $66.40 |
||
|
1
|
1
38500-80101-000
Horn assy
, Finland, Norway, Sweden, Switzerland, Belgium, 2,,5, 6, Austria, Saudi Arabia, Channel Islands, Israel,<-38500-80100 |
38500-80101-000 |
— | ||
| replacement | |||||
|
1
|
1
38500-60G00-000 HORN ASSY, Finland, Norway, Sweden, Switzerland, Belgium, 2,,5, 6, Austria, Saudi Arabia, Channel Islands, Israel,<-38500-80100 |
38500-60G00-000 |
US $66.40 |
||
|
2
|
2
01107-08123-000 ボルト |
01107-08123-000 |
US $1.23 |
||
| replacement | |||||
|
2
|
2
01500-0812A-000 Bolt |
01500-0812A-000 |
from US $0.77 |
||
|
3
|
3
08321-21083-000
Washr,lk8.2x15.
|
08321-21083-000 |
— | ||
| replacements | |||||
|
3
|
3
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
3
|
3
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
4
|
4
37210-82013-000
Switch assy,lighting
LHD, <-37210-82012 |
37210-82013-000 |
— | ||
|
4
|
4
37210-82002-000
Switch assy, lighting
RHD |
37210-82002-000 |
— | ||
|
5
|
5
37215-82000-000
Bulb
|
37215-82000-000 |
— | ||
|
6
|
6
03541-05168-000
Screw
|
03541-05168-000 |
— | ||
| replacement | |||||
|
6
|
6
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
7
|
7
37310-82130-000
Switch, front wiper/washer
LHD |
37310-82130-000 |
— | ||
|
7
|
7
37310-82100-000
Switch, front wiper/washer
RHD |
37310-82100-000 |
— | ||
|
8
|
8
37313-82000-000
Knob, wiper switch
|
37313-82000-000 |
— | ||
|
9
|
9
37314-82000-000
Bulb
|
37314-82000-000 |
— | ||
|
10
|
10
03541-05168-000
Screw
|
03541-05168-000 |
— | ||
| replacement | |||||
|
10
|
10
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
11
|
11
37370-82000-000
Switch assy, rear wiper
|
37370-82000-000 |
— | ||
|
12
|
12
37380-82000-000
Switch assy, rear washer
|
37380-82000-000 |
— | ||
|
13
|
13
37940-79000-000
スイッチアッシ,パーキングブレーキ
|
37940-79000-000 |
— | ||
| replacement | |||||
|
13
|
13
37940-50A00-000 SWITCH ASSY,PARKING BRAKE |
37940-50A00-000 |
US $7.73 |
||
|
14
|
14
77591-75000-000 PAD |
77591-75000-000 |
US $2.28 |
||
|
15
|
15
37670-82001-000
Switch assy, door
|
37670-82001-000 |
— | ||
| replacement | |||||
|
15
|
15
37670-60A02-000 SWITCH ASSY,DOOR |
37670-60A02-000 |
from US $12.76 |
||
|
16
|
16
37672-82000-000
Boot,door switch
|
37672-82000-000 |
— | ||
|
17
|
17
37860-82001-000
Switch assy, defogger
W/REAR DEFOGGER |
37860-82001-000 |
— | ||
|
18
|
18
37870-82000-000
SWITCH ASSY,HTR FAN MOTOR
|
37870-82000-000 |
— | ||
|
19
|
19
02112-04087-000 SCREW |
02112-04087-000 |
from US $0.80 |
||
|
20
|
20
37280-82000-000
Switch assy, rear fog lamp
, Norway, Switzerland, Belgium, 2,,5, 6, Austria, Channel Islands |
37280-82000-000 |
— | ||
|
21
|
21
38610-78304-000
Relay, turn signe1/4 way
<-38610-78303 |
38610-78304-000 |
— | ||
| replacement | |||||
|
21
|
21
38610-76G00-000 RELAY,TURN SIGNAL&4WAYRelay, turnsignal & 4 way <-38610-78303 |
38610-76G00-000 |
US $56.80 |
||
|
22
|
22
39400-82812-000
LIGHTER SET,CIGARETTE
|
39400-82812-000 |
— | ||
|
23
|
23
39471-82000-000
Rim, cigarette lighter
|
39471-82000-000 |
— | ||
|
24
|
24
39472-82000-000 WASHER,CIGARETTE LIGHTER |
39472-82000-000 |
US $1.25 |
||
|
25
|
25
37740-66010-000 SWITCH ASSY,BRAKE LAMP |
37740-66010-000 |
US $19.20 |
||
|
26
|
26
08310-22106-000
Nut
|
08310-22106-000 |
— | ||
| replacements | |||||
|
26
|
26
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
26
|
26
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
27
|
27
37500-82000-000
Switch assy, back door opener
|
37500-82000-000 |
— | ||
| replacement | |||||
|
27
|
27
37500-84000-000
Switch assy,back door opner
|
37500-84000-000 |
— | ||
|
28
|
28
37505-82000-000
Retainer, opener
|
37505-82000-000 |
— | ||
|
29
|
29
08316-16056-000
Nut
|
08316-16056-000 |
— | ||
| replacement | |||||
|
29
|
29
08316-1005A-000 NUT |
08316-1005A-000 |
from US $0.77 |
||
|
30
|
30
37930-82000-000
Switch assy, headlamp cleaner
Finland, Norway, Sweden |
37930-82000-000 |
— | ||
|
30
|
30
37270-82000-000
Switch assy, front fog lamp
GS |
37270-82000-000 |
— | ||
|
31
|
31
37936-82000-000
Retainer, front fog lamp
Finland, Norway, Sweden |
37936-82000-000 |
— | ||
|
32
|
32
09132-03003-000
Screw
Finland, Norway, Sweden |
09132-03003-000 |
— | ||
| replacement | |||||
|
32
|
32
09132-03003-XC0 SCREW(3X10)Finland, Norway, Sweden |
09132-03003-XC0 |
US $19.50 |
||
|
33
|
33
37937-82000-000
Bracket, front fog lamp
Finland, Norway, Sweden |
37937-82000-000 |
— | ||
|
34
|
34
08316-16056-000
Nut
Finland, Norway, Sweden |
08316-16056-000 |
— | ||
| replacement | |||||
|
34
|
34
08316-1005A-000 NUTFinland, Norway, Sweden |
08316-1005A-000 |
from US $0.77 |
||
|
35
|
35
38630-80000-000
CONTROLLER ASSY,WASHER
Finland, Norway, Sweden |
38630-80000-000 |
— | ||
|
36
|
36
03141-06166-000
New Genuine Part
Finland, Norway, Sweden |
03141-06166-000 |
— | ||
| replacement | |||||
|
36
|
36
03141-0616A-000 SCREWFinland, Norway, Sweden |
03141-0616A-000 |
from US $0.76 |
||
|
37
|
37
38590-82000-000
Buzzer assy, door warning
Saudi Arabia |
38590-82000-000 |
— | ||
| replacement | |||||
|
37
|
37
34160-67010-000
BUZZER ASSY
Saudi Arabia |
34160-67010-000 |
— | ||
|
38
|
38
03541-05168-000
Screw
Saudi Arabia |
03541-05168-000 |
— | ||
| replacement | |||||
|
38
|
38
03541-0516A-000 SCREWSaudi Arabia |
03541-0516A-000 |
from US $0.68 |
||
|
39
|
39
38860-78400-000
Relay assy
GS |
38860-78400-000 |
— | ||
| replacement | |||||
|
39
|
39
38850-50F50-000 RELAY ASSY,MAIN/FUEL PUMPGS |
38850-50F50-000 |
from US $34 |
||
|
40
|
40
03141-06166-000
New Genuine Part
GS |
03141-06166-000 |
— | ||
| replacement | |||||
|
40
|
40
03141-0616A-000 SCREWGS |
03141-0616A-000 |
from US $0.76 |
||
|
41
|
41
38770-73300-000
RELAY ASSY,HAZARD WRN IND
GS:Finland, Sweden |
38770-73300-000 |
— | ||
|
42
|
42
03141-06166-000
New Genuine Part
GS:Finland, Sweden |
03141-06166-000 |
— | ||
| replacement | |||||
|
42
|
42
03141-0616A-000 SCREWGS:Finland, Sweden |
03141-0616A-000 |
from US $0.76 |
||
|
43
|
43
86191-78350-000
Switch assy, rear view
GS |
86191-78350-000 |
— | ||
|
44
|
44
38660-82100-000 CONTROLLER ASSY,RUNNING LIGHTNorway, Sweden,<-38660-82001 |
38660-82100-000 |
US $118.13 |
||
|
44
|
44
38670-82000-000
Controller, fog lamp
GS:Switzerland,JSA0AA51S00105352~ |
38670-82000-000 |
— | ||
|
45
|
45
02142-06108-000
6 x 10 screw
Norway, Sweden |
02142-06108-000 |
— | ||
| replacement | |||||
|
45
|
45
02142-06107-000 SCREWNorway, Sweden |
02142-06107-000 |
from US $0.80 |
||
|
46
|
46
08310-22067-000 NutNorway, Sweden |
08310-22067-000 |
US $1.98 |
||
| replacement | |||||
|
46
|
46
08310-00067-000 NUTNorway, Sweden |
08310-00067-000 |
from US $0.76 |
||
|
47
|
47
38667-82000-000
Bracket
Norway, Sweden |
38667-82000-000 |
— | ||
|
48
|
48
02142-06127-000 SCREWNorway, Sweden |
02142-06127-000 |
from US $0.76 |
||
|
49
|
49
39600-82010-000
Controller assy, illum
New Zealand |
39600-82010-000 |
— | ||
| replacement | |||||
|
49
|
49
39600-82021-000 CONTROLLER ASSY,ILLUMNew Zealand |
39600-82021-000 |
US $264 |
||
|
50
|
50
39611-82010-000
Knob
New Zealand |
39611-82010-000 |
— | ||
|
51
|
51
39612-82010-000
ナット
New Zealand |
39612-82010-000 |
— | ||
|
52
|
52
39613-82010-000
ワッシャ
New Zealand |
39613-82010-000 |
— | ||
|
53
|
53
37980-78100-000
Switch assy,accel
AT |
37980-78100-000 |
— | ||
|
54
|
54
02112-03168-000
Screw
AT |
02112-03168-000 |
— | ||
| replacement | |||||
|
54
|
54
02112-0316B-000 SCREWAT |
02112-0316B-000 |
from US $3.71 |
||
|
55
|
55
08321-21038-000
Lock washer
AT |
08321-21038-000 |
— | ||
| replacements | |||||
|
55
|
55
08321-2103B-000 WASHER,LOCKAT |
08321-2103B-000 |
from US $7.70 |
||
|
55
|
55
09162-03001-000 WASHER,LOCKLock washer AT |
09162-03001-000 |
from US $1.85 |
||
|
56
|
56
08322-21038-000
Washer
AT |
08322-21038-000 |
— | ||
| replacement | |||||
|
56
|
56
08322-01037-000 WASHERAT |
08322-01037-000 |
from US $3.04 |
||
|
57
|
57
38880-82101-000
Controller assy, at
AT |
38880-82101-000 |
— | ||
|
58
|
58
02142-06167-000 SCREWScrew AT |
02142-06167-000 |
from US $0.76 |
||
