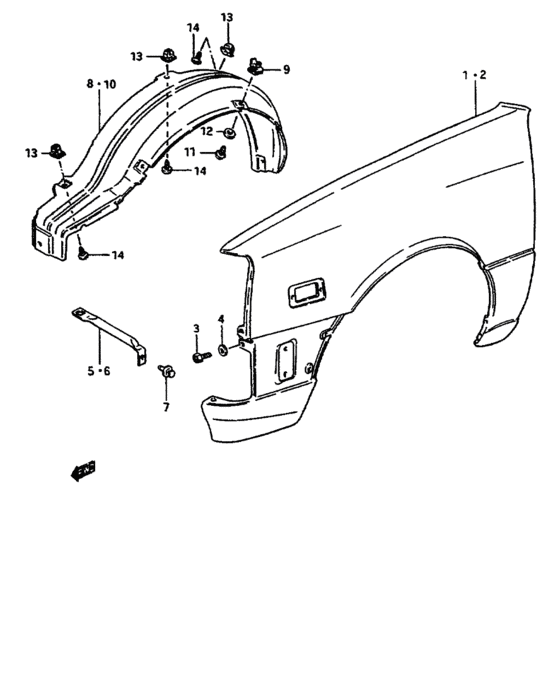

Fender and lining (FENDER AND LINING) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- GC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57611-82011-000
Panel, front fender rh
|
57611-82011-000 |
— | ||
|
1
|
1
57611-82041-000
Panel, front fender rh
GS |
57611-82041-000 |
— | ||
|
2
|
2
57711-82011-000
Panel, front fender lh
|
57711-82011-000 |
— | ||
| replacement | |||||
|
2
|
2
57711-82X50-000
Panel,front fender,l
|
57711-82X50-000 |
— | ||
|
2
|
2
57711-82041-000
Panel, front fender lh
GS |
57711-82041-000 |
— | ||
| replacement | |||||
|
2
|
2
57711-82X50-000
Panel,front fender,l
GS |
57711-82X50-000 |
— | ||
|
3
|
3
09128-06031-000
スクリュ
|
09128-06031-000 |
— | ||
| replacement | |||||
|
3
|
3
09128-06044-000 SCREW(6X10)Screw, oil level (6x10) |
09128-06044-000 |
from US $1.22 |
||
|
4
|
4
08322-21067-000
Washer
|
08322-21067-000 |
— | ||
| replacement | |||||
|
4
|
4
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.76 |
||
|
5
|
5
57621-82000-000
Stay, front fender panel rh
GS |
57621-82000-000 |
— | ||
|
6
|
6
57721-82000-000
Stay, front fender panel lh
GS |
57721-82000-000 |
— | ||
|
7
|
7
09409-07305-000 ClampGS |
09409-07305-000 |
US $1.87 |
||
| replacement | |||||
|
7
|
7
09409-07305-5PK CLIP(BLACK)Clip (black) GS |
09409-07305-5PK |
from US $1.76 |
||
|
8
|
8
72321-82000-000
Lining, front fender rh
|
72321-82000-000 |
— | ||
| replacement | |||||
|
8
|
8
72321-86000-000
LINING,FR FENDER,R
|
72321-86000-000 |
— | ||
|
9
|
9
72322-82000-000
NUT,FR FENDER LINING
|
72322-82000-000 |
— | ||
|
10
|
10
72331-82000-000
Lining, front fender lh
|
72331-82000-000 |
— | ||
| replacement | |||||
|
10
|
10
72331-86000-000 LINING,FR FENDER,L |
72331-86000-000 |
US $167.20 |
||
|
11
|
11
03241-05123-000
Screw
|
03241-05123-000 |
— | ||
| replacement | |||||
|
11
|
11
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
12
|
12
09160-05002-000 Washer |
09160-05002-000 |
US $1.82 |
||
| replacement | |||||
|
12
|
12
09160-05045-000 WASHER(5.5X18X1)Washer, vacuum sw valve |
09160-05045-000 |
from US $0.86 |
||
|
13
|
13
09148-05018-000 NUT<-09148-05016 |
09148-05018-000 |
from US $0.63 |
||
|
14
|
14
03141-05163-000
Screw
|
03141-05163-000 |
— | ||
| replacement | |||||
|
14
|
14
03141-0516A-000 SCREW |
03141-0516A-000 |
from US $0.80 |
||
