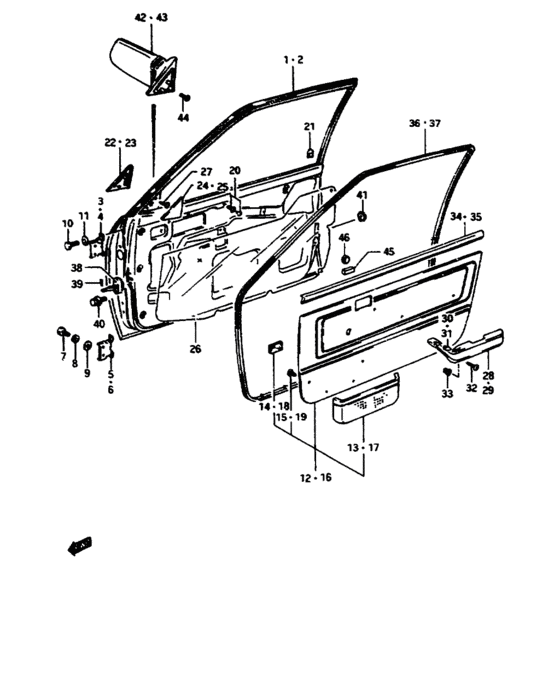

Front door panel (5DR) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- GC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68001-82210-000
Panel assy, door rh
|
68001-82210-000 |
— | ||
| replacement | |||||
|
1
|
1
68001-82200-000
PANEL ASSY,FRONT DOOR,R
|
68001-82200-000 |
— | ||
|
1
|
1
68001-82200-000
PANEL ASSY,FRONT DOOR,R
Saudi Arabia |
68001-82200-000 |
— | ||
|
1
|
1
68001-82220-000
Panel assy, door rh
, Finland, Norway, Sweden, Switzerland, Belgium,,2, 5, 6, 7, Austria, Channel Islands,,South Sea Islands, Israel, Iceland |
68001-82220-000 |
— | ||
| replacement | |||||
|
1
|
1
68001-82200-000
PANEL ASSY,FRONT DOOR,R
, Finland, Norway, Sweden, Switzerland, Belgium,,2, 5, 6, 7, Austria, Channel Islands,,South Sea Islands, Israel, Iceland |
68001-82200-000 |
— | ||
|
2
|
2
68002-82211-000
Panel assy, door lh
|
68002-82211-000 |
— | ||
| replacement | |||||
|
2
|
2
68002-82201-000 PANEL ASSY,FRONT DOOR,L |
68002-82201-000 |
US $401.28 |
||
|
2
|
2
68002-82201-000 PANEL ASSY,FRONT DOOR,LSaudi Arabia |
68002-82201-000 |
US $401.28 |
||
|
2
|
2
68002-82221-000
Panel assy, door lh
, Finland, Norway, Sweden, Switzerland, Belgium,,2, 5, 6, 7, Austria, Channel Islands,,South Sea Islands, Israel, Iceland |
68002-82221-000 |
— | ||
| replacement | |||||
|
2
|
2
68002-82201-000 PANEL ASSY,FRONT DOOR,L, Finland, Norway, Sweden, Switzerland, Belgium,,2, 5, 6, 7, Austria, Channel Islands,,South Sea Islands, Israel, Iceland |
68002-82201-000 |
US $401.28 |
||
|
3
|
3
69310-82100-000
HINGE,SIDE DOOR UPR,R
|
69310-82100-000 |
— | ||
|
4
|
4
69320-62100-000
Hinge, side door upper lh
|
69320-62100-000 |
— | ||
|
5
|
5
69330-82100-000
Hinge, door lower rh
|
69330-82100-000 |
— | ||
| replacement | |||||
|
5
|
5
69320-82100-000
HINGE,SIDE DOOR UPR,L
|
69320-82100-000 |
— | ||
|
6
|
6
69340-82100-000
Hinge, door lower lh
|
69340-82100-000 |
— | ||
| replacement | |||||
|
6
|
6
69310-82100-000
HINGE,SIDE DOOR UPR,R
|
69310-82100-000 |
— | ||
|
7
|
7
09100-08167-000
ボルト,8X22
|
09100-08167-000 |
— | ||
| replacement | |||||
|
7
|
7
09118-08060-000 BOLT(8X22) |
09118-08060-000 |
US $1.28 |
||
|
8
|
8
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
8
|
8
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
8
|
8
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
9
|
9
08322-21086-000
Washer 8mm
|
08322-21086-000 |
— | ||
| replacements | |||||
|
9
|
9
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
9
|
9
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
|
10
|
10
01107-08206-000
Bolt
|
01107-08206-000 |
— | ||
| replacement | |||||
|
10
|
10
01500-0820A-000 Bolt |
01500-0820A-000 |
from US $0.80 |
||
|
11
|
11
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
11
|
11
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
11
|
11
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
12
|
12
83710-82300-54Y
Trim, door rh
GL |
83710-82300-54Y |
— | ||
|
12
|
12
83710-82300-56A
Trim, door rh
GL |
83710-82300-56A |
— | ||
|
12
|
12
83710-82300-7KT
Trim, door rh
GC |
83710-82300-7KT |
— | ||
|
12
|
12
83710-82300-7KV
Trim, door rh
GC |
83710-82300-7KV |
— | ||
|
12
|
12
83710-82300-7KA
Trim, door rh
GC:Sinagpore |
83710-82300-7KA |
— | ||
|
12
|
12
83710-82300-7KB
Trim, door rh
GC:Sinagpore |
83710-82300-7KB |
— | ||
|
12
|
12
83710-82330-48Z
Trim, door rh
GL:Finland |
83710-82330-48Z |
— | ||
|
12
|
12
83710-82330-55Z
Trim, door rh
GL:Finland |
83710-82330-55Z |
— | ||
|
12
|
12
83710-82330-7KU
Trim, door rh
GC:Finland, Saudi Arabia |
83710-82330-7KU |
— | ||
|
12
|
12
83710-82330-7KW
Trim, door rh
GC:Finland, Saudi Arabia |
83710-82330-7KW |
— | ||
|
13
|
13
83715-82000-53A
Pocket, door trim
|
83715-82000-53A |
— | ||
| replacement | |||||
|
13
|
13
83715-82000-55Y
POCKET,DOOR TRIM
|
83715-82000-55Y |
— | ||
|
13
|
13
83715-82000-55Y
POCKET,DOOR TRIM
|
83715-82000-55Y |
— | ||
|
14
|
14
77591-75000-000 PAD |
77591-75000-000 |
US $2.28 |
||
|
15
|
15
03241-04126-000
Screw l:12
|
03241-04126-000 |
— | ||
|
16
|
16
83720-82300-54Y
Trim, door lh
GL |
83720-82300-54Y |
— | ||
|
16
|
16
83720-82300-56A
Trim, door lh
GL |
83720-82300-56A |
— | ||
|
16
|
16
83720-82300-7KT
Trim, door lh
GC |
83720-82300-7KT |
— | ||
| replacements | |||||
|
16
|
16
83715-82000-55Y
POCKET,DOOR TRIM
GC |
83715-82000-55Y |
— | ||
|
16
|
16
03241-0512A-000 SCREWGC |
03241-0512A-000 |
from US $0.68 |
||
|
16
|
16
03242-0412B-000 SCREWGC |
03242-0412B-000 |
from US $0.80 |
||
|
16
|
16
03241-04126-000
Screw l:12
GC |
03241-04126-000 |
— | ||
|
16
|
16
83720-82300-7KV
Trim, door lh
GC |
83720-82300-7KV |
— | ||
| replacements | |||||
|
16
|
16
83715-82000-55Y
POCKET,DOOR TRIM
GC |
83715-82000-55Y |
— | ||
|
16
|
16
03241-0512A-000 SCREWGC |
03241-0512A-000 |
from US $0.68 |
||
|
16
|
16
03242-0412B-000 SCREWGC |
03242-0412B-000 |
from US $0.80 |
||
|
16
|
16
03241-04126-000
Screw l:12
GC |
03241-04126-000 |
— | ||
|
16
|
16
83720-82300-7KA
Trim, door lh
GC:Sinagpore |
83720-82300-7KA |
— | ||
|
16
|
16
83720-82300-7KB
Trim, door lh
GC:Sinagpore |
83720-82300-7KB |
— | ||
|
16
|
16
83720-82330-48Z
Trim, door lh
GL:Finland |
83720-82330-48Z |
— | ||
|
16
|
16
83720-82330-55Z
Trim, door lh
GL:Finland |
83720-82330-55Z |
— | ||
|
16
|
16
83720-82330-7KU
Trim, door lh
GC:Finland |
83720-82330-7KU |
— | ||
|
16
|
16
83720-82330-7KW
Trim, door lh
GC:Finland |
83720-82330-7KW |
— | ||
|
17
|
17
83715-82000-53A
Pocket, door trim
|
83715-82000-53A |
— | ||
| replacement | |||||
|
17
|
17
83715-82000-55Y
POCKET,DOOR TRIM
|
83715-82000-55Y |
— | ||
|
17
|
17
83715-82000-55Y
POCKET,DOOR TRIM
|
83715-82000-55Y |
— | ||
|
18
|
18
77591-75000-000 PAD |
77591-75000-000 |
US $2.28 |
||
|
19
|
19
03241-04126-000
Screw l:12
|
03241-04126-000 |
— | ||
|
20
|
20
09409-08309-000
CLIP
<-09409-08307 |
09409-08309-000 |
— | ||
| replacement | |||||
|
20
|
20
09409-08320-000 CLIP<-09409-08307 |
09409-08320-000 |
from US $1.15 |
||
|
21
|
21
78991-78000-000
クリップ,スカルプ
|
78991-78000-000 |
— | ||
| replacement | |||||
|
21
|
21
78991-78001-000 CLIP,DR OUT WEATHERSTRIP |
78991-78001-000 |
from US $1.52 |
||
|
22
|
22
83951-82000-281 GARNISH,FR SASH BRKT OTR,R |
83951-82000-281 |
US $4.56 |
||
| replacement | |||||
|
22
|
22
83951-82000-5PK
New Genuine Part
|
83951-82000-5PK |
— | ||
|
23
|
23
83956-82000-281
Garnish, fr sash brkt out, lh
|
83956-82000-281 |
— | ||
|
24
|
24
83961-82000-281
Garnish, sash brkt inner rh
|
83961-82000-281 |
— | ||
| replacement | |||||
|
24
|
24
83961-82000-5PK
GARNISH,FR SASH INR,R
|
83961-82000-5PK |
— | ||
|
25
|
25
83966-82000-281
Garnish, sash brkt inner rh
|
83966-82000-281 |
— | ||
| replacement | |||||
|
25
|
25
83966-82000-5PK
GARNISH,FR SASH INR,L
|
83966-82000-5PK |
— | ||
|
26
|
26
83911-82200-000
Cover, door sealing
|
83911-82200-000 |
— | ||
| replacement | |||||
|
26
|
26
83911-60X52-000 COVER,DR SEALING |
83911-60X52-000 |
US $6.06 |
||
|
26
|
26
83911-82210-000
Cover, door sealing
Finland, Saudi Arabia |
83911-82210-000 |
— | ||
| replacement | |||||
|
26
|
26
83911-60X52-000 COVER,DR SEALINGFinland, Saudi Arabia |
83911-60X52-000 |
US $6.06 |
||
|
27
|
27
03241-04125-000
Screw
|
03241-04125-000 |
— | ||
| replacement | |||||
|
27
|
27
03242-0412B-000 SCREW |
03242-0412B-000 |
from US $0.80 |
||
|
28
|
28
84450-82010-53A
Armrest, door rh
|
84450-82010-53A |
— | ||
|
28
|
28
84450-82010-55Y
Armrest, door rh
|
84450-82010-55Y |
— | ||
|
29
|
29
84460-82010-53A
Armrest, door lh
|
84460-82010-53A |
— | ||
|
29
|
29
84460-82010-55Y
Armrest, door lh
|
84460-82010-55Y |
— | ||
|
30
|
30
84459-82010-53A
Cap, armrest rh
|
84459-82010-53A |
— | ||
|
30
|
30
84459-82010-55Y
Cap, armrest rh
|
84459-82010-55Y |
— | ||
|
31
|
31
84469-82010-53A
Cap, armrest lh
|
84469-82010-53A |
— | ||
|
31
|
31
84469-82010-55Y
Cap, armrest lh
|
84469-82010-55Y |
— | ||
|
32
|
32
03241-06256-000
スクリュ
|
03241-06256-000 |
— | ||
| replacement | |||||
|
32
|
32
03241-0625A-000 SCREW |
03241-0625A-000 |
from US $1.87 |
||
|
33
|
33
09148-06007-000 NUT |
09148-06007-000 |
from US $0.86 |
||
|
34
|
34
83791-82200-56V
Garnish, trim upper rh
|
83791-82200-56V |
— | ||
| replacement | |||||
|
34
|
34
83791-82200-4PM
Garnish, upper rh
|
83791-82200-4PM |
— | ||
|
34
|
34
83791-82200-55Z
Garnish, trim upper rh
|
83791-82200-55Z |
— | ||
| replacement | |||||
|
34
|
34
83791-82200-4PM
Garnish, upper rh
|
83791-82200-4PM |
— | ||
|
35
|
35
83792-82200-56V
Garnish, trim upper lh
|
83792-82200-56V |
— | ||
| replacement | |||||
|
35
|
35
83792-82200-4PM
Garnish, upper lh
|
83792-82200-4PM |
— | ||
|
35
|
35
83792-82200-55Z
Garnish, trim upper lh
|
83792-82200-55Z |
— | ||
| replacement | |||||
|
35
|
35
83792-82200-4PM
Garnish, upper lh
|
83792-82200-4PM |
— | ||
|
36
|
36
84641-82200-000 WEATHERSTRIP,FR DR OPNG,R |
84641-82200-000 |
US $78.75 |
||
|
37
|
37
84651-82200-000 WEATHERSTRIP,FR DR OPNG,L |
84651-82200-000 |
US $78.75 |
||
|
38
|
38
81810-82000-000
STOP,FRONT DOOR OPEN
|
81810-82000-000 |
— | ||
|
39
|
39
81831-82000-000
ピン,オープンストップボディ
|
81831-82000-000 |
— | ||
| replacement | |||||
|
39
|
39
81831-70B00-000 PIN,DOOR OPEN STOPPER BODY |
81831-70B00-000 |
US $1.60 |
||
|
40
|
40
81891-84000-000
ボルト
|
81891-84000-000 |
— | ||
| replacements | |||||
|
40
|
40
01580-0625A-000 Bolt |
01580-0625A-000 |
US $0.96 |
||
|
40
|
40
01580-06253-000
Bolt, ignition
|
01580-06253-000 |
— | ||
|
41
|
41
83919-82000-000 PLUG,DOOR INNER REARCap, floor drain |
83919-82000-000 |
US $1.60 |
||
|
42
|
42
84701-82050-281
Mirror assy, door rh
|
84701-82050-281 |
— | ||
| replacement | |||||
|
42
|
42
84701-82050-5PK MIRROR ASSY,RR VIEW,R |
84701-82050-5PK |
US $90.53 |
||
|
42
|
42
84701-82060-281 MIRROR ASSY,RR VIEW,R, Finland, Norway, Sweden, Switzerland, Belgium,,2, 5, 6, Austria, Channel Islands, Israel |
84701-82060-281 |
US $117.39 |
||
|
43
|
43
84702-82050-281
Mirror assy, door lh
|
84702-82050-281 |
— | ||
| replacement | |||||
|
43
|
43
84702-82050-5PK MIRROR ASSY,RR VIEW,L |
84702-82050-5PK |
US $90.53 |
||
|
43
|
43
84702-82060-281
MIRROR ASSY,RR VIEW,L
, Finland, Norway, Sweden, Switzerland, Belgium,,2, 5, 6, Austria, Channel Islands, Israel |
84702-82060-281 |
— | ||
|
44
|
44
02142-05126-000
Screw
|
02142-05126-000 |
— | ||
| replacement | |||||
|
44
|
44
02142-0512A-000 SCREWScrew, lower |
02142-0512A-000 |
from US $0.80 |
||
|
45
|
45
82699-82000-000
クッション,ドアインナコーナ
|
82699-82000-000 |
— | ||
|
46
|
46
82699-82200-000 CUSHION,FR DR INNER |
82699-82200-000 |
US $4.12 |
||
| replacement | |||||
|
46
|
46
81472-60B00-000 CUSHION,QUARTER WINDOW GL UP |
81472-60B00-000 |
US $3.21 |
||
