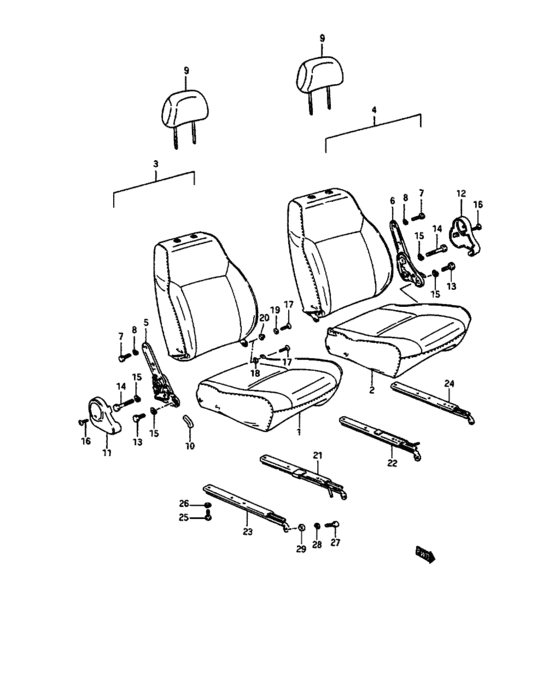

Front seat (VAN TYPE) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- GC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
85101-82060-96E
Cushion assy, seat rh
->85101-82062-96E,USED WITH 09160-06039,AND 85319-82000 |
85101-82060-96E |
— | ||
| replacements | |||||
|
1
|
1
85319-82000-000 BUSH,FR SEAT BACK FIXING->85101-82062-96E,USED WITH 09160-06039,AND 85319-82000 |
85319-82000-000 |
US $1.92 |
||
|
1
|
1
09160-06109-000 WASHER(6.5X18X1.6)->85101-82062-96E,USED WITH 09160-06039,AND 85319-82000 |
09160-06109-000 |
from US $0.80 |
||
|
1
|
1
09160-06039-000 Washer->85101-82062-96E,USED WITH 09160-06039,AND 85319-82000 |
09160-06039-000 |
US $1.12 |
||
|
1
|
1
85101-82062-96E
Cushion assy, seat rh
AA51V-101025~ |
85101-82062-96E |
— | ||
|
1
|
1
85101-82060-96D
Cushion assy, seat rh
->85101-82062-96D,USED WITH 09160-06039,AND 85319-82000 |
85101-82060-96D |
— | ||
| replacements | |||||
|
1
|
1
85319-82000-000 BUSH,FR SEAT BACK FIXING->85101-82062-96D,USED WITH 09160-06039,AND 85319-82000 |
85319-82000-000 |
US $1.92 |
||
|
1
|
1
09160-06109-000 WASHER(6.5X18X1.6)->85101-82062-96D,USED WITH 09160-06039,AND 85319-82000 |
09160-06109-000 |
from US $0.80 |
||
|
1
|
1
09160-06039-000 Washer->85101-82062-96D,USED WITH 09160-06039,AND 85319-82000 |
09160-06039-000 |
US $1.12 |
||
|
1
|
1
85101-82062-96D
Cushion assy, seat rh
AA51V-101025~ |
85101-82062-96D |
— | ||
|
2
|
2
85102-82060-96E
Cushion assy, seat lh
->85102-82062-96E,USED WITH 09160-06039,AND 85319-82000 |
85102-82060-96E |
— | ||
| replacements | |||||
|
2
|
2
85319-82000-000 BUSH,FR SEAT BACK FIXING->85102-82062-96E,USED WITH 09160-06039,AND 85319-82000 |
85319-82000-000 |
US $1.92 |
||
|
2
|
2
09160-06109-000 WASHER(6.5X18X1.6)->85102-82062-96E,USED WITH 09160-06039,AND 85319-82000 |
09160-06109-000 |
from US $0.80 |
||
|
2
|
2
09160-06039-000 Washer->85102-82062-96E,USED WITH 09160-06039,AND 85319-82000 |
09160-06039-000 |
US $1.12 |
||
|
2
|
2
85102-82062-96E
Cushion assy, seat lh
AA51V-101025~ |
85102-82062-96E |
— | ||
|
2
|
2
85102-82060-96D
Cushion assy, seat lh
->85101-82062-96D,USED WITH 09160-06039,AND 85319-82000 |
85102-82060-96D |
— | ||
| replacements | |||||
|
2
|
2
85319-82000-000 BUSH,FR SEAT BACK FIXING->85101-82062-96D,USED WITH 09160-06039,AND 85319-82000 |
85319-82000-000 |
US $1.92 |
||
|
2
|
2
09160-06109-000 WASHER(6.5X18X1.6)->85101-82062-96D,USED WITH 09160-06039,AND 85319-82000 |
09160-06109-000 |
from US $0.80 |
||
|
2
|
2
09160-06039-000 Washer->85101-82062-96D,USED WITH 09160-06039,AND 85319-82000 |
09160-06039-000 |
US $1.12 |
||
|
2
|
2
85102-82062-96D
Cushion assy, seat lh
AA51V-101025~ |
85102-82062-96D |
— | ||
|
3
|
3
85301-82092-96E
Back assy, seat rh
LHD |
85301-82092-96E |
— | ||
|
3
|
3
85301-82092-96D
Back assy, seat rh
LHD |
85301-82092-96D |
— | ||
|
3
|
3
85301-82011-96E
Back assy, seat rh
RHD |
85301-82011-96E |
— | ||
|
3
|
3
85301-82011-96D
Back assy, seat rh
RHD |
85301-82011-96D |
— | ||
|
4
|
4
85302-82092-96E
Back assy, seat lh
LHD |
85302-82092-96E |
— | ||
|
4
|
4
85302-82092-96D
Back assy, seat lh
LHD |
85302-82092-96D |
— | ||
|
4
|
4
85302-82011-96E
Back assy, seat lh
RHD |
85302-82011-96E |
— | ||
|
4
|
4
85302-82011-96D
Back assy, seat lh
RHD |
85302-82011-96D |
— | ||
|
5
|
5
85210-82010-000
Control, reclining rh
LHD |
85210-82010-000 |
— | ||
|
5
|
5
85210-82000-000
Control, reclining rh
RHD |
85210-82000-000 |
— | ||
|
6
|
6
85710-82000-000
Control, recling lh
LHD |
85710-82000-000 |
— | ||
|
6
|
6
85710-82010-000
Control, reclining lh
RHD |
85710-82010-000 |
— | ||
|
7
|
7
01107-08168-000
Bolt
|
01107-08168-000 |
— | ||
| replacement | |||||
|
7
|
7
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
8
|
8
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
8
|
8
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
9
|
9
86401-82020-53T
Head restraint assy
<-86401-82010-53T |
86401-82020-53T |
— | ||
| replacement | |||||
|
9
|
9
86401-82020-56G
Head restraint assy
<-86401-82010-53T |
86401-82020-56G |
— | ||
|
9
|
9
86401-82020-56G
Head restraint assy
<-86401-82010-56G |
86401-82020-56G |
— | ||
|
10
|
10
85211-82000-53A
Knob, reclining front
|
85211-82000-53A |
— | ||
| replacement | |||||
|
10
|
10
85211-82000-T01 KNOB,RECL |
85211-82000-T01 |
US $4.05 |
||
|
10
|
10
85211-82000-55Y
Knob, reclining front
|
85211-82000-55Y |
— | ||
| replacement | |||||
|
10
|
10
85211-82000-T01 KNOB,RECL |
85211-82000-T01 |
US $4.05 |
||
|
11
|
11
85221-82001-53A
Cover, reclining rh
|
85221-82001-53A |
— | ||
| replacement | |||||
|
11
|
11
85221-82001-5PK COVER,RECLINING,R |
85221-82001-5PK |
US $8.02 |
||
|
11
|
11
85221-82001-55Y
Cover, reclining rh
|
85221-82001-55Y |
— | ||
| replacements | |||||
|
11
|
11
85221-82001-5PK COVER,RECLINING,R |
85221-82001-5PK |
US $8.02 |
||
|
11
|
11
85721-82001-5PK COVER,RECLINING,L |
85721-82001-5PK |
US $8.02 |
||
|
12
|
12
85721-82001-53A
Cover, reclining lh
|
85721-82001-53A |
— | ||
| replacement | |||||
|
12
|
12
85721-82001-5PK COVER,RECLINING,L |
85721-82001-5PK |
US $8.02 |
||
|
12
|
12
85721-82001-55Y
Copver, reclining lh
|
85721-82001-55Y |
— | ||
| replacements | |||||
|
12
|
12
85221-82001-5PK COVER,RECLINING,R |
85221-82001-5PK |
US $8.02 |
||
|
12
|
12
85721-82001-5PK COVER,RECLINING,L |
85721-82001-5PK |
US $8.02 |
||
|
13
|
13
01107-10168-000
Bolt
|
01107-10168-000 |
— | ||
| replacement | |||||
|
13
|
13
01500-10167-000 Bolt |
01500-10167-000 |
from US $5.24 |
||
|
14
|
14
01107-10408-000
Bolt
|
01107-10408-000 |
— | ||
| replacement | |||||
|
14
|
14
01500-10407-000 Bolt |
01500-10407-000 |
from US $0.91 |
||
|
15
|
15
08321-21107-000 Lock washer |
08321-21107-000 |
US $2.54 |
||
| replacement | |||||
|
15
|
15
08321-01107-000 WASHER,LOCKLock washer |
08321-01107-000 |
from US $0.76 |
||
|
16
|
16
03241-05125-000
Screw
|
03241-05125-000 |
— | ||
| replacement | |||||
|
16
|
16
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
17
|
17
02142-06125-000
Screw
|
02142-06125-000 |
— | ||
| replacements | |||||
|
17
|
17
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
17
|
17
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
18
|
18
09161-11002-000
Washer,11.2x25x3
~AA51V-101024 |
09161-11002-000 |
— | ||
|
19
|
19
09160-06039-000 WasherAA51V-101025~ |
09160-06039-000 |
US $1.12 |
||
|
20
|
20
85319-82000-000 BUSH,FR SEAT BACK FIXINGAA51V-101025~ |
85319-82000-000 |
US $1.92 |
||
|
21
|
21
86610-82021-000
Adjuster, front seat inside
RH SEAT,<-86610-82020 |
86610-82021-000 |
— | ||
| replacement | |||||
|
21
|
21
86610-82031-000
ADJUSTER,FR SEAT INSIDE,R
RH SEAT,<-86610-82020 |
86610-82031-000 |
— | ||
|
22
|
22
86810-82021-000
ADJUSTER,FR SEAT INSIDE,L
LH SEAT,<-86810-82020 |
86810-82021-000 |
— | ||
|
23
|
23
86630-82022-000
ADJUSTER,FR SEAT OUTSIDE
RH SEAT,<-86630-82021 |
86630-82022-000 |
— | ||
|
24
|
24
86630-82022-000
ADJUSTER,FR SEAT OUTSIDE
LH SEAT,<-86630-82021 |
86630-82022-000 |
— | ||
|
25
|
25
01107-08166-000
Bolt m8x1.25x16
|
01107-08166-000 |
— | ||
| replacement | |||||
|
25
|
25
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
26
|
26
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
26
|
26
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
26
|
26
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
27
|
27
01107-08165-000
Bolt 6x16
|
01107-08165-000 |
— | ||
| replacement | |||||
|
27
|
27
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
28
|
28
08321-21084-000
Lock washer
|
08321-21084-000 |
— | ||
| replacements | |||||
|
28
|
28
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
28
|
28
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
29
|
29
08322-11084-000
Washer
|
08322-11084-000 |
— | ||
| replacements | |||||
|
29
|
29
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
29
|
29
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
