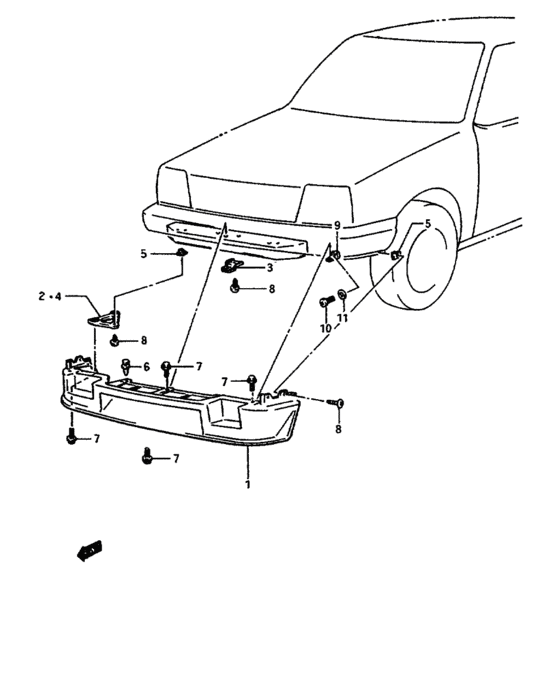

Front spoiler (GS) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- GC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71611-82001-17A
Spoiler, fr skirt
|
71611-82001-17A |
— | ||
|
1
|
1
71611-82001-19N
Spoiler, fr skirt
|
71611-82001-19N |
— | ||
|
1
|
1
71611-82001-21F
Spoiler, fr skirt
|
71611-82001-21F |
— | ||
|
1
|
1
71611-82001-18J
Spoiler, fr skirt
|
71611-82001-18J |
— | ||
|
1
|
1
71611-82001-22H
Spoiler, fr skirt
|
71611-82001-22H |
— | ||
|
2
|
2
71621-82000-000
Bracket, fr spoiler rh
|
71621-82000-000 |
— | ||
|
3
|
3
71622-82000-000
Bracket, fr spoiler center
|
71622-82000-000 |
— | ||
|
4
|
4
71626-82000-000
Bracket, fr spoiler lh
|
71626-82000-000 |
— | ||
|
5
|
5
09148-06006-000 NUTNut, side |
09148-06006-000 |
US $0.96 |
||
|
6
|
6
09409-06307-000
Clip,rear
|
09409-06307-000 |
— | ||
| replacement | |||||
|
6
|
6
09409-06322-5PK CLIP(BLACK)Clip (black) |
09409-06322-5PK |
from US $1.58 |
||
|
7
|
7
01517-06123-000
Bolt
|
01517-06123-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
7
|
7
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
8
|
8
03241-06123-000
Screw
|
03241-06123-000 |
— | ||
| replacement | |||||
|
8
|
8
03241-0612A-000 SCREW |
03241-0612A-000 |
US $0.80 |
||
|
9
|
9
57112-82000-000
Bracket, front balance
GS |
57112-82000-000 |
— | ||
|
10
|
10
09128-06031-000
スクリュ
GS |
09128-06031-000 |
— | ||
| replacement | |||||
|
10
|
10
09128-06044-000 SCREW(6X10)Screw, oil level (6x10) GS |
09128-06044-000 |
from US $1.22 |
||
|
11
|
11
08322-21067-000
Washer
GS |
08322-21067-000 |
— | ||
| replacement | |||||
|
11
|
11
08322-01067-000 WASHERGS |
08322-01067-000 |
from US $0.76 |
||
