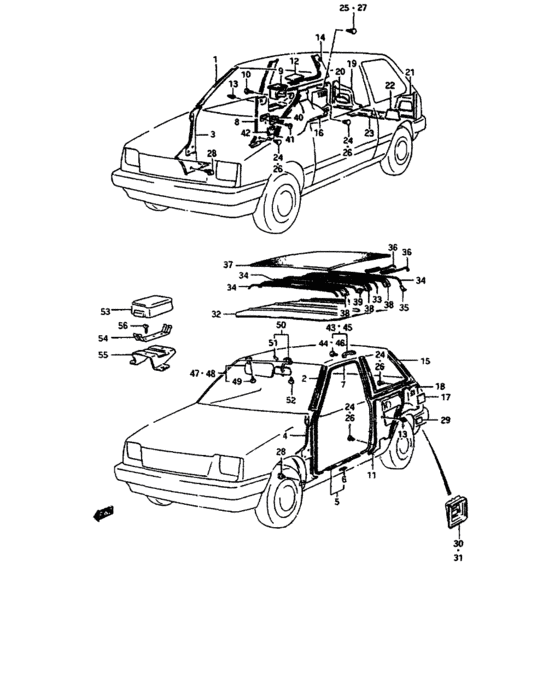

Interior trim (3DR) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- GC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
76141-82000-53A
Trim, front pillar rh
|
76141-82000-53A |
— | ||
| replacement | |||||
|
1
|
1
76141-82000-55Y
Trim, front pillar rh
|
76141-82000-55Y |
— | ||
|
1
|
1
76141-82000-55Y
Trim, front pillar rh
|
76141-82000-55Y |
— | ||
|
2
|
2
76151-82000-53A
Trim, front pillar lh
|
76151-82000-53A |
— | ||
| replacement | |||||
|
2
|
2
76151-82000-55Y
Trim, front pillar lh
|
76151-82000-55Y |
— | ||
|
2
|
2
76151-82000-55Y
Trim, front pillar lh
|
76151-82000-55Y |
— | ||
|
3
|
3
76121-86000-53A
Trim, dush side rh
|
76121-86000-53A |
— | ||
| replacement | |||||
|
3
|
3
76121-86000-4MM
Trim, dash side rh
|
76121-86000-4MM |
— | ||
|
3
|
3
76121-86000-55Y
Trim, dush side rh
|
76121-86000-55Y |
— | ||
| replacement | |||||
|
3
|
3
76121-86000-4MM
Trim, dash side rh
|
76121-86000-4MM |
— | ||
|
4
|
4
76131-86000-53A
Trim, dush side lh
|
76131-86000-53A |
— | ||
| replacement | |||||
|
4
|
4
76131-86000-4MM
Trim, dash side lh
|
76131-86000-4MM |
— | ||
|
4
|
4
76131-86000-55Y
Trim, dush side lh
|
76131-86000-55Y |
— | ||
| replacement | |||||
|
4
|
4
76131-86000-4MM
Trim, dash side lh
|
76131-86000-4MM |
— | ||
|
5
|
5
76160-82000-53A
Trim, side sill
|
76160-82000-53A |
— | ||
|
5
|
5
76160-82000-55Y
Trim, side sill
|
76160-82000-55Y |
— | ||
|
6
|
6
76162-82000-000
Clip, sill scuff
|
76162-82000-000 |
— | ||
|
7
|
7
76191-82000-53A
Trim, door opening
|
76191-82000-53A |
— | ||
| replacement | |||||
|
7
|
7
76240-60A10-5ES TRIM,FR DOOR OPENING |
76240-60A10-5ES |
US $90.40 |
||
|
7
|
7
76191-82000-55Y
Trim, door opening
|
76191-82000-55Y |
— | ||
| replacement | |||||
|
7
|
7
76240-60A10-5ES TRIM,FR DOOR OPENING |
76240-60A10-5ES |
US $90.40 |
||
|
8
|
8
76231-82001-53A
Trim, qtr inner fr rh
|
76231-82001-53A |
— | ||
| replacement | |||||
|
8
|
8
76231-82001-4MM
Trim, qtr inr fr rh
|
76231-82001-4MM |
— | ||
|
8
|
8
76231-82001-55Y
Trim, qtr inner fr rh
|
76231-82001-55Y |
— | ||
| replacement | |||||
|
8
|
8
76231-82001-4MM
Trim, qtr inr fr rh
|
76231-82001-4MM |
— | ||
|
9
|
9
76232-82000-53A
Poket, qtr inner trim
|
76232-82000-53A |
— | ||
| replacement | |||||
|
9
|
9
76232-82000-4MM
Pocket, trim
|
76232-82000-4MM |
— | ||
|
9
|
9
76232-82000-55Y
Poket, qtr inner trim
|
76232-82000-55Y |
— | ||
|
10
|
10
03142-05126-000
Tapping screw
|
03142-05126-000 |
— | ||
| replacement | |||||
|
10
|
10
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
|
11
|
11
76241-82000-53A
Trim, qtr inner fr lh
|
76241-82000-53A |
— | ||
| replacement | |||||
|
11
|
11
76241-82000-4MM
Trim, qtr inr fr lh
|
76241-82000-4MM |
— | ||
|
11
|
11
76241-82000-55Y
Trim, qtr inner fr lh
|
76241-82000-55Y |
— | ||
| replacement | |||||
|
11
|
11
76241-82000-4MM
Trim, qtr inr fr lh
|
76241-82000-4MM |
— | ||
|
12
|
12
76235-82000-53A
Cover, pocket hole
VAN |
76235-82000-53A |
— | ||
|
12
|
12
76235-82000-55Y
Cover, pocket hole
VAN |
76235-82000-55Y |
— | ||
|
13
|
13
76233-82000-000
Clip,qtr inner front trim
|
76233-82000-000 |
— | ||
|
14
|
14
76211-82000-53A
Trim, qtr window rh
|
76211-82000-53A |
— | ||
| replacement | |||||
|
14
|
14
76211-82010-53A
New Genuine Part
|
76211-82010-53A |
— | ||
|
14
|
14
76211-82000-55Y
Trim, qtr window rh
|
76211-82000-55Y |
— | ||
| replacement | |||||
|
14
|
14
76211-82000-4MM
Trim, qtr window rh
|
76211-82000-4MM |
— | ||
|
15
|
15
76221-82000-53A
Trim, qtr window lh
|
76221-82000-53A |
— | ||
| replacement | |||||
|
15
|
15
76221-82000-4MM
Trim, qtr window lh
|
76221-82000-4MM |
— | ||
|
15
|
15
76221-82000-55Y
Trim, qtr window lh
|
76221-82000-55Y |
— | ||
| replacement | |||||
|
15
|
15
76221-82010-55Y
New Genuine Part
|
76221-82010-55Y |
— | ||
|
16
|
16
76251-82101-53A
Trim, quarter rear rh
|
76251-82101-53A |
— | ||
| replacement | |||||
|
16
|
16
76251-82101-55Y
Trim, quarter rear rh
|
76251-82101-55Y |
— | ||
|
16
|
16
76251-82101-55Y
Trim, quarter rear rh
|
76251-82101-55Y |
— | ||
|
17
|
17
76252-82000-000
Valve, ventilator
|
76252-82000-000 |
— | ||
|
18
|
18
76261-82101-53A
Trim, quarter rear lh
|
76261-82101-53A |
— | ||
| replacement | |||||
|
18
|
18
76261-82101-55Y
Trim, quarter rear lh
|
76261-82101-55Y |
— | ||
|
18
|
18
76261-82101-55Y
Trim, quarter rear lh
|
76261-82101-55Y |
— | ||
|
19
|
19
76271-82002-53A
Trim, rr lamp rh
<-76271-82001-53A |
76271-82002-53A |
— | ||
|
19
|
19
76271-82002-55Y
Trim, rr lamp rh
<-76271-82001-55Y |
76271-82002-55Y |
— | ||
| replacement | |||||
|
19
|
19
76271-82002-281
Trim, rr lamp house rh
<-76271-82001-55Y |
76271-82002-281 |
— | ||
|
20
|
20
76272-82000-53A
Lid, lamp house inner
|
76272-82000-53A |
— | ||
| replacement | |||||
|
20
|
20
76272-82000-281
Lid, lamp house trim
|
76272-82000-281 |
— | ||
|
20
|
20
76272-82000-55Y
Lid, lamp house inner
|
76272-82000-55Y |
— | ||
| replacement | |||||
|
20
|
20
76272-82000-281
Lid, lamp house trim
|
76272-82000-281 |
— | ||
|
21
|
21
76281-82003-53A
Trim, rear lamp house lh
<-76281-82002-53A |
76281-82003-53A |
— | ||
| replacement | |||||
|
21
|
21
76281-82003-4NT
Trim,rr lamp inner,lh(gray)
<-76281-82002-53A |
76281-82003-4NT |
— | ||
|
21
|
21
76281-82003-55Y
Trim, rear lamp house lh
<-76281-82002-55Y |
76281-82003-55Y |
— | ||
| replacement | |||||
|
21
|
21
76281-82003-4NT
Trim,rr lamp inner,lh(gray)
<-76281-82002-55Y |
76281-82003-4NT |
— | ||
|
22
|
22
76272-82000-53A
Lid, lamp house inner
|
76272-82000-53A |
— | ||
| replacement | |||||
|
22
|
22
76272-82000-281
Lid, lamp house trim
|
76272-82000-281 |
— | ||
|
22
|
22
76272-82000-55Y
Lid, lamp house inner
|
76272-82000-55Y |
— | ||
| replacement | |||||
|
22
|
22
76272-82000-281
Lid, lamp house trim
|
76272-82000-281 |
— | ||
|
23
|
23
76291-82021-53A
Trim, rear floor end
<-76291-82011-53A |
76291-82021-53A |
— | ||
| replacement | |||||
|
23
|
23
76291-82021-55Y
Trim, rear floor end
<-76291-82011-53A |
76291-82021-55Y |
— | ||
|
23
|
23
76291-82021-55Y
Trim, rear floor end
<-76291-82011-55Y |
76291-82021-55Y |
— | ||
|
24
|
24
09409-05302-53A
Clip, inside trim
|
09409-05302-53A |
— | ||
| replacement | |||||
|
24
|
24
09409-05302-5PK CLIP(BLACK) |
09409-05302-5PK |
from US $2.55 |
||
|
25
|
25
09409-05305-53A
Clip
AA51S-100360~,AA51V-101032~,JSA0AA51S00104320~ |
09409-05305-53A |
— | ||
| replacement | |||||
|
25
|
25
09409-05302-4MM CLIP(GRAY)AA51S-100360~,AA51V-101032~,JSA0AA51S00104320~ |
09409-05302-4MM |
US $2.11 |
||
|
26
|
26
09409-05302-55Y
Clip, inside trim
|
09409-05302-55Y |
— | ||
| replacement | |||||
|
26
|
26
09409-05302-5PK CLIP(BLACK) |
09409-05302-5PK |
from US $2.55 |
||
|
27
|
27
09409-05305-55Y
Clip, inside trim rear
AA51S-100360~,AA51V-101032~,JSA0AA51S00104320~ |
09409-05305-55Y |
— | ||
| replacement | |||||
|
27
|
27
09409-05302-4MM CLIP(GRAY)AA51S-100360~,AA51V-101032~,JSA0AA51S00104320~ |
09409-05302-4MM |
US $2.11 |
||
|
28
|
28
09409-07305-000 Clamp |
09409-07305-000 |
US $1.87 |
||
| replacement | |||||
|
28
|
28
09409-07305-5PK CLIP(BLACK)Clip (black) |
09409-07305-5PK |
from US $1.76 |
||
|
29
|
29
77151-82000-000
FILM
|
77151-82000-000 |
— | ||
| replacements | |||||
|
29
|
29
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole |
84761-50X50-000 |
US $6.72 |
||
|
29
|
29
77151-82010-000 Seal |
77151-82010-000 |
US $1.44 |
||
|
30
|
30
77330-82000-000
OUTLET,VENTILATOR,R
|
77330-82000-000 |
— | ||
|
31
|
31
77340-82000-000
OUTLET,VENTILATOR,L
|
77340-82000-000 |
— | ||
|
32
|
32
78112-82000-55F
Lining, roof
|
78112-82000-55F |
— | ||
|
32
|
32
78112-82000-56C
Lining, roof
|
78112-82000-56C |
— | ||
|
32
|
32
78112-82010-55C
Lining, roof
Finland, Saudi Arabia |
78112-82010-55C |
— | ||
|
32
|
32
78112-82010-56B
Lining, roof
Finland, Saudi Arabia |
78112-82010-56B |
— | ||
|
33
|
33
78123-82000-000
Listing wire no. 1
|
78123-82000-000 |
— | ||
|
34
|
34
78124-82001-000
Listing wire no. 2
|
78124-82001-000 |
— | ||
|
35
|
35
78125-82000-000 HOOK,LISTING WIRE |
78125-82000-000 |
US $1.80 |
||
|
36
|
36
78126-82000-000
Stopper, lessting wire
|
78126-82000-000 |
— | ||
|
37
|
37
78131-82001-000
Pad, roof seilencer
<-78131-82000 |
78131-82001-000 |
— | ||
|
38
|
38
78141-82000-000
Reinf, roof panel
|
78141-82000-000 |
— | ||
| replacement | |||||
|
38
|
38
78141-82001-000
REINFORCEMENT,ROOF PANEL
|
78141-82001-000 |
— | ||
|
39
|
39
02142-06127-000 SCREW |
02142-06127-000 |
from US $0.76 |
||
|
40
|
40
86370-58140-53A
Ashtray, rear
|
86370-58140-53A |
— | ||
| replacement | |||||
|
40
|
40
86370-58141-5PK ASHTRAY,RR DR |
86370-58141-5PK |
US $16.72 |
||
|
40
|
40
86370-58140-55Y
Ashtray, rear
|
86370-58140-55Y |
— | ||
| replacement | |||||
|
40
|
40
86370-58141-5PK ASHTRAY,RR DR |
86370-58141-5PK |
US $16.72 |
||
|
41
|
41
03121-04165-000
Screw
|
03121-04165-000 |
— | ||
| replacement | |||||
|
41
|
41
03121-0416A-000 SCREW |
03121-0416A-000 |
US $7.70 |
||
|
42
|
42
76234-82000-53A
Cover, ashtray hole
VAN |
76234-82000-53A |
— | ||
|
42
|
42
76234-82000-55Y
Cover, ashtray hole
VAN |
76234-82000-55Y |
— | ||
|
43
|
43
86200-66813-53A
Grip set, assistant
|
86200-66813-53A |
— | ||
| replacement | |||||
|
43
|
43
86200-6681V-5ES GRIP SET,ASSISTANT |
86200-6681V-5ES |
US $12.32 |
||
|
43
|
43
86200-66813-55Y
Grip set, assistant
|
86200-66813-55Y |
— | ||
| replacement | |||||
|
43
|
43
86200-6681V-5ES GRIP SET,ASSISTANT |
86200-6681V-5ES |
US $12.32 |
||
|
44
|
44
09125-06041-000 SCREW(6X20) |
09125-06041-000 |
US $1.76 |
||
|
45
|
45
86200-66813-53A
Grip set, assistant
VAN |
86200-66813-53A |
— | ||
| replacement | |||||
|
45
|
45
86200-6681V-5ES GRIP SET,ASSISTANTVAN |
86200-6681V-5ES |
US $12.32 |
||
|
45
|
45
86200-66813-55Y
Grip set, assistant
VAN |
86200-66813-55Y |
— | ||
| replacement | |||||
|
45
|
45
86200-6681V-5ES GRIP SET,ASSISTANTVAN |
86200-6681V-5ES |
US $12.32 |
||
|
46
|
46
09125-06041-000 SCREW(6X20)VAN |
09125-06041-000 |
US $1.76 |
||
|
47
|
47
84800-82811-55C
Sunshade set, lh
GL |
84800-82811-55C |
— | ||
| replacement | |||||
|
47
|
47
84800-82811-56B
Sunshade set, lh
GL |
84800-82811-56B |
— | ||
|
47
|
47
84800-82811-56B
Sunshade set, lh
GL |
84800-82811-56B |
— | ||
|
47
|
47
84800-82880-55C
Sunshade set, rh
LHD:GC, W/MIRROR |
84800-82880-55C |
— | ||
|
47
|
47
84800-82880-56B
Sunshade set, rh
LHD:GC, W/MIRROR |
84800-82880-56B |
— | ||
|
48
|
48
84800-82811-55C
Sunshade set, lh
|
84800-82811-55C |
— | ||
| replacement | |||||
|
48
|
48
84800-82811-56B
Sunshade set, lh
|
84800-82811-56B |
— | ||
|
48
|
48
84800-82811-56B
Sunshade set, lh
|
84800-82811-56B |
— | ||
|
48
|
48
84800-82851-55C
Sunshade assy, lh
RHD:GC, W/MIRROR |
84800-82851-55C |
— | ||
|
48
|
48
84800-82851-56B
Sunshade assy, lh
RHD:GC, W/MIRROR |
84800-82851-56B |
— | ||
|
49
|
49
09127-05016-000
スクリュ,5X16
|
09127-05016-000 |
— | ||
| replacement | |||||
|
49
|
49
02122-0516B-000 SCREW |
02122-0516B-000 |
from US $0.80 |
||
|
50
|
50
84703-82030-281
Mirror assy, inside rear view
|
84703-82030-281 |
— | ||
| replacements | |||||
|
50
|
50
84703-70B11-5PK
MIRROR ASSY,INS RR VIEW
|
84703-70B11-5PK |
— | ||
|
50
|
50
84781-60A00-5PK COVER,INSIDE MIRROR STAY |
84781-60A00-5PK |
US $2.74 |
||
|
50
|
50
84781-82000-000
SUPPORT,INSIDE MIRROR
|
84781-82000-000 |
— | ||
|
51
|
51
84781-82000-000
SUPPORT,INSIDE MIRROR
|
84781-82000-000 |
— | ||
|
52
|
52
02142-05128-000
Screw
|
02142-05128-000 |
— | ||
| replacement | |||||
|
52
|
52
02142-05127-000 SCREW |
02142-05127-000 |
from US $0.80 |
||
|
53
|
53
86360-73003-53A
Ashtray, rear
Israel |
86360-73003-53A |
— | ||
| replacement | |||||
|
53
|
53
86360-73003-55Y
Ashtray,rear
Israel |
86360-73003-55Y |
— | ||
|
53
|
53
86360-73003-55Y
Ashtray,rear
Israel |
86360-73003-55Y |
— | ||
|
54
|
54
86391-73000-000
Bracket,rr ash tray
Israel |
86391-73000-000 |
— | ||
|
55
|
55
89861-82000-000
Bracket
Israel |
89861-82000-000 |
— | ||
|
56
|
56
03241-06106-000
Screw
Israel |
03241-06106-000 |
— | ||
| replacement | |||||
|
56
|
56
03241-0610A-000 SCREWIsrael |
03241-0610A-000 |
US $0.76 |
||
