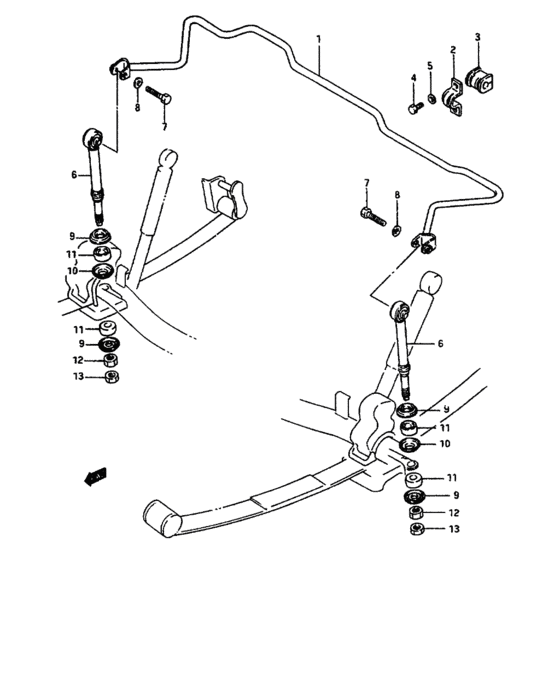

Rear stabilizer (REAR STABILIZER) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- GC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46610-82611-000
Bar, rear stabilizer
<-46610-82610 |
46610-82611-000 |
— | ||
|
2
|
2
42341-58000-000
Bracket, bar mount
|
42341-58000-000 |
— | ||
|
3
|
3
42331-58041-000
BUSH,STABILIZER BAR
|
42331-58041-000 |
— | ||
|
4
|
4
01107-08203-000
Bolt
|
01107-08203-000 |
— | ||
| replacement | |||||
|
4
|
4
01500-0820A-000 Bolt |
01500-0820A-000 |
from US $0.80 |
||
|
5
|
5
08321-21083-000
Washr,lk8.2x15.
|
08321-21083-000 |
— | ||
| replacements | |||||
|
5
|
5
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
5
|
5
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
6
|
6
46630-82610-000
Rod,rr stabilizer bar
|
46630-82610-000 |
— | ||
|
7
|
7
01107-10453-000 ボルト |
01107-10453-000 |
US $1.75 |
||
| replacement | |||||
|
7
|
7
01500-1045A-000 Bolt |
01500-1045A-000 |
from US $4.86 |
||
|
8
|
8
08321-21103-000 Lock washer |
08321-21103-000 |
from US $0.77 |
||
| replacements | |||||
|
8
|
8
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
8
|
8
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
9
|
9
09165-10002-000 WASHER |
09165-10002-000 |
from US $2.08 |
||
|
10
|
10
09169-15002-000 WASHER |
09169-15002-000 |
US $7.68 |
||
|
11
|
11
09320-10024-000 CUSHION |
09320-10024-000 |
from US $3.04 |
||
|
12
|
12
08310-12103-000 Nut |
08310-12103-000 |
US $0.63 |
||
| replacements | |||||
|
12
|
12
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
12
|
12
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
13
|
13
08310-21103-000
Nut
|
08310-21103-000 |
— | ||
| replacements | |||||
|
13
|
13
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
13
|
13
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
