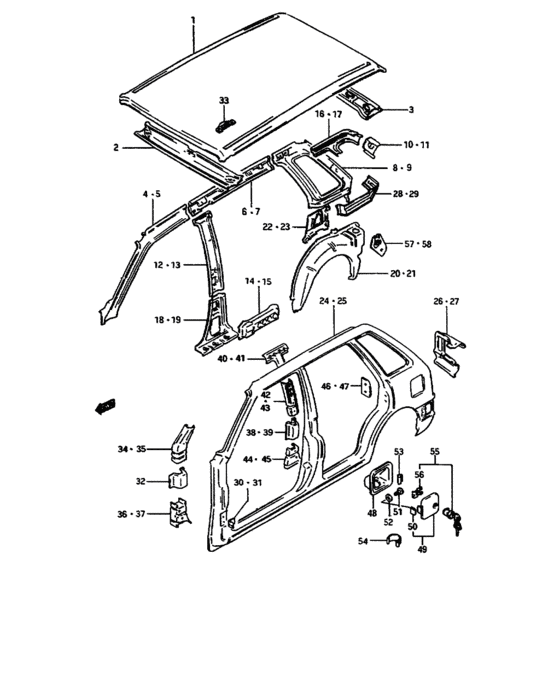

Roof and side panel (5DR) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- GC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
65111-82212-000
Panel,roof
LHD, <-65111-82211 |
65111-82212-000 |
— | ||
|
1
|
1
65111-82202-000
Panel,roof
RHD, <-65111-82201 |
65111-82202-000 |
— | ||
|
2
|
2
65121-82000-000
Rail, roof front inner
|
65121-82000-000 |
— | ||
|
3
|
3
65130-82000-000
MEMBER,ROOF BACK INR
|
65130-82000-000 |
— | ||
|
4
|
4
63111-82210-000
Rail, roof side inner rh
LHD |
63111-82210-000 |
— | ||
|
4
|
4
63111-82200-000
Rail, roof side inner rh
RHD |
63111-82200-000 |
— | ||
|
4
|
4
63111-82220-000
Rail, roof side inner rh
Norway, Sweden, Switzerland, Germany, Saudi Arabia |
63111-82220-000 |
— | ||
|
5
|
5
63511-82210-000
Rail, roof side inner lh
LHD |
63511-82210-000 |
— | ||
|
5
|
5
63511-82200-000
Rail, roof side inner lh
RHD |
63511-82200-000 |
— | ||
|
5
|
5
63511-82220-000
Rail, roof side inner lh
, Finland, Norway, Sweden, Switzerland, Belgium,,2, 5, 6, Austria, Saudi Arabia, Channel Islands |
63511-82220-000 |
— | ||
|
6
|
6
63121-82200-000
Rail, roof side inner rh
|
63121-82200-000 |
— | ||
|
7
|
7
63521-82200-000
RAIL,ROOF SIDE INNER CTR,L
|
63521-82200-000 |
— | ||
|
8
|
8
63311-82202-000
PANEL,QUARTER INNER UPR,R
<-63311-82201 |
63311-82202-000 |
— | ||
|
8
|
8
63311-82212-000
Panel, quarter inner upper rh
, Finland, Norway, Sweden, Switzerland, Belgium,,2, 5, 6, 7, Austria,,Saudi Arabia, Channel Islands, Israel,<-63311-82211 |
63311-82212-000 |
— | ||
| replacement | |||||
|
8
|
8
63311-82202-000
PANEL,QUARTER INNER UPR,R
, Finland, Norway, Sweden, Switzerland, Belgium,,2, 5, 6, 7, Austria,,Saudi Arabia, Channel Islands, Israel,<-63311-82211 |
63311-82202-000 |
— | ||
|
9
|
9
63711-82202-000
PANEL,QUARTER INNER UPR,L
<-63711-82201 |
63711-82202-000 |
— | ||
|
9
|
9
63711-82212-000
Panel, quarter inner upper lh
, Finland, Norway, Sweden, Switzerland, Belgium,,2, 5, 6, 7, Austria,,Saudi Arabia, Channel Islands, Israel,<-63711-82211 |
63711-82212-000 |
— | ||
| replacement | |||||
|
9
|
9
63711-82202-000
PANEL,QUARTER INNER UPR,L
, Finland, Norway, Sweden, Switzerland, Belgium,,2, 5, 6, 7, Austria,,Saudi Arabia, Channel Islands, Israel,<-63711-82211 |
63711-82202-000 |
— | ||
|
10
|
10
63313-82200-000
Reinf, door balancer rh
|
63313-82200-000 |
— | ||
|
11
|
11
63713-82200-000
Reinf, door balancer lh
|
63713-82200-000 |
— | ||
|
12
|
12
63322-82200-000
Panel, ctr pillar inr upper rh
|
63322-82200-000 |
— | ||
|
13
|
13
63722-82200-000
PANEL,CTR PILLAR INNER UPR,L
|
63722-82200-000 |
— | ||
|
14
|
14
63221-82200-000
Strength, side sill rh
|
63221-82200-000 |
— | ||
| replacement | |||||
|
14
|
14
63221-82201-000
STRENGTH,SIDE SILL END,R
|
63221-82201-000 |
— | ||
|
15
|
15
63621-82200-000
Strength, side sill lh
|
63621-82200-000 |
— | ||
| replacement | |||||
|
15
|
15
63621-82201-000
STRENGTH,SIDE SILL END,L
|
63621-82201-000 |
— | ||
|
16
|
16
64281-82200-000
Stiffener, rr pillar upper rh
|
64281-82200-000 |
— | ||
|
17
|
17
64681-82200-000
Stiffener, rr pillar upper lh
|
64681-82200-000 |
— | ||
|
18
|
18
63321-82200-000
PANEL,CTR PILLAR INNER LWR,R
|
63321-82200-000 |
— | ||
|
19
|
19
63721-82200-000
PANEL,CTR PILLAR INNER LWR,L
|
63721-82200-000 |
— | ||
|
20
|
20
63331-82200-000
Panel, wheel house outer rh
|
63331-82200-000 |
— | ||
| replacement | |||||
|
20
|
20
63331-82211-000
PANEL,RR WHEEL HOUSE OTR,R
|
63331-82211-000 |
— | ||
|
20
|
20
63331-82210-000
Panel, wheel house outer rh
, Finland, Norway, Sweden, Switzerland, Belgium,,2, 5, 6, 7, Austria, Saudi Arabia,,Channel Islands, Israel, Iceland |
63331-82210-000 |
— | ||
| replacement | |||||
|
20
|
20
63331-82211-000
PANEL,RR WHEEL HOUSE OTR,R
, Finland, Norway, Sweden, Switzerland, Belgium,,2, 5, 6, 7, Austria, Saudi Arabia,,Channel Islands, Israel, Iceland |
63331-82211-000 |
— | ||
|
21
|
21
63731-82200-000
Panel, wheel house outer lh
|
63731-82200-000 |
— | ||
| replacement | |||||
|
21
|
21
63731-82211-000
PANEL,RR WHEEL HOUSE OTR,L
|
63731-82211-000 |
— | ||
|
21
|
21
63731-82210-000
Panel, wheel house outer lh
, Finland, Norway, Sweden, Switzerland, Belgium,,2, 5, 6, 7, Austria, Saudi Arabia,,Channel Islands, Israel, Iceland |
63731-82210-000 |
— | ||
| replacement | |||||
|
21
|
21
63731-82211-000
PANEL,RR WHEEL HOUSE OTR,L
, Finland, Norway, Sweden, Switzerland, Belgium,,2, 5, 6, 7, Austria, Saudi Arabia,,Channel Islands, Israel, Iceland |
63731-82211-000 |
— | ||
|
22
|
22
63340-82200-000
BRACE,QUARTER INNER,R
|
63340-82200-000 |
— | ||
|
23
|
23
63740-82200-000
BRACE,QUARTER INNER,L
|
63740-82200-000 |
— | ||
|
24
|
24
64111-82200-000
Panel, body outer rh
|
64111-82200-000 |
— | ||
| replacement | |||||
|
24
|
24
64111-86210-000
PANEL,SIDE BODY OUTER,R
|
64111-86210-000 |
— | ||
|
24
|
24
64111-82210-000
Panel, body outer rh
, Finland, Norway, Sweden, Switzerland, Belgium,,2, 5, 6, 7, Austria, Saudi Arabia,,Channel Islands, South Sea Islands, Israel, Iceland |
64111-82210-000 |
— | ||
| replacement | |||||
|
24
|
24
64111-86210-000
PANEL,SIDE BODY OUTER,R
, Finland, Norway, Sweden, Switzerland, Belgium,,2, 5, 6, 7, Austria, Saudi Arabia,,Channel Islands, South Sea Islands, Israel, Iceland |
64111-86210-000 |
— | ||
|
25
|
25
64511-82200-000
Panel, body outer lh
|
64511-82200-000 |
— | ||
| replacement | |||||
|
25
|
25
64511-86220-000
PANEL,SIDE BODY OUTER,L
|
64511-86220-000 |
— | ||
|
25
|
25
64511-82210-000
Panel, body outer lh
Saudi Arabia |
64511-82210-000 |
— | ||
| replacement | |||||
|
25
|
25
64511-86220-000
PANEL,SIDE BODY OUTER,L
Saudi Arabia |
64511-86220-000 |
— | ||
|
25
|
25
64511-82220-000
Panel, body outer lh
, Finland, Norway, Sweden, Switzerland, Belgium,,2, 5, 6, 7, Austria, Saudi Arabia,,Channel Islands, South Sea Islands, Israel, Iceland |
64511-82220-000 |
— | ||
| replacement | |||||
|
25
|
25
64511-86220-000
PANEL,SIDE BODY OUTER,L
, Finland, Norway, Sweden, Switzerland, Belgium,,2, 5, 6, 7, Austria, Saudi Arabia,,Channel Islands, South Sea Islands, Israel, Iceland |
64511-86220-000 |
— | ||
|
26
|
26
64112-82000-000
Housing, rear lamp outer rh
|
64112-82000-000 |
— | ||
|
27
|
27
64512-82000-000
Housing, rear lamp outer lh
|
64512-82000-000 |
— | ||
|
28
|
28
63360-82200-000
Member, qtr inner rh
, Finland, Norway, Sweden, Switzerland, Belgium,,2, 5, 6, 7, Austria, Saudi Arabia,,Channel Islands, Israel |
63360-82200-000 |
— | ||
|
29
|
29
63760-82200-000
Member, qtr inner lh
, Finland, Norway, Sweden, Switzerland, Belgium,,2, 5, 6, 7, Austria, Saudi Arabia,,Channel Islands, Israel |
63760-82200-000 |
— | ||
|
30
|
30
64114-82000-000
Bracket, front fender rh
|
64114-82000-000 |
— | ||
|
31
|
31
64514-82000-000
Bracket, front fender lh
|
64514-82000-000 |
— | ||
|
32
|
32
64120-82000-000
REINF,DOOR OPEN STOPPER
|
64120-82000-000 |
— | ||
|
33
|
33
64513-82000-000 RETAINER,RADIO ANTENNA,LLHD |
64513-82000-000 |
US $3.53 |
||
|
33
|
33
64113-82000-000
Retainer, radio antenna rh
RHD |
64113-82000-000 |
— | ||
|
34
|
34
64131-82000-000
REINF,FR PILLAR HNG UPR,R
|
64131-82000-000 |
— | ||
|
35
|
35
64531-82000-000
REINFORCEMENT,FR PLR HNG UPR,L
|
64531-82000-000 |
— | ||
|
36
|
36
64141-82000-000
REINF,FR PILLAR HNG LWR,R
|
64141-82000-000 |
— | ||
|
37
|
37
64541-82000-000
REINFORCEMENT,FR PLR HNG LWR,L
|
64541-82000-000 |
— | ||
|
38
|
38
64220-82200-000
REINFORCEMENT,DOOR STRIKER,R
|
64220-82200-000 |
— | ||
|
39
|
39
64620-82200-000
REINFORCEMENT,DOOR STRIKER,L
|
64620-82200-000 |
— | ||
|
40
|
40
64270-82200-000
Stiffener,ctr plr upper,r
|
64270-82200-000 |
— | ||
|
41
|
41
64670-82200-000
Stiffener, ctr pillar lh
|
64670-82200-000 |
— | ||
|
42
|
42
64311-82200-000
REINF,RR DOOR HNG UPR,R
|
64311-82200-000 |
— | ||
|
43
|
43
64711-82200-000
REINFORCEMENT,RR DR HNG UPR,L
|
64711-82200-000 |
— | ||
|
44
|
44
64321-82200-000
REINF,RR DOOR HNG LWR,R
|
64321-82200-000 |
— | ||
|
45
|
45
64721-82200-000
REINFORCEMENT,RR DR HNG LWR,L
|
64721-82200-000 |
— | ||
|
46
|
46
64440-82200-000
Reinf, striker rh
|
64440-82200-000 |
— | ||
|
47
|
47
64840-82200-000
Reinf, striker lh
|
64840-82200-000 |
— | ||
|
48
|
48
64570-82201-000
BOX,FUEL FILLER
<-64570-82200 |
64570-82201-000 |
— | ||
|
49
|
49
64850-82200-000
DOOR,FUEL FILLER
|
64850-82200-000 |
— | ||
|
50
|
50
09329-01003-000 CUSHION |
09329-01003-000 |
from US $2.08 |
||
|
51
|
51
02112-05123-000
Screw 5x12
|
02112-05123-000 |
— | ||
| replacement | |||||
|
51
|
51
02112-0512A-000 SCREW |
02112-0512A-000 |
from US $0.80 |
||
|
52
|
52
08322-21053-000 Washer |
08322-21053-000 |
US $1.07 |
||
| replacements | |||||
|
52
|
52
08322-0105B-000 WASHER |
08322-0105B-000 |
from US $0.76 |
||
|
52
|
52
08322-0105A-000 WASHERWasher, front |
08322-0105A-000 |
from US $0.80 |
||
|
53
|
53
77113-82200-000
CUSHION,FUEL FILLER DR
|
77113-82200-000 |
— | ||
|
54
|
54
77114-82000-000
SPRING,FUEL LID
Germany |
77114-82000-000 |
— | ||
|
55
|
55
89300-82841-000
Cylinder set, back door lock
<-89300-82840 |
89300-82841-000 |
— | ||
|
56
|
56
77461-78000-000 CLIP |
77461-78000-000 |
US $6.88 |
||
|
57
|
57
63332-82000-000
Reinf, seat belt rh
Norway, Sweden, Switzerland, Germany, New Zealand, Saudi Arabia |
63332-82000-000 |
— | ||
|
58
|
58
63732-82000-000
Seinf, rr seat belt lh
Norway, Sweden, Switzerland, Germany, New Zealand, Saudi Arabia |
63732-82000-000 |
— | ||
