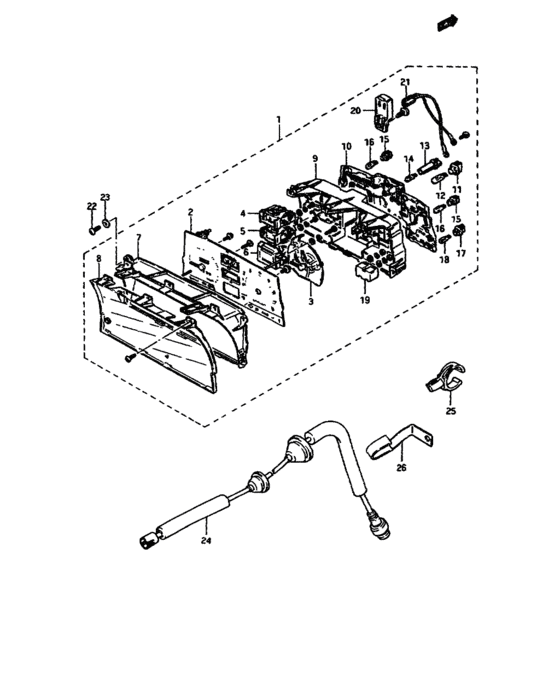

Speedometer (ANALOGUE TYPE, W/CLOCK, W/TACHOMETER) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- GC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34160-82611-000
Speedometer assy
|
34160-82611-000 |
— | ||
|
1
|
1
34100-82621-000
Speedometer assy
|
34100-82621-000 |
— | ||
|
1
|
1
34100-82592-000
Speedometer assy
|
34100-82592-000 |
— | ||
|
1
|
1
34100-82602-000
Speedometer assy
Finland, Norway, Sweden, Switzerland, Belgium,,Holland, Denmark, Austria, Channel Islands, Israel |
34100-82602-000 |
— | ||
|
1
|
1
34100-82641-000
Speedometer assy
Saudi Arabia |
34100-82641-000 |
— | ||
|
2
|
2
34120-82261-000
Body, speedometer
|
34120-82261-000 |
— | ||
|
2
|
2
34120-82371-000
Body, speedometer
|
34120-82371-000 |
— | ||
|
2
|
2
34120-82182-000
Body, speedometer
|
34120-82182-000 |
— | ||
|
2
|
2
34120-82222-000
Body, speedometer
Finland, Norway, Sweden, Switzerland, Belgium,,Germany, Holland, Denmark, Austria, Channel Islands, Israel |
34120-82222-000 |
— | ||
|
2
|
2
34120-82521-000
Body, speedometer
Saudi Arabia |
34120-82521-000 |
— | ||
|
3
|
3
34220-82590-000
Tachometer assy
|
34220-82590-000 |
— | ||
|
4
|
4
34320-82060-000
Body assy, fuel meter
|
34320-82060-000 |
— | ||
|
5
|
5
34420-82060-000
Body assy, temp meter
|
34420-82060-000 |
— | ||
|
6
|
6
34600-82060-000
Clock assy
|
34600-82060-000 |
— | ||
| replacement | |||||
|
6
|
6
34600-86040-000
Clock assy
|
34600-86040-000 |
— | ||
|
7
|
7
34111-82061-000
Visor, window
|
34111-82061-000 |
— | ||
|
8
|
8
34112-82060-000
Glass
|
34112-82060-000 |
— | ||
|
9
|
9
34151-82061-000
Case
|
34151-82061-000 |
— | ||
|
10
|
10
34152-82261-000
Plate, print
|
34152-82261-000 |
— | ||
|
10
|
10
34152-82221-000
Plate, print
, Finland, Norway, Sweden, Switzerland, Belgium,,2, 5, 6, Austria, Channel Islands, Israel |
34152-82221-000 |
— | ||
|
10
|
10
34152-82521-000
Plate, print
Saudi Arabia |
34152-82521-000 |
— | ||
|
11
|
11
34172-82060-000
ソケット
|
34172-82060-000 |
— | ||
| replacement | |||||
|
11
|
11
34172-50E10-000 SOCKET |
34172-50E10-000 |
US $1.60 |
||
|
12
|
12
09471-12092-000 BULB(12V3.4W G30) |
09471-12092-000 |
US $2.56 |
||
|
13
|
13
34173-82060-000
Socket
|
34173-82060-000 |
— | ||
| replacement | |||||
|
13
|
13
34172-66A00-000
SOCKET
|
34172-66A00-000 |
— | ||
|
14
|
14
09471-12091-000 BULB(12V1.4W G30) |
09471-12091-000 |
US $28 |
||
|
15
|
15
34174-82060-000
ソケット
|
34174-82060-000 |
— | ||
| replacement | |||||
|
15
|
15
34175-78900-000 SOCKET |
34175-78900-000 |
US $1.52 |
||
|
16
|
16
09471-12091-000 BULB(12V1.4W G30) |
09471-12091-000 |
US $28 |
||
|
17
|
17
34175-78900-000 SOCKET |
34175-78900-000 |
US $1.52 |
||
|
18
|
18
09471-12055-000 BULB(14V1.4W,T5) |
09471-12055-000 |
from US $2.40 |
||
|
19
|
19
34180-82000-000
TIMER
Saudi Arabia |
34180-82000-000 |
— | ||
|
20
|
20
34160-67010-000
BUZZER ASSY
Saudi Arabia |
34160-67010-000 |
— | ||
|
21
|
21
34165-82080-000
Wire, buzzer lead
Saudi Arabia |
34165-82080-000 |
— | ||
|
22
|
22
03511-05258-000
Screw
|
03511-05258-000 |
— | ||
| replacement | |||||
|
22
|
22
03511-05253-000 SCREW |
03511-05253-000 |
US $9.90 |
||
|
23
|
23
08322-21057-000
Washer
|
08322-21057-000 |
— | ||
| replacement | |||||
|
23
|
23
08322-01057-000 WASHERWasher, front hook holder |
08322-01057-000 |
from US $0.80 |
||
|
24
|
24
34910-82010-000
CABLE ASSY,SPEEDOMETER
LHD |
34910-82010-000 |
— | ||
|
24
|
24
34910-82021-000 CABLE ASSY,SPEEDOMETERRHD |
34910-82021-000 |
US $80.96 |
||
|
25
|
25
09408-00055-000 CLAMPLHD, <-09403-34301 |
09408-00055-000 |
US $26.50 |
||
|
26
|
26
09404-06604-000
Clamp, calbe
RHD |
09404-06604-000 |
— | ||
