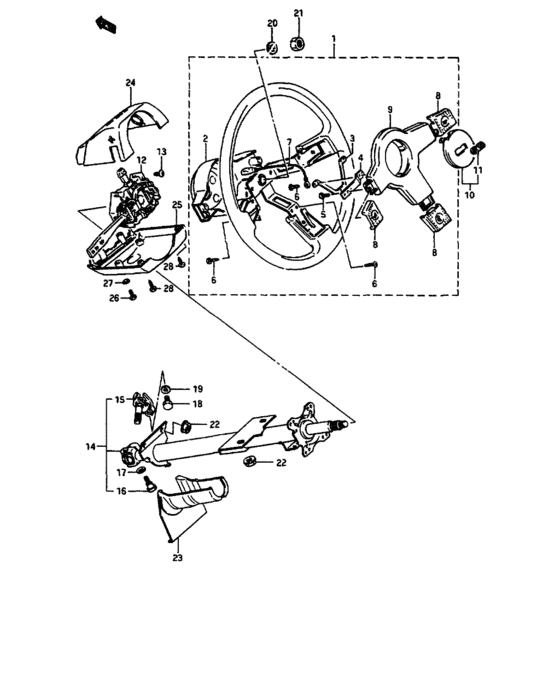

Steering wheel and column (GS) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- GC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48110-82040-55Y
Wheel assy, steering
|
48110-82040-55Y |
— | ||
|
2
|
2
48119-82040-55Y
Cover, lower
|
48119-82040-55Y |
— | ||
|
3
|
3
48116-82040-000
Plate, horn
|
48116-82040-000 |
— | ||
|
4
|
4
48129-82040-000
Spring, horn button
|
48129-82040-000 |
— | ||
|
5
|
5
48126-82040-000
Screw
|
48126-82040-000 |
— | ||
| replacement | |||||
|
5
|
5
48118-50F00-000
SCREW,SLIP RING
|
48118-50F00-000 |
— | ||
|
6
|
6
48128-82040-000
スクリュ
|
48128-82040-000 |
— | ||
| replacements | |||||
|
6
|
6
03211-0412A-000 SCREW |
03211-0412A-000 |
from US $3.04 |
||
|
6
|
6
03211-04126-000
Screw
|
03211-04126-000 |
— | ||
|
7
|
7
48127-82040-000
ワイヤ,リード
|
48127-82040-000 |
— | ||
| replacement | |||||
|
7
|
7
48116-51E00-000
CORD,HORN
|
48116-51E00-000 |
— | ||
|
8
|
8
48123-82040-55Y
Button, horn
|
48123-82040-55Y |
— | ||
|
9
|
9
48120-82040-55Y
Pad
|
48120-82040-55Y |
— | ||
|
10
|
10
48130-82080-55Y
Ornament
|
48130-82080-55Y |
— | ||
|
11
|
11
48131-82080-000
Emblem
|
48131-82080-000 |
— | ||
|
12
|
12
37400-86010-000
SWITCH ASSY,TURN SIGNAL&DIMMER
LHD, <-37400-82111 |
37400-86010-000 |
— | ||
|
12
|
12
37400-86000-000
SWITCH ASSY,TURN SIGNAL&DIMMER
RHD, <-37400-82101 |
37400-86000-000 |
— | ||
|
13
|
13
03211-05106-000
スクリュ
|
03211-05106-000 |
— | ||
| replacement | |||||
|
13
|
13
03211-0510A-000 SCREW |
03211-0510A-000 |
US $0.80 |
||
|
13
|
13
02112-05168-000
Screw
, South Sea Islands |
02112-05168-000 |
— | ||
| replacement | |||||
|
13
|
13
02112-05167-000 SCREW, South Sea Islands |
02112-05167-000 |
from US $0.76 |
||
|
14
|
14
48200-82132-000
Column assy, steering
LHD, <-48200-82131 |
48200-82132-000 |
— | ||
|
14
|
14
48200-82122-000
Column assy, steering
RHD, <-48200-82121 |
48200-82122-000 |
— | ||
|
14
|
14
48200-82112-000
Column assy, steering
, South Sea Islands:LHD,<-48200-82111 |
48200-82112-000 |
— | ||
| replacement | |||||
|
14
|
14
48200-82011-000
COLUMN ASSY,COLPS STRG
, South Sea Islands:LHD,<-48200-82111 |
48200-82011-000 |
— | ||
|
14
|
14
48200-82102-000
Column assy, steering
South Sea Islands:RHD,<-48200-82101 |
48200-82102-000 |
— | ||
|
15
|
15
48220-82010-000
JOINT,STEERING SHAFT
LHD |
48220-82010-000 |
— | ||
|
15
|
15
48220-82000-000
Joint, steering shaft
RHD |
48220-82000-000 |
— | ||
|
16
|
16
09111-08052-000
ボルト
RHD |
09111-08052-000 |
— | ||
| replacement | |||||
|
16
|
16
09111-08066-000 BOLT(8X30)RHD |
09111-08066-000 |
US $1.92 |
||
|
16
|
16
09100-08218-000
BOLT(8X30)
LHD |
09100-08218-000 |
— | ||
|
17
|
17
08321-31086-000
Lock washer
|
08321-31086-000 |
— | ||
| replacements | |||||
|
17
|
17
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
17
|
17
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
18
|
18
09111-08052-000
ボルト
|
09111-08052-000 |
— | ||
| replacement | |||||
|
18
|
18
09111-08066-000 BOLT(8X30) |
09111-08066-000 |
US $1.92 |
||
|
19
|
19
08321-31086-000
Lock washer
|
08321-31086-000 |
— | ||
| replacements | |||||
|
19
|
19
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
19
|
19
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
20
|
20
08321-31126-000
Washer lock
|
08321-31126-000 |
— | ||
| replacement | |||||
|
20
|
20
08321-0112A-000 WASHER,LOCK |
08321-0112A-000 |
from US $0.76 |
||
|
21
|
21
09140-12022-000
ナット
|
09140-12022-000 |
— | ||
| replacement | |||||
|
21
|
21
09159-12025-000 NUT |
09159-12025-000 |
US $1.82 |
||
|
22
|
22
09159-08052-000
ナット
<-09159-08051 |
09159-08052-000 |
— | ||
| replacement | |||||
|
22
|
22
09159-08135-000 NUT<-09159-08051 |
09159-08135-000 |
from US $0.77 |
||
|
23
|
23
48481-82010-000
Cover, steering joint
LHD |
48481-82010-000 |
— | ||
|
23
|
23
48481-82000-000
Cover, steering joint
RHD |
48481-82000-000 |
— | ||
|
24
|
24
48411-82030-55Y
Cover, column upper
LHD |
48411-82030-55Y |
— | ||
|
24
|
24
48411-82020-55Y
Cover, column upper
RHD |
48411-82020-55Y |
— | ||
|
24
|
24
48411-82010-55Y
Cover, column upper
, South Sea Islands:LHD |
48411-82010-55Y |
— | ||
|
24
|
24
48411-82000-55Y
Cover, column upper
South Sea Islands:RHD |
48411-82000-55Y |
— | ||
|
25
|
25
48421-82000-55Y
Cover, column lower
|
48421-82000-55Y |
— | ||
|
26
|
26
02112-05126-000
Screw m5x.08x12
|
02112-05126-000 |
— | ||
| replacement | |||||
|
26
|
26
02112-0512A-000 SCREW |
02112-0512A-000 |
from US $0.80 |
||
|
27
|
27
09160-05034-000
Washer,5.3x10x1
|
09160-05034-000 |
— | ||
| replacement | |||||
|
27
|
27
09160-05044-000 WASHER(5.5X10X1) |
09160-05044-000 |
from US $0.96 |
||
|
28
|
28
03211-05166-000
Screw, l:16
|
03211-05166-000 |
— | ||
| replacement | |||||
|
28
|
28
03211-0516A-000 SCREW |
03211-0516A-000 |
US $0.80 |
||
