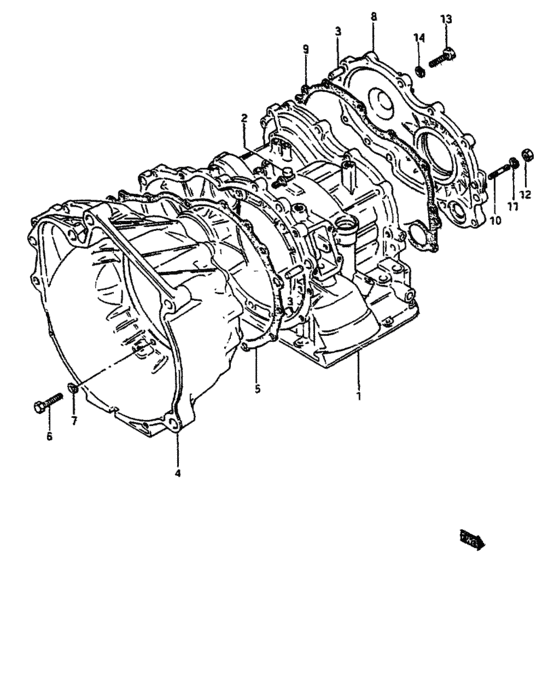

Transmission case (AT) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- GC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24710-82320-000
Case assy, transmission
|
24710-82320-000 |
— | ||
| replacement | |||||
|
1
|
1
26532-62BT0-000
PISTON SET,C1 ACC
|
26532-62BT0-000 |
— | ||
|
2
|
2
24717-82300-000
プラグ,ブリーザ
|
24717-82300-000 |
— | ||
| replacement | |||||
|
2
|
2
24717-83C00-000 PLUG,BREATHER |
24717-83C00-000 |
US $8.48 |
||
|
3
|
3
24791-82300-000
PIN,TRANSMISSION CASE KNOCK
|
24791-82300-000 |
— | ||
|
4
|
4
24721-82301-000
Housing, case
|
24721-82301-000 |
— | ||
|
5
|
5
24781-82300-000
Gasket, case
|
24781-82300-000 |
— | ||
| replacement | |||||
|
5
|
5
24780-62BT0-000 GASKET SET,AT |
24780-62BT0-000 |
US $87.22 |
||
|
6
|
6
01107-08353-000 ボルト |
01107-08353-000 |
US $1.47 |
||
| replacement | |||||
|
6
|
6
01500-0835B-000 BOLTBolt, muffler support |
01500-0835B-000 |
from US $0.96 |
||
|
7
|
7
08321-21083-000
Washr,lk8.2x15.
|
08321-21083-000 |
— | ||
| replacements | |||||
|
7
|
7
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
7
|
7
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
8
|
8
24730-82320-000 COVER,T/M,RR |
24730-82320-000 |
US $329.36 |
||
|
9
|
9
24782-82300-000
Gasket, rear cover
|
24782-82300-000 |
— | ||
| replacement | |||||
|
9
|
9
24782-62B00-000
Gasket, rear cover
|
24782-62B00-000 |
— | ||
|
10
|
10
24889-82300-000
BOLT,T/M RR COVER STUD
|
24889-82300-000 |
— | ||
|
11
|
11
08321-21083-000
Washr,lk8.2x15.
|
08321-21083-000 |
— | ||
| replacements | |||||
|
11
|
11
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
11
|
11
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
12
|
12
08310-11083-000
ナット
|
08310-11083-000 |
— | ||
| replacements | |||||
|
12
|
12
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
12
|
12
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.80 |
||
|
13
|
13
01107-08353-000 ボルト |
01107-08353-000 |
US $1.47 |
||
| replacement | |||||
|
13
|
13
01500-0835B-000 BOLTBolt, muffler support |
01500-0835B-000 |
from US $0.96 |
||
|
14
|
14
08321-21083-000
Washr,lk8.2x15.
|
08321-21083-000 |
— | ||
| replacements | |||||
|
14
|
14
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
14
|
14
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
