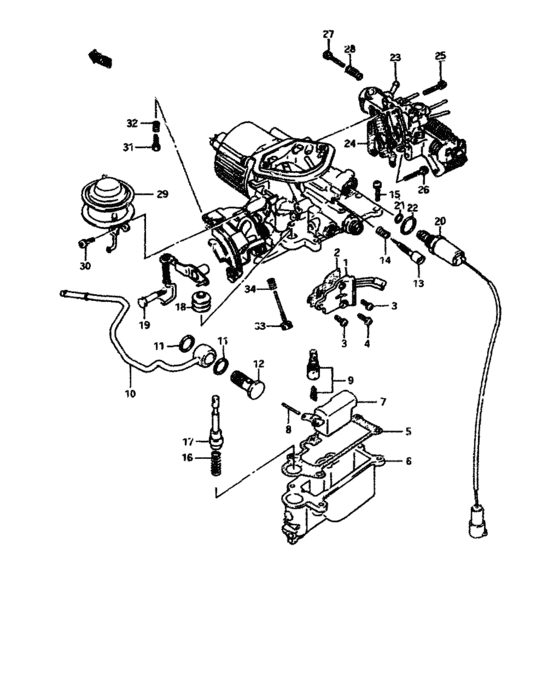

Carburetor (GS) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Africa
- transmission
- MT
- grade
- GS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
13200-82660-000
Carburetor assy
|
13200-82660-000 |
— | ||
|
|
13200-82670-000
Carburetor assy
Sweden, Switzerland |
13200-82670-000 |
— | ||
|
|
13200-82680-000
Carburetor assy
Saudi Arabia |
13200-82680-000 |
— | ||
|
1
|
1
13212-82660-000
Adapter
|
13212-82660-000 |
— | ||
|
1
|
1
13212-82670-000
Adapter
Sweden, Switzerland |
13212-82670-000 |
— | ||
|
1
|
1
13212-82680-000
Adapter
Saudi Arabia |
13212-82680-000 |
— | ||
|
2
|
2
13247-82660-000
Gasket, adapter
|
13247-82660-000 |
— | ||
|
3
|
3
13224-82030-000
Screw
|
13224-82030-000 |
— | ||
| replacements | |||||
|
3
|
3
02112-3512A-000 SCREW |
02112-3512A-000 |
from US $1.47 |
||
|
3
|
3
02112-35123-000
Screw, rubber stop
|
02112-35123-000 |
— | ||
|
4
|
4
13375-82660-000
Screw
|
13375-82660-000 |
— | ||
| replacements | |||||
|
4
|
4
02112-3512A-000 SCREW |
02112-3512A-000 |
from US $1.47 |
||
|
4
|
4
02112-35123-000
Screw, rubber stop
|
02112-35123-000 |
— | ||
|
5
|
5
13248-82660-000
Gasket, float bowl
|
13248-82660-000 |
— | ||
|
6
|
6
13249-82660-000
Bowl, float
|
13249-82660-000 |
— | ||
|
7
|
7
13213-82660-000
Float
|
13213-82660-000 |
— | ||
| replacement | |||||
|
7
|
7
13250-826T0-000
Float set
|
13250-826T0-000 |
— | ||
|
8
|
8
13221-82100-000
Clavette flotteur
<-13254-80000 |
13221-82100-000 |
— | ||
|
9
|
9
13214-82660-000
Valve assy, needle
|
13214-82660-000 |
— | ||
| replacement | |||||
|
9
|
9
13214-71C00-000
VALVE ASSY,NEEDLE
|
13214-71C00-000 |
— | ||
|
10
|
10
13236-82660-000
Union
|
13236-82660-000 |
— | ||
|
11
|
11
13218-82100-000
Joint
|
13218-82100-000 |
— | ||
|
12
|
12
13237-82660-000
Bolt, union nipple
|
13237-82660-000 |
— | ||
|
13
|
13
13371-82660-000
Screw, idle adjust
|
13371-82660-000 |
— | ||
|
14
|
14
13282-82660-000
Spring
|
13282-82660-000 |
— | ||
|
15
|
15
13226-82100-000 Vis |
13226-82100-000 |
US $1.86 |
||
| replacements | |||||
|
15
|
15
02112-3520B-000 SCREW |
02112-3520B-000 |
from US $2.21 |
||
|
15
|
15
02112-35203-000
Screw
|
02112-35203-000 |
— | ||
|
16
|
16
13323-82100-000
Ressort pompe
|
13323-82100-000 |
— | ||
|
17
|
17
13321-82660-000
Planger, pump
|
13321-82660-000 |
— | ||
| replacement | |||||
|
17
|
17
13355-826T0-000
New Genuine Part
|
13355-826T0-000 |
— | ||
|
18
|
18
13215-82660-000
Boot
|
13215-82660-000 |
— | ||
| replacement | |||||
|
18
|
18
13355-826T0-000
New Genuine Part
|
13355-826T0-000 |
— | ||
|
19
|
19
13376-82660-000
スクリュ
|
13376-82660-000 |
— | ||
|
20
|
20
13260-82660-000
Valve assy
|
13260-82660-000 |
— | ||
|
21
|
21
13269-82660-000
O ring
|
13269-82660-000 |
— | ||
|
22
|
22
13268-82660-000
Gasket
|
13268-82660-000 |
— | ||
|
23
|
23
13245-82660-000
Compensetor
|
13245-82660-000 |
— | ||
|
23
|
23
13245-82670-000
Compensetor
Sweden, Switzerland |
13245-82670-000 |
— | ||
|
24
|
24
13244-82660-000
Gasket, compensator
|
13244-82660-000 |
— | ||
|
25
|
25
13374-82100-000 Vis |
13374-82100-000 |
US $1.44 |
||
| replacements | |||||
|
25
|
25
02112-3525B-000 SCREW |
02112-3525B-000 |
from US $2.21 |
||
|
25
|
25
02112-35253-000
Screw
|
02112-35253-000 |
— | ||
|
26
|
26
13378-82660-000
スクリュ
|
13378-82660-000 |
— | ||
|
27
|
27
13372-82660-000
Screw, idle
|
13372-82660-000 |
— | ||
|
28
|
28
13283-82660-000
Spring
|
13283-82660-000 |
— | ||
|
29
|
29
13350-82660-000
Pisitioner assy
|
13350-82660-000 |
— | ||
|
30
|
30
13224-82030-000
Screw
|
13224-82030-000 |
— | ||
| replacements | |||||
|
30
|
30
02112-3512A-000 SCREW |
02112-3512A-000 |
from US $1.47 |
||
|
30
|
30
02112-35123-000
Screw, rubber stop
|
02112-35123-000 |
— | ||
|
31
|
31
13374-82660-000
Screw, adjust
|
13374-82660-000 |
— | ||
|
32
|
32
13282-82100-000
Ressort vis
|
13282-82100-000 |
— | ||
|
33
|
33
13373-82660-000
Screw, adjust
|
13373-82660-000 |
— | ||
|
34
|
34
13298-82300-000
Spring
<-13284-82660 |
13298-82300-000 |
— | ||
| replacement | |||||
|
34
|
34
13246-82060-000
Spring, adjust screw
<-13284-82660 |
13246-82060-000 |
— | ||
