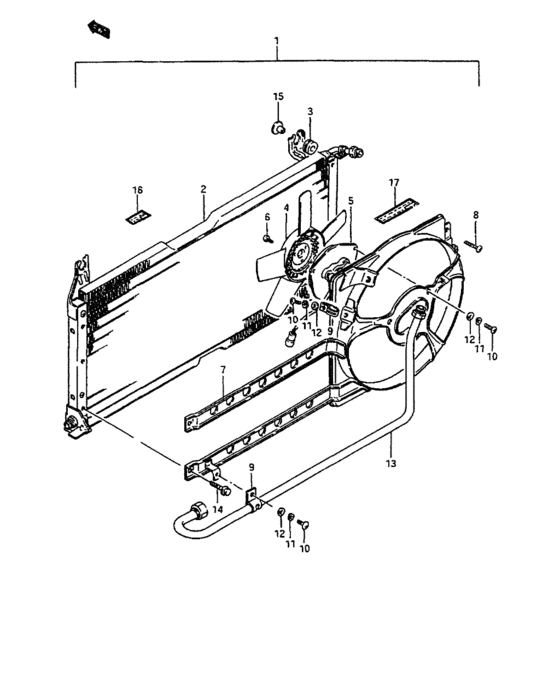

Condenser (CONDENSER) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Africa
- transmission
- MT
- grade
- GS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95310-82015-000
Condenser assy
MT |
95310-82015-000 |
— | ||
|
2
|
2
95310-82000-000
Condenser
MT |
95310-82000-000 |
— | ||
|
3
|
3
95321-82000-000
Mounting, rubber
|
95321-82000-000 |
— | ||
|
4
|
4
95525-82000-000
Fan
|
95525-82000-000 |
— | ||
|
5
|
5
95521-82010-000
Motor, condenser
|
95521-82010-000 |
— | ||
|
6
|
6
95526-82000-000
Screw, fan
|
95526-82000-000 |
— | ||
|
7
|
7
95529-82000-000
Shroud, fan
MT |
95529-82000-000 |
— | ||
|
8
|
8
95329-82000-000
Screw
|
95329-82000-000 |
— | ||
|
9
|
9
95323-82000-000
Clamp, pipe
|
95323-82000-000 |
— | ||
| replacement | |||||
|
9
|
9
95774-60C00-000 CLAMP,DELIVERY PIPE |
95774-60C00-000 |
US $11.70 |
||
|
10
|
10
02112-05103-000
Bolt
|
02112-05103-000 |
— | ||
| replacement | |||||
|
10
|
10
02112-0510A-000 SCREW |
02112-0510A-000 |
from US $0.76 |
||
|
11
|
11
08321-21053-000 Washer,lock5.1x9.5x1 |
08321-21053-000 |
US $1.07 |
||
| replacements | |||||
|
11
|
11
08321-0105B-000 WASHER,LOCK |
08321-0105B-000 |
from US $0.77 |
||
|
11
|
11
08321-0105A-000 WASHER,LOCK |
08321-0105A-000 |
from US $0.76 |
||
|
12
|
12
08322-21053-000 Washer |
08322-21053-000 |
US $1.07 |
||
| replacements | |||||
|
12
|
12
08322-0105B-000 WASHER |
08322-0105B-000 |
from US $0.76 |
||
|
12
|
12
08322-0105A-000 WASHERWasher, front |
08322-0105A-000 |
from US $0.80 |
||
|
13
|
13
95322-82000-000
Pipe, condenser inlet
MT |
95322-82000-000 |
— | ||
|
14
|
14
95328-82000-000
Bolt
|
95328-82000-000 |
— | ||
| replacements | |||||
|
14
|
14
01570-0635B-000 Bolt |
01570-0635B-000 |
from US $4.61 |
||
|
14
|
14
01137-06353-000
Bolt
|
01137-06353-000 |
— | ||
|
15
|
15
95324-82000-000
Collar, mounting
|
95324-82000-000 |
— | ||
| replacement | |||||
|
15
|
15
95922-86000-000
Collar
|
95922-86000-000 |
— | ||
|
16
|
16
95611-82010-000
Caution plate, condeser
|
95611-82010-000 |
— | ||
|
17
|
17
95614-82010-000
Caution plate, fan
|
95614-82010-000 |
— | ||
