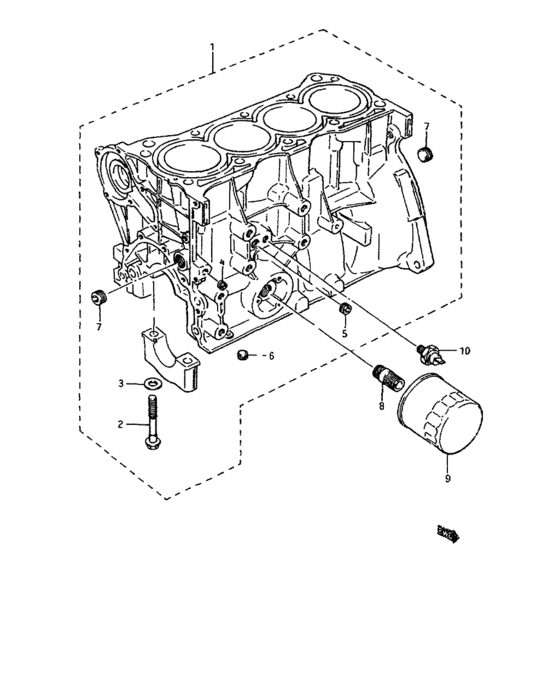

Cylinder block (CYLINDER BLOCK) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Africa
- transmission
- MT
- grade
- GS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11200-82602-000
Block assy, cylinder
<-11200-82601 |
11200-82602-000 |
— | ||
| replacement | |||||
|
1
|
1
11200-82606-000
Block assy,cylinder
<-11200-82601 |
11200-82606-000 |
— | ||
|
1
|
1
11200-82672-000
Block assy, cylinder
GS:Switzerland,<-11200-82671 |
11200-82672-000 |
— | ||
|
1
|
1
11200-82500-000
Block assy, cylinder
W/G13B(1298CC) |
11200-82500-000 |
— | ||
| replacements | |||||
|
1
|
1
11200-52G03-000 BLOCK ASSY,CYLINDERW/G13B(1298CC) |
11200-52G03-000 |
US $2,160.32 |
||
|
1
|
1
11311-60B00-000 PLATE,STARTING MOTORW/G13B(1298CC) |
11311-60B00-000 |
US $2.88 |
||
|
2
|
2
09103-10067-000
ボルト,10X70
|
09103-10067-000 |
— | ||
| replacements | |||||
|
2
|
2
11260-50G01-000 BOLT,CRANK BEARING CAP |
11260-50G01-000 |
US $1.98 |
||
|
2
|
2
11260-50G00-000
ボルト,ベアリングキャップ
|
11260-50G00-000 |
— | ||
|
3
|
3
09160-10039-000 WASHER(10.5X22X2.3) |
09160-10039-000 |
from US $1.06 |
||
|
4
|
4
09246-05003-000
プラグ,1/8PT,H:5.5
|
09246-05003-000 |
— | ||
| replacement | |||||
|
4
|
4
09246-05006-000 PLUG(1/8PT,H:5.5) |
09246-05006-000 |
from US $1.42 |
||
|
5
|
5
09246-06002-000
PLUG
|
09246-06002-000 |
— | ||
| replacement | |||||
|
5
|
5
09246-08007-000 PLUG |
09246-08007-000 |
US $1.76 |
||
|
6
|
6
09246-06001-000 PLUG(1/4PT,H:7.5) |
09246-06001-000 |
US $12.50 |
||
|
7
|
7
09246-08002-000 PLUG |
09246-08002-000 |
US $1.76 |
||
|
8
|
8
11241-73003-000 STAND,OIL FILTER |
11241-73003-000 |
US $6.40 |
||
|
9
|
9
16510-73001-000
フィルタ,オイル(TOKYOROKI)
|
16510-73001-000 |
— | ||
| replacements | |||||
|
9
|
9
16510-60B00-CDN
Oil filter
|
16510-60B00-CDN |
— | ||
|
9
|
9
16510-82703-000 FILTER ASSY,OIL TOKYO ROKIFilter, oil |
16510-82703-000 |
from US $13.41 |
||
|
10
|
10
37820-82001-000
Switch assy, oil pressure
|
37820-82001-000 |
— | ||
| replacement | |||||
|
10
|
10
37820-820P0-000 SWITCH ASSY,OIL PRESSURE |
37820-820P0-000 |
from US $12.02 |
||
