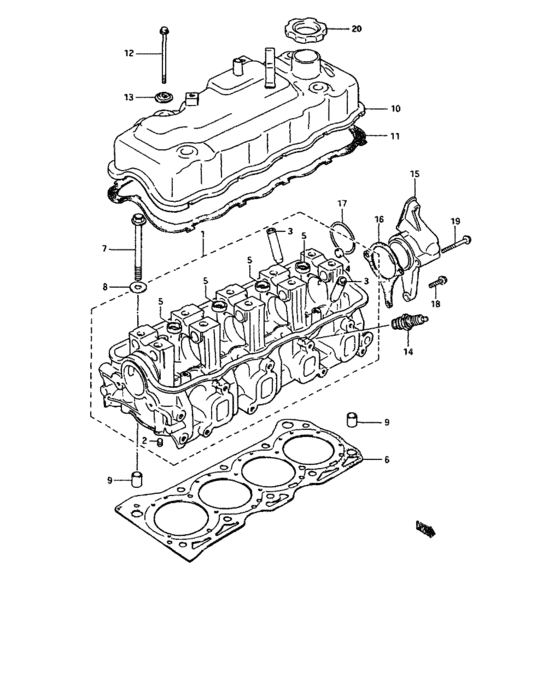

Cylinder head and cover (CYLINDER HEAD AND COVER) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Africa
- transmission
- MT
- grade
- GS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11110-82601-000
Head, cylinder
<-11110-82600 |
11110-82601-000 |
— | ||
| replacement | |||||
|
1
|
1
11110-82602-000
Head,cylinder
<-11110-82600 |
11110-82602-000 |
— | ||
|
2
|
2
11112-73001-000
プラグ,オイルベンチュリ
|
11112-73001-000 |
— | ||
| replacement | |||||
|
2
|
2
11112-73010-000 PLUG,OIL VENTURI |
11112-73010-000 |
US $1.60 |
||
|
3
|
3
11115-82000-001 GUIDE,VALVEGuide, valve |
11115-82000-001 |
US $12.80 |
||
|
4
|
4
09241-12002-000 PLUG |
09241-12002-000 |
US $12.90 |
||
|
5
|
5
09241-20002-000
プラグ
|
09241-20002-000 |
— | ||
| replacement | |||||
|
5
|
5
09241-20006-000 PLUGPlug, crank pin oil |
09241-20006-000 |
from US $1.44 |
||
|
6
|
6
11141-82611-000
Joint culasse
<-11141-82601 |
11141-82611-000 |
— | ||
| replacement | |||||
|
6
|
6
11141-86502-000 GASKET,CYL HEADGasket, cylinder head <-11141-82601 |
11141-86502-000 |
from US $50.33 |
||
|
7
|
7
09103-10066-000
Bolt
|
09103-10066-000 |
— | ||
| replacement | |||||
|
7
|
7
11119-82000-000 BOLT,CYLINDER HEADBolt, cylinder head |
11119-82000-000 |
US $10.64 |
||
|
8
|
8
09160-10039-000 WASHER(10.5X22X2.3) |
09160-10039-000 |
from US $1.06 |
||
|
9
|
9
09206-13001-000
Pin
|
09206-13001-000 |
— | ||
| replacement | |||||
|
9
|
9
04211-13189-000 PIN |
04211-13189-000 |
from US $1.19 |
||
|
10
|
10
11170-82600-000
Cover, cylinder head
|
11170-82600-000 |
— | ||
|
11
|
11
11189-82600-000 GASKET,CYL HEAD COVER |
11189-82600-000 |
from US $15.21 |
||
|
12
|
12
01537-06803-000 ボルト |
01537-06803-000 |
US $2.66 |
||
| replacement | |||||
|
12
|
12
01550-0680B-000 BOLT |
01550-0680B-000 |
from US $4.76 |
||
|
13
|
13
11180-78101-000
ワッシャ
<-11180-78100 |
11180-78101-000 |
— | ||
| replacement | |||||
|
13
|
13
11180-82010-000 WASHER,CYL HEAD COVER SEAL<-11180-78100 |
11180-82010-000 |
from US $2.95 |
||
|
14
|
14
09482-00118-000 PLUG,SPARK(BP6ES) |
09482-00118-000 |
from US $4.59 |
||
|
14
|
14
09482-00123-000
スパークプラグ,W16EXーU
|
09482-00123-000 |
— | ||
| replacement | |||||
|
14
|
14
09482-00131-000 PLUG,SPARK(BP5ES) |
09482-00131-000 |
US $7.22 |
||
|
14
|
14
09482-00299-000 PLUG,SPARK(BPR6ES)Plug, spark (bpr6es) , Finland, Norway, Sweden, Switzerland, Belgium, 2,,5, 6, Hong Kong, Austria, Greece, Channel Islands, Israel |
09482-00299-000 |
from US $5.37 |
||
|
14
|
14
09482-00167-000 PLUG,SPARK(DENSO W16EXR-U), Finland, Norway, Sweden, Switzerland, Belgium, 2,,5, 6, Hong Kong, Austria, Greece, Channel Islands, Israel |
09482-00167-000 |
US $6.22 |
||
| replacement | |||||
|
14
|
14
09482-00155-000 PLUG,SPARK(NGK BPR5ES), Finland, Norway, Sweden, Switzerland, Belgium, 2,,5, 6, Hong Kong, Austria, Greece, Channel Islands, Israel |
09482-00155-000 |
from US $2.78 |
||
|
15
|
15
11161-82601-000
Case, distributor
|
11161-82601-000 |
— | ||
| replacement | |||||
|
15
|
15
09280-56004-000 O RING(D:1.9,ID:55.5) |
09280-56004-000 |
from US $1.48 |
||
|
15
|
15
11161-82602-000
Case, distributor
AA51S-100178~,AA51V-100891~,JSA0AA51S00100099~ |
11161-82602-000 |
— | ||
|
16
|
16
11169-82000-000
Gasket, distributor case
~AA51S-100177,~AA51V-100890,~JSA0AA51S00100098 |
11169-82000-000 |
— | ||
| replacement | |||||
|
16
|
16
11169-82010-000 GASKET,DISTRIBUTOR CASE~AA51S-100177,~AA51V-100890,~JSA0AA51S00100098 |
11169-82010-000 |
US $2.72 |
||
|
17
|
17
09280-56004-000 O RING(D:1.9,ID:55.5)AA51S-100178~,AA51V-100891~,JSA0AA51S00100099~ |
09280-56004-000 |
from US $1.48 |
||
|
18
|
18
01517-06253-000
ボルト
|
01517-06253-000 |
— | ||
| replacements | |||||
|
18
|
18
01550-0625A-000 BOLTBolt |
01550-0625A-000 |
from US $0.96 |
||
|
18
|
18
01550-0625B-000 BOLTBolt, head cover |
01550-0625B-000 |
from US $0.91 |
||
|
19
|
19
01537-06503-000
ボルト
|
01537-06503-000 |
— | ||
| replacement | |||||
|
19
|
19
01550-0650B-000 Bolt |
01550-0650B-000 |
US $15.50 |
||
|
20
|
20
16920-78410-000
Bouchon d'huile
<-16920-78402 |
16920-78410-000 |
— | ||
| replacement | |||||
|
20
|
20
16920-50A01-000 Cap,oil filler<-16920-78402 |
16920-50A01-000 |
from US $9.97 |
||
