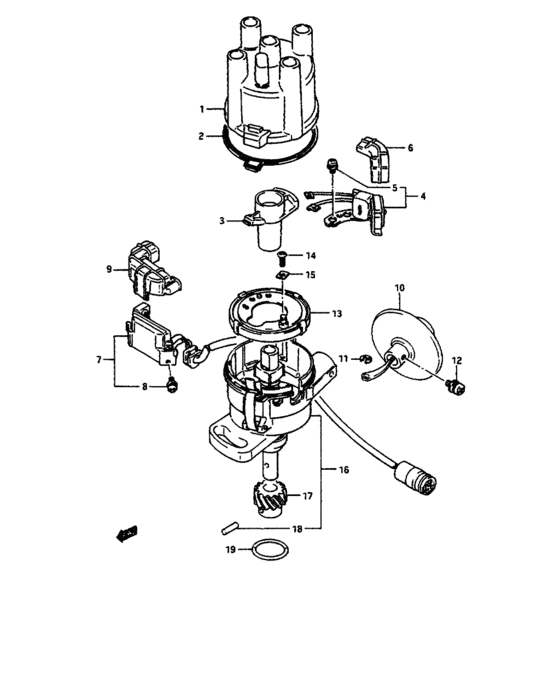

Distributor (DISTRIBUTOR) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Africa
- transmission
- MT
- grade
- GS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
33100-82610-000
Distributor assy
, Finland, Norway, Belgium, 2, 5,,6, Hong Kong, Austria, Greece, Channel Islands, Israel |
33100-82610-000 |
— | ||
|
|
33100-82620-000
Distributor assy
Sweden, Switzerland |
33100-82620-000 |
— | ||
|
|
33100-82650-000
Distributor assy
|
33100-82650-000 |
— | ||
|
1
|
1
33321-82610-000
CAP
|
33321-82610-000 |
— | ||
|
2
|
2
33324-79610-000 PACKING,CAP |
33324-79610-000 |
US $1.52 |
||
|
3
|
3
33310-82610-000
Rotor assy
|
33310-82610-000 |
— | ||
| replacement | |||||
|
3
|
3
33310-63B10-000
ROTOR,DISTRIBUTOR
|
33310-63B10-000 |
— | ||
|
4
|
4
33140-80020-000
Generator assy,distributor
|
33140-80020-000 |
— | ||
|
5
|
5
33151-80020-000 SCREW,IGNITER |
33151-80020-000 |
US $1.60 |
||
|
6
|
6
33279-80020-000 COVER,GENERATOR DUST |
33279-80020-000 |
US $9.44 |
||
|
7
|
7
33370-82610-000
Igniter assy
|
33370-82610-000 |
— | ||
|
8
|
8
33152-82010-000
スクリュ
|
33152-82010-000 |
— | ||
| replacements | |||||
|
8
|
8
02112-3408A-000 SCREW |
02112-3408A-000 |
from US $0.80 |
||
|
8
|
8
02112-34086-000
Screw
|
02112-34086-000 |
— | ||
|
9
|
9
33297-80020-000
カバー,イグナイタダスト
|
33297-80020-000 |
— | ||
|
10
|
10
33230-82650-000
Controller assy, vacuum
|
33230-82650-000 |
— | ||
|
10
|
10
33230-82610-000
Controller assy, vacuum
, Finland, Norway, Belgium, 2, 5,,6, Hong Kong, Austria, Greece, Channel Islands, Israel |
33230-82610-000 |
— | ||
|
10
|
10
33230-82620-000
Controller assy, vacuum
Sweden, Switzerland |
33230-82620-000 |
— | ||
|
11
|
11
33239-76410-000 E-RING |
33239-76410-000 |
US $1.60 |
||
|
12
|
12
33239-82110-000 SCREW,VACUUM CONTROLLER |
33239-82110-000 |
US $1.32 |
||
|
13
|
13
33180-80060-000 PLATE ASSY |
33180-80060-000 |
US $59.62 |
||
|
14
|
14
33181-82010-000
Screw, base plate
|
33181-82010-000 |
— | ||
|
15
|
15
33182-82010-000 WASHER |
33182-82010-000 |
US $1.10 |
||
|
16
|
16
33110-82650-000
Housing assy
|
33110-82650-000 |
— | ||
|
16
|
16
33110-82610-000
Housing assy
, Finland, Norway, Belgium, 2, 5,,6, Hong Kong, Austria, Greece, Channel Islands, Israel |
33110-82610-000 |
— | ||
|
16
|
16
33110-82620-000
Housing assy
Sweden, Switzerland |
33110-82620-000 |
— | ||
|
17
|
17
33267-82610-000
Gear
|
33267-82610-000 |
— | ||
|
18
|
18
33268-72010-000 PIN,DISTRIBUTOR GEAR |
33268-72010-000 |
US $0.77 |
||
|
19
|
19
33278-82010-000
Oリング
|
33278-82010-000 |
— | ||
| replacement | |||||
|
19
|
19
33278-54E10-000 O-RING |
33278-54E10-000 |
from US $8.64 |
||
