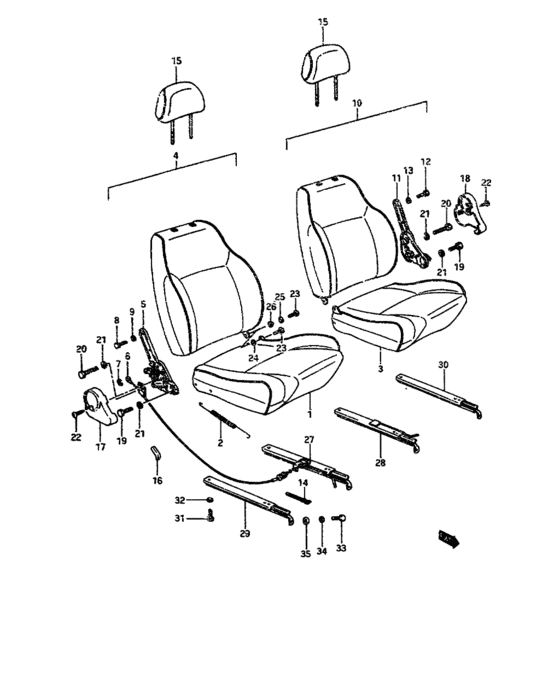

Front seat (3DR:LHD; GS) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Africa
- transmission
- MT
- grade
- GS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
85101-82340-7BA
Cushion assy, seat rh
->85101-82341-7ZZ,USED WITH 09160-06039,AND 85319-82000 |
85101-82340-7BA |
— | ||
| replacements | |||||
|
1
|
1
85319-82000-000 BUSH,FR SEAT BACK FIXING->85101-82341-7ZZ,USED WITH 09160-06039,AND 85319-82000 |
85319-82000-000 |
US $1.92 |
||
|
1
|
1
09160-06109-000 WASHER(6.5X18X1.6)->85101-82341-7ZZ,USED WITH 09160-06039,AND 85319-82000 |
09160-06109-000 |
from US $0.80 |
||
|
1
|
1
09160-06039-000 Washer->85101-82341-7ZZ,USED WITH 09160-06039,AND 85319-82000 |
09160-06039-000 |
US $1.12 |
||
|
1
|
1
85101-82341-7ZZ
Cushion assy, seat rh
AA51S-100326~,JSA0AA51S00103042~ |
85101-82341-7ZZ |
— | ||
|
1
|
1
85101-82350-7AZ
Cushion assy, seat rh
Saudi Arabia,->85101-82351-8AC,USED WITH 09160-06039,AND 85319-82000 |
85101-82350-7AZ |
— | ||
| replacements | |||||
|
1
|
1
85319-82000-000 BUSH,FR SEAT BACK FIXINGSaudi Arabia,->85101-82351-8AC,USED WITH 09160-06039,AND 85319-82000 |
85319-82000-000 |
US $1.92 |
||
|
1
|
1
09160-06109-000 WASHER(6.5X18X1.6)Saudi Arabia,->85101-82351-8AC,USED WITH 09160-06039,AND 85319-82000 |
09160-06109-000 |
from US $0.80 |
||
|
1
|
1
09160-06039-000 WasherSaudi Arabia,->85101-82351-8AC,USED WITH 09160-06039,AND 85319-82000 |
09160-06039-000 |
US $1.12 |
||
|
1
|
1
85101-82351-8AC
Cushion assy, seat rh
Finland, JSA0AA51S00111037~ |
85101-82351-8AC |
— | ||
|
2
|
2
85691-82300-000
Spring, walking tension
|
85691-82300-000 |
— | ||
|
3
|
3
85102-82650-7BA
Cushion assy, seat lh
->85102-82651-7ZZ,USED WITH 09160-06039,AND 85319-82000 |
85102-82650-7BA |
— | ||
| replacements | |||||
|
3
|
3
85319-82000-000 BUSH,FR SEAT BACK FIXING->85102-82651-7ZZ,USED WITH 09160-06039,AND 85319-82000 |
85319-82000-000 |
US $1.92 |
||
|
3
|
3
09160-06109-000 WASHER(6.5X18X1.6)->85102-82651-7ZZ,USED WITH 09160-06039,AND 85319-82000 |
09160-06109-000 |
from US $0.80 |
||
|
3
|
3
09160-06039-000 Washer->85102-82651-7ZZ,USED WITH 09160-06039,AND 85319-82000 |
09160-06039-000 |
US $1.12 |
||
|
3
|
3
85102-82651-7ZZ
Cushion assy, seat lh
AA51S-100326~,JSA0AA51S00103042~ |
85102-82651-7ZZ |
— | ||
|
3
|
3
85102-82640-7AZ
Cushion assy, seat lh
Saudi Arabia,->85102-82641-8AC,USED WITH 09160-06039,AND 85319-82000 |
85102-82640-7AZ |
— | ||
| replacements | |||||
|
3
|
3
85319-82000-000 BUSH,FR SEAT BACK FIXINGSaudi Arabia,->85102-82641-8AC,USED WITH 09160-06039,AND 85319-82000 |
85319-82000-000 |
US $1.92 |
||
|
3
|
3
09160-06109-000 WASHER(6.5X18X1.6)Saudi Arabia,->85102-82641-8AC,USED WITH 09160-06039,AND 85319-82000 |
09160-06109-000 |
from US $0.80 |
||
|
3
|
3
09160-06039-000 WasherSaudi Arabia,->85102-82641-8AC,USED WITH 09160-06039,AND 85319-82000 |
09160-06039-000 |
US $1.12 |
||
|
3
|
3
85102-82641-8AC
Cushion assy, seat lh
Finland, JSA0AA51S00111037~ |
85102-82641-8AC |
— | ||
|
4
|
4
85301-82342-7ZZ
Back assy, seat rh
<-85301-82342-7BA |
85301-82342-7ZZ |
— | ||
|
4
|
4
85301-82352-8AC
Back assy, seat rh
Finland, JSA0AA51S00111037~ |
85301-82352-8AC |
— | ||
|
5
|
5
85210-82030-000
Control, reclining rh
|
85210-82030-000 |
— | ||
| replacement | |||||
|
5
|
5
85210-82020-000
Reclining assy, rh
|
85210-82020-000 |
— | ||
|
6
|
6
87470-82030-000
Cable assy, walkin rh
|
87470-82030-000 |
— | ||
|
7
|
7
08332-11056-000
E ring
|
08332-11056-000 |
— | ||
| replacement | |||||
|
7
|
7
08332-1105A-000 E RING |
08332-1105A-000 |
from US $0.91 |
||
|
8
|
8
01107-08168-000
Bolt
|
01107-08168-000 |
— | ||
| replacement | |||||
|
8
|
8
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
9
|
9
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
9
|
9
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
10
|
10
85302-82650-7ZZ
Back assy, seat lh
<-85302-82650-7BA |
85302-82650-7ZZ |
— | ||
|
10
|
10
85302-82640-8AC
Back assy, seat lh
Finland, JSA0AA51S00111037~ |
85302-82640-8AC |
— | ||
|
11
|
11
85710-82000-000
Control, recling lh
|
85710-82000-000 |
— | ||
|
12
|
12
01107-08168-000
Bolt
|
01107-08168-000 |
— | ||
| replacement | |||||
|
12
|
12
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
13
|
13
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
13
|
13
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
14
|
14
85695-82000-000
Band, walkin cable
|
85695-82000-000 |
— | ||
|
15
|
15
86401-82020-56G
Head restraint assy
<-86401-82010-56G |
86401-82020-56G |
— | ||
|
16
|
16
85211-82000-55Y
Knob, reclining front
|
85211-82000-55Y |
— | ||
| replacement | |||||
|
16
|
16
85211-82000-T01 KNOB,RECL |
85211-82000-T01 |
US $4.05 |
||
|
17
|
17
85221-82001-55Y
Cover, reclining rh
|
85221-82001-55Y |
— | ||
| replacements | |||||
|
17
|
17
85221-82001-5PK COVER,RECLINING,R |
85221-82001-5PK |
US $8.02 |
||
|
17
|
17
85721-82001-5PK COVER,RECLINING,L |
85721-82001-5PK |
US $8.02 |
||
|
17
|
17
85221-82040-55Y
Cover, reclining rh
Saudi Arabia |
85221-82040-55Y |
— | ||
|
18
|
18
85721-82001-55Y
Copver, reclining lh
|
85721-82001-55Y |
— | ||
| replacements | |||||
|
18
|
18
85221-82001-5PK COVER,RECLINING,R |
85221-82001-5PK |
US $8.02 |
||
|
18
|
18
85721-82001-5PK COVER,RECLINING,L |
85721-82001-5PK |
US $8.02 |
||
|
18
|
18
85721-82040-55Y
Cover, reclining lh
Saudi Arabia |
85721-82040-55Y |
— | ||
|
19
|
19
01107-10168-000
Bolt
|
01107-10168-000 |
— | ||
| replacement | |||||
|
19
|
19
01500-10167-000 Bolt |
01500-10167-000 |
from US $5.24 |
||
|
20
|
20
01107-10408-000
Bolt
|
01107-10408-000 |
— | ||
| replacement | |||||
|
20
|
20
01500-10407-000 Bolt |
01500-10407-000 |
from US $0.91 |
||
|
21
|
21
08321-21107-000 Lock washer |
08321-21107-000 |
US $2.54 |
||
| replacement | |||||
|
21
|
21
08321-01107-000 WASHER,LOCKLock washer |
08321-01107-000 |
from US $0.76 |
||
|
22
|
22
03241-05125-000
Screw
|
03241-05125-000 |
— | ||
| replacement | |||||
|
22
|
22
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
23
|
23
02142-06125-000
Screw
|
02142-06125-000 |
— | ||
| replacements | |||||
|
23
|
23
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
23
|
23
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
24
|
24
09161-11002-000
Washer,11.2x25x3
~AA51S-100325,~JSA0AA51B00103041 |
09161-11002-000 |
— | ||
|
25
|
25
09160-06039-000 WasherAA51S-100326~,JSA0AA51B00103042~ |
09160-06039-000 |
US $1.12 |
||
|
26
|
26
85319-82000-000 BUSH,FR SEAT BACK FIXINGAA51S-100326~,JSA0AA51S00103042~ |
85319-82000-000 |
US $1.92 |
||
|
27
|
27
86610-82041-000
Adjuster, front seat inside
RH SEAT |
86610-82041-000 |
— | ||
| replacement | |||||
|
27
|
27
86610-82031-000
ADJUSTER,FR SEAT INSIDE,R
RH SEAT |
86610-82031-000 |
— | ||
|
28
|
28
86810-82021-000
ADJUSTER,FR SEAT INSIDE,L
LH SEAT |
86810-82021-000 |
— | ||
|
29
|
29
86630-82022-000
ADJUSTER,FR SEAT OUTSIDE
RH SEAT |
86630-82022-000 |
— | ||
|
30
|
30
86630-82022-000
ADJUSTER,FR SEAT OUTSIDE
LH SEAT |
86630-82022-000 |
— | ||
|
31
|
31
01107-08166-000
Bolt m8x1.25x16
|
01107-08166-000 |
— | ||
| replacement | |||||
|
31
|
31
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
32
|
32
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
32
|
32
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
32
|
32
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
33
|
33
01107-08165-000
Bolt 6x16
|
01107-08165-000 |
— | ||
| replacement | |||||
|
33
|
33
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
34
|
34
08321-21084-000
Lock washer
|
08321-21084-000 |
— | ||
| replacements | |||||
|
34
|
34
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
34
|
34
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
35
|
35
08322-11084-000
Washer
|
08322-11084-000 |
— | ||
| replacements | |||||
|
35
|
35
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
35
|
35
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
