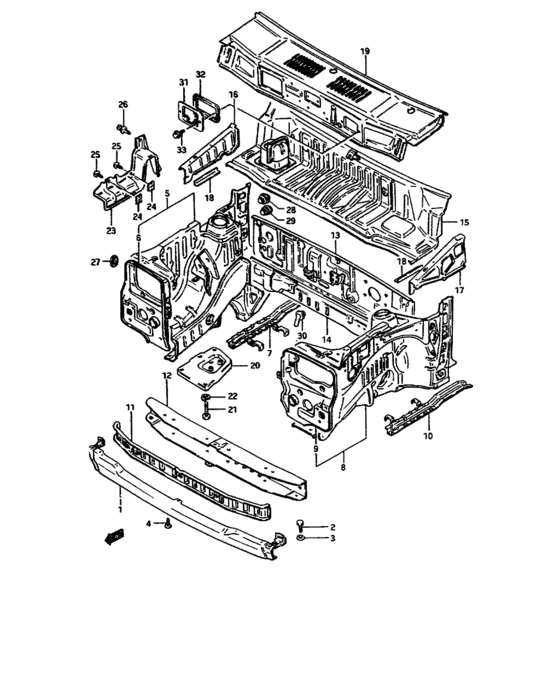

Front sheet metal (FRONT SHEET METAL) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Africa
- transmission
- MT
- grade
- GS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57110-82000-000
PANEL,FRONT BALANCE
|
57110-82000-000 |
— | ||
|
2
|
2
09128-06031-000
スクリュ
|
09128-06031-000 |
— | ||
| replacement | |||||
|
2
|
2
09128-06044-000 SCREW(6X10)Screw, oil level (6x10) |
09128-06044-000 |
from US $1.22 |
||
|
3
|
3
08322-21067-000
Washer
|
08322-21067-000 |
— | ||
| replacement | |||||
|
3
|
3
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.76 |
||
|
4
|
4
03241-06126-000
New Genuine Part
|
03241-06126-000 |
— | ||
| replacement | |||||
|
4
|
4
03241-0612A-000 SCREW |
03241-0612A-000 |
US $0.80 |
||
|
5
|
5
58301-82830-000
Panel assy, fr fender apron rh
LHD:MT,->58301-82831,USED WITH 36995-86000 |
58301-82830-000 |
— | ||
|
5
|
5
58301-82831-000
Panel assy, fr fender apron rh
LHD:MT, SEE NOTE |
58301-82831-000 |
— | ||
|
5
|
5
58301-82811-000
Panel assy, fr fender apron rh
RHD:MT,->58301-82812,USED WITH 36995-86000 |
58301-82811-000 |
— | ||
|
5
|
5
58301-82812-000
Panel assy, fr fender apron rh
RHD:MT, SEE NOTE |
58301-82812-000 |
— | ||
|
5
|
5
58301-82840-000
Panel assy, fr fender apron rh
, 7,->58301-82841,USED WITH 36995-86000 |
58301-82840-000 |
— | ||
|
5
|
5
58301-82841-000
Panel assy, fr fender apron rh
, 7, SEE NOTE |
58301-82841-000 |
— | ||
|
5
|
5
58301-82851-000
Panel assy, fr fender apron rh
MT:Finland, Norway, Sweden, Switzerland, Belgium,,Germany, Holland, Denmark, New Zealand, Austria, Saudi Arabia,,Channel Islands, Israel, Iceland,->58301-82852,USED WITH 36995-86000 |
58301-82851-000 |
— | ||
|
5
|
5
58301-82852-000
Panel assy, fr fender apron rh
MT:Finland, Norway, Sweden, Switzerland, Belgium,,Germany, Holland, Denmark, New Zealand, Austria, Saudi Arabia,,Channel Islands, Israel, Iceland, SEE NOTE |
58301-82852-000 |
— | ||
|
6
|
6
58110-82010-000
Panel, lamp support rh
|
58110-82010-000 |
— | ||
|
7
|
7
58640-82000-000
Member, floor side rh
|
58640-82000-000 |
— | ||
| replacement | |||||
|
7
|
7
58640-82010-000
MEMBER,FL SIDE,R
|
58640-82010-000 |
— | ||
|
7
|
7
58640-82010-000
MEMBER,FL SIDE,R
, Finland, Norway, Sweden, Switzerland, Belgium,,2, 5, 6, 7, Austria, Saudi Arabia,,Channel Islands, South Sea Islands, Israel, Iceland |
58640-82010-000 |
— | ||
|
8
|
8
58401-82821-000
Panel assy, fr fender apron lh
LHD:MT,->58401-82822,USED WITH 36995-86000,AND 36918-82000 |
58401-82821-000 |
— | ||
|
8
|
8
58401-82822-000
Panel assy, fr fender apron lh
LHD:MT, SEE NOTE |
58401-82822-000 |
— | ||
|
8
|
8
58401-82811-000
Panel assy, fr fender apron lh
RHD:MT,->58401-82812,USED WITH 36995-86000,AND 36918-82000 |
58401-82811-000 |
— | ||
|
8
|
8
58401-82812-000
Panel assy, fr fender apron lh
RHD:MT, SEE NOTE |
58401-82812-000 |
— | ||
|
8
|
8
58401-82831-000
Panel assy, fr fender apron lh
, 7,->58401-82832,USED WITH 36995-86000,AND 36918-82000 |
58401-82831-000 |
— | ||
|
8
|
8
58401-82832-000
Panel assy, fr fender apron lh
, 7, SEE NOTE |
58401-82832-000 |
— | ||
|
8
|
8
58401-82842-000
Panel assy, fr fender apron lh
MT:Finland, Norway, Sweden, Switzerland, Belgium,,Germany, Holland, Denmark, New Zealand, Austria, Saudi Arabia,,Channel Islands, Israel, Iceland,->58401-82843,USED WITH 36995-86000,AND 36918-82000 |
58401-82842-000 |
— | ||
|
8
|
8
58401-82843-000
Panel assy, fr fender apron lh
MT:Finland, Norway, Sweden, Switzerland, Belgium,,Germany, Holland, Denmark, New Zealand, Austria, Saudi Arabia,,Channel Islands, Israel, Iceland, SEE NOTE |
58401-82843-000 |
— | ||
|
9
|
9
58160-82010-000
Panel, lamp support lh
|
58160-82010-000 |
— | ||
|
10
|
10
58740-82000-000
Member, floor side lh
|
58740-82000-000 |
— | ||
| replacement | |||||
|
10
|
10
58740-82010-000
MEMBER,FL SIDE,L
|
58740-82010-000 |
— | ||
|
10
|
10
58740-82010-000
MEMBER,FL SIDE,L
, Finland, Norway, Sweden, Switzerland, Belgium,,2, 5, 6, 7, Austria, Saudi Arabia,,Channel Islands, South Sea Islands, Israel, Iceland |
58740-82010-000 |
— | ||
|
11
|
11
58211-82001-000
Crossmember, front lower outer
<-58211-82000 |
58211-82001-000 |
— | ||
| replacement | |||||
|
11
|
11
58211-82012-000
CROSSMEMBER,FR LOWER,OUTER
<-58211-82000 |
58211-82012-000 |
— | ||
|
11
|
11
58211-82011-000
Member, front lower outer
, Finland, Norway, Sweden, Switzerland, Belgium,,2, 5, 6, 7, Austria, Saudi Arabia,,Channel Islands, South Sea Islands, Israel, Iceland |
58211-82011-000 |
— | ||
| replacement | |||||
|
11
|
11
58211-82012-000
CROSSMEMBER,FR LOWER,OUTER
, Finland, Norway, Sweden, Switzerland, Belgium,,2, 5, 6, 7, Austria, Saudi Arabia,,Channel Islands, South Sea Islands, Israel, Iceland |
58211-82012-000 |
— | ||
|
12
|
12
58220-82602-000
Crossmember, front lower inner
<-58220-82601 |
58220-82602-000 |
— | ||
|
12
|
12
58220-82612-000
Crossmember, front lower inner
, Finland, Norway, Sweden, Switzerland, Belgium,,2, 5, 6, 7, Austria, Saudi Arabia,,Channel Islands, South Sea Islands, Israel, Iceland |
58220-82612-000 |
— | ||
|
13
|
13
59100-82062-000
Panel, dash
LHD:MT |
59100-82062-000 |
— | ||
| replacements | |||||
|
13
|
13
09250-20015-000 CAP(OD:28.5)Cap, air con harness LHD:MT |
09250-20015-000 |
US $1.76 |
||
|
13
|
13
59100-86041-000
PANEL,DASH
LHD:MT |
59100-86041-000 |
— | ||
|
13
|
13
59100-82022-000
Panel, dash
RHD:MT |
59100-82022-000 |
— | ||
|
13
|
13
59100-82002-000
Panel, dash
Sinagpore |
59100-82002-000 |
— | ||
|
13
|
13
59100-82012-000
Panel, dash
MT:Saudi Arabia |
59100-82012-000 |
— | ||
|
14
|
14
59210-82031-000
Crossmember, dash lower
LHD |
59210-82031-000 |
— | ||
| replacement | |||||
|
14
|
14
59210-82012-000
CROSSMEMBER,DASH LOWER
LHD |
59210-82012-000 |
— | ||
|
14
|
14
59210-82001-000
Crossmember, dash lower
RHD |
59210-82001-000 |
— | ||
|
14
|
14
59210-82021-000
Crossmember, dash lower
, 7 |
59210-82021-000 |
— | ||
|
14
|
14
59210-82011-000
Member, dash lower
Finland, Norway, Sweden, Switzerland, Belgium, Germany,,Holland, Denmark, Austria, Greece, Saudi Arabia, Channel Islands,,South Sea Islands, Israel, Iceland |
59210-82011-000 |
— | ||
| replacement | |||||
|
14
|
14
59210-82012-000
CROSSMEMBER,DASH LOWER
Finland, Norway, Sweden, Switzerland, Belgium, Germany,,Holland, Denmark, Austria, Greece, Saudi Arabia, Channel Islands,,South Sea Islands, Israel, Iceland |
59210-82012-000 |
— | ||
|
15
|
15
59300-82210-000
Panel, cowl upper
MT:LHD(N/TACHO METER),<-59300-82060 |
59300-82210-000 |
— | ||
|
15
|
15
59300-82230-000
Panel, cowl upper
MT:LHD(W/TACHO METER),<-59300-82070 |
59300-82230-000 |
— | ||
|
15
|
15
59300-82200-000
Panel, cowl upper
MT:RHD(N/TACHO METER),<-59300-82000 |
59300-82200-000 |
— | ||
|
15
|
15
59300-82220-000
Pandl, cowl upper
MT:RHD(W/TACHO METER),<-59300-82020 |
59300-82220-000 |
— | ||
|
16
|
16
58351-82000-000
Member, cowl side rh
|
58351-82000-000 |
— | ||
| replacement | |||||
|
16
|
16
58351-82010-000
MEMBER,COWL SIDE,R
|
58351-82010-000 |
— | ||
|
16
|
16
58351-82010-000
MEMBER,COWL SIDE,R
, Finland, Norway, Sweden, Switzerland, Belgium,,2, 5, 6, 7, Austria, Saudi Arabia,,Channel Islands, Israel, Iceland |
58351-82010-000 |
— | ||
|
17
|
17
58451-82000-000
Member, cowl side lh
|
58451-82000-000 |
— | ||
| replacement | |||||
|
17
|
17
58451-82010-000 MEMBER,COWL SIDE,L |
58451-82010-000 |
US $24.66 |
||
|
17
|
17
58451-82010-000 MEMBER,COWL SIDE,L, Finland, Norway, Sweden, Switzerland, Belgium,,2, 5, 6, 7, Austria, Saudi Arabia,,Channel Islands, Israel, Iceland |
58451-82010-000 |
US $24.66 |
||
|
18
|
18
58352-82000-000
Reinforcement, cowl side membe,r
|
58352-82000-000 |
— | ||
|
19
|
19
59700-82030-000
Panel, cowl top
LHD |
59700-82030-000 |
— | ||
| replacement | |||||
|
19
|
19
59700-82010-000
Panel,cowl top
LHD |
59700-82010-000 |
— | ||
|
19
|
19
59700-82001-000
Panel, cowl top
RHD,<-59700-82000 |
59700-82001-000 |
— | ||
| replacement | |||||
|
19
|
19
59700-82021-000
Panel,cowl top
RHD,<-59700-82000 |
59700-82021-000 |
— | ||
|
19
|
19
59700-82021-000
Panel,cowl top
, 7,<-59700-82020 |
59700-82021-000 |
— | ||
|
19
|
19
59700-82010-000
Panel,cowl top
Finland, Norway, Sweden, Switzerland, Belgium, Germany,,Holland, Denmark, Austria, Saudi Arabia, Channel Islands, South Sea Islands,,Israel, Iceland |
59700-82010-000 |
— | ||
|
20
|
20
72311-82600-000
Bracket, stabilizer rh
|
72311-82600-000 |
— | ||
|
21
|
21
01107-10203-000 ボルト |
01107-10203-000 |
US $2.22 |
||
| replacement | |||||
|
21
|
21
01500-1020B-000 BOLTBolt, axle bearing housing |
01500-1020B-000 |
from US $0.76 |
||
|
22
|
22
08321-31103-000
ロックワッシャ
|
08321-31103-000 |
— | ||
| replacements | |||||
|
22
|
22
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
22
|
22
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
23
|
23
72381-82000-000
COVER,SPLASH
|
72381-82000-000 |
— | ||
|
24
|
24
09148-05003-000 NUT |
09148-05003-000 |
US $1.28 |
||
|
25
|
25
03241-05123-000
Screw
|
03241-05123-000 |
— | ||
| replacement | |||||
|
25
|
25
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
26
|
26
09409-07305-000 Clamp |
09409-07305-000 |
US $1.87 |
||
| replacement | |||||
|
26
|
26
09409-07305-5PK CLIP(BLACK)Clip (black) |
09409-07305-5PK |
from US $1.76 |
||
|
27
|
27
09250-45002-000
CAP
|
09250-45002-000 |
— | ||
|
28
|
28
74813-82000-000 GROMMET,CAR AIR CON,NO.1N/AIR CONDITIONER |
74813-82000-000 |
US $6.72 |
||
| replacement | |||||
|
28
|
28
74814-82000-000 GROMMET,CAR AIR CON,NO.2N/AIR CONDITIONER |
74814-82000-000 |
US $6.08 |
||
|
29
|
29
74814-82000-000 GROMMET,CAR AIR CON,NO.2N/AIR CONDITIONER |
74814-82000-000 |
US $6.08 |
||
|
30
|
30
74815-82000-000 GROMMET,CAR AIR CON,DRN/AIR CONDITIONER |
74815-82000-000 |
US $4.12 |
||
|
31
|
31
72411-82010-000
Lid, drain cap service hole
LHD |
72411-82010-000 |
— | ||
|
32
|
32
72412-82000-000
Seal, service hole lid
LHD |
72412-82000-000 |
— | ||
|
33
|
33
01517-06103-000
ボルト
LHD |
01517-06103-000 |
— | ||
| replacements | |||||
|
33
|
33
01550-0610A-000 BOLTLHD |
01550-0610A-000 |
from US $0.80 |
||
|
33
|
33
01550-0610B-000 BoltBolt LHD |
01550-0610B-000 |
from US $0.80 |
||
