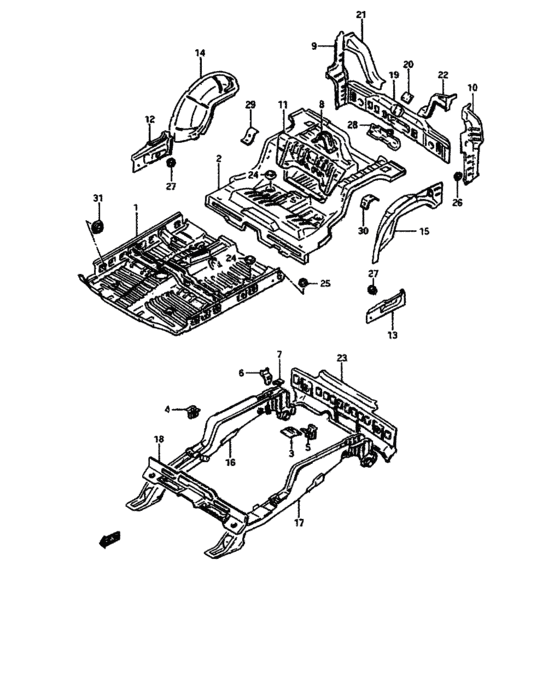

Lower and rear end panel (5DR) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Africa
- transmission
- MT
- grade
- GS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61110-82202-000
Pan, main floor
MT, <-61110-82001 |
61110-82202-000 |
— | ||
|
2
|
2
61511-82211-000
Pan, rear floor
|
61511-82211-000 |
— | ||
|
2
|
2
61511-82221-000
Pan, rear floor
, Finland, Norway, Sweden, Switzerland, Belgium,,2, 5, 6, Austria, Channel Islands, Israel |
61511-82221-000 |
— | ||
|
3
|
3
61513-82000-000
Reinf, rear seat belt center
|
61513-82000-000 |
— | ||
|
4
|
4
61514-82000-000
Bracket, fuel tank rh
|
61514-82000-000 |
— | ||
|
5
|
5
61515-82000-000
Bracket, fuel tank rear
|
61515-82000-000 |
— | ||
|
6
|
6
61518-82200-000
Bracket, muffler rear inside
|
61518-82200-000 |
— | ||
|
7
|
7
61519-82000-000
Brace, muffler bracket
|
61519-82000-000 |
— | ||
|
8
|
8
61521-82001-000
Bracket, jack
|
61521-82001-000 |
— | ||
|
9
|
9
61531-82001-000
PILLAR,REAR END INNER LOWER,R
|
61531-82001-000 |
— | ||
|
10
|
10
61581-82201-000
PILLAR,REAR END INNER LOWER,L
|
61581-82201-000 |
— | ||
|
11
|
11
61540-82002-000
Clossmember, rear floor center
|
61540-82002-000 |
— | ||
|
12
|
12
61560-82200-000
Locker, rear floor front rh
|
61560-82200-000 |
— | ||
|
13
|
13
61570-82200-000
Locker, rear floor front lh
|
61570-82200-000 |
— | ||
|
14
|
14
61611-82001-000
Panel, wheel house inner rh
|
61611-82001-000 |
— | ||
|
15
|
15
61660-82201-000
Panel, wheel house inner lh
|
61660-82201-000 |
— | ||
|
15
|
15
61660-82211-000
Panel, wheel house inner lh
Norway, Sweden, Switzerland, New Zealand, Saudi Arabia |
61660-82211-000 |
— | ||
|
16
|
16
62100-82601-000
Member, rear floor side rh
|
62100-82601-000 |
— | ||
|
16
|
16
62100-82611-000
Member, rear floor side rh
, Finland, Norway, Sweden, Switzerland, Belgium,,5, 6, 7, Austria, Saudi Arabia,,Channel Islands, South Sea Islands, Israel, Iceland |
62100-82611-000 |
— | ||
|
17
|
17
62300-82260-000
Member, rear floor side lh
|
62300-82260-000 |
— | ||
|
17
|
17
62300-82250-000
Member, rear floor side lh
, Finland, Norway, Sweden, Switzerland, Belgium,,5, 6, 7, Austria, Saudi Arabia,,Channel Islands, South Sea Islands, Israel, Iceland |
62300-82250-000 |
— | ||
|
18
|
18
62610-82002-000
Crdssmember, rear floor front
<-62610-82001 |
62610-82002-000 |
— | ||
|
19
|
19
62641-82002-000
Crossmember, rear floor end
<-62641-82001 |
62641-82002-000 |
— | ||
| replacement | |||||
|
19
|
19
62641-82022-000
CROSSMEMBER,RR FL END
<-62641-82001 |
62641-82022-000 |
— | ||
|
19
|
19
62641-82022-000
CROSSMEMBER,RR FL END
, Finland, Norway, Sweden, Switzerland, Belgium,,5, 6, 7, Austria, Saudi Arabia,,Channel Islands, South Sea Islands, Israel, Iceland |
62641-82022-000 |
— | ||
|
20
|
20
62650-82001-000
Reinf, back door striker
<-62650-82000 |
62650-82001-000 |
— | ||
|
21
|
21
62661-82001-000
HOUSING,RR COMB LAMP INR,R
|
62661-82001-000 |
— | ||
|
22
|
22
62671-82001-000
HOUSING,RR COMB LAMP INR,L
|
62671-82001-000 |
— | ||
|
23
|
23
65510-82020-000
Panel, rear skirt
|
65510-82020-000 |
— | ||
|
23
|
23
65510-82010-000
Panel,rear skirt
Saudi Arabia, South Sea Islands |
65510-82010-000 |
— | ||
|
24
|
24
09250-30010-000
Grommet
|
09250-30010-000 |
— | ||
| replacement | |||||
|
24
|
24
72999-67H00-000 CAP,OD:40 |
72999-67H00-000 |
from US $4.32 |
||
|
25
|
25
83919-82000-000 PLUG,DOOR INNER REARCap, floor drain |
83919-82000-000 |
US $1.60 |
||
|
26
|
26
09250-12001-000 CAP(OD:20) |
09250-12001-000 |
US $16.20 |
||
|
27
|
27
09250-30011-000 CAP(OD:38.5) |
09250-30011-000 |
US $1.60 |
||
| replacement | |||||
|
27
|
27
72999-67H00-000 CAP,OD:40 |
72999-67H00-000 |
from US $4.32 |
||
|
28
|
28
61550-82000-000
Hook, towing rear
, Finland, Norway, Sweden, Switzerland, Belgium,,2, 5, 6, Austria, Channel Islands, Israel |
61550-82000-000 |
— | ||
|
29
|
29
61523-82001-000
Reinf, seat belt inside rh
, Finland, Norway, Sweden, Switzerland, Belgium,,2, 5, 6, Austria, Channel Islands, Israel |
61523-82001-000 |
— | ||
|
30
|
30
61524-82000-000
Reinf, rear seat belt,lh
, Finland, Norway, Sweden, Switzerland, Belgium,,2, 5, 6, Austria, Channel Islands, Israel |
61524-82000-000 |
— | ||
|
30
|
30
61524-82001-000
Reinf, seat belt inside lh
, Finland, Norway, Sweden, Switzerland, Belgium,,2, 5, 6, Austria, Channel Islands, Israel,AA51S-100326~,AA51V-101024~,AB51S-102467~,JSA0AA51S00103003~,JSA0AA51F00100001~ |
61524-82001-000 |
— | ||
