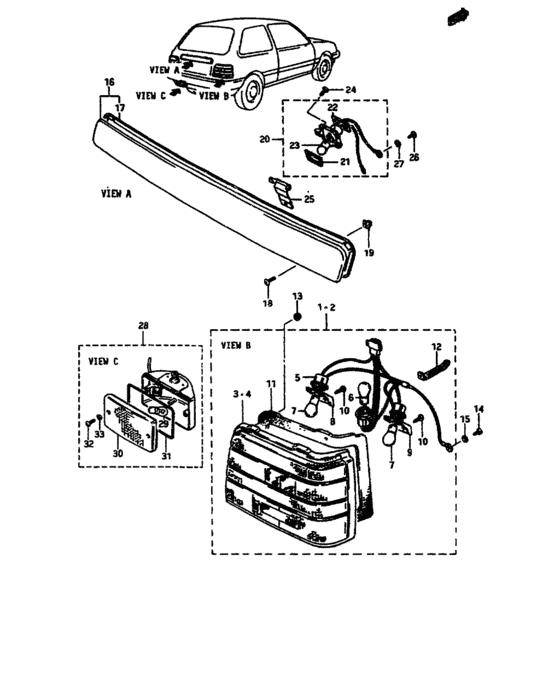

Rear lamp (REAR LAMP) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Africa
- transmission
- MT
- grade
- GS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35603-82002-000
Lamp assy, rear combination rh
<-35603-82001 |
35603-82002-000 |
— | ||
|
1
|
1
35603-82011-000
Lamp assy, rear combination rh
, Finland, Norway, Sweden, Switzerland, Belgium,,2, 5, 6, Austria, Channel Islands, Israel,<-35603-82010 |
35603-82011-000 |
— | ||
|
2
|
2
35604-82002-000
Lamp assy, rear combination lh
<-35604-82001 |
35604-82002-000 |
— | ||
|
2
|
2
35604-82011-000
Lamp assy, rear combination lh
, Finland, Norway, Sweden, Switzerland, Belgium,,2, 5, 6, Austria, Channel Islands, Israel,<-35604-82010 |
35604-82011-000 |
— | ||
|
3
|
3
35650-82002-000 UNIT,R<-35650-82001 |
35650-82002-000 |
US $110.40 |
||
|
3
|
3
35650-82011-000
UNIT,R
, Finland, Norway, Sweden, Switzerland, Belgium,,2, 5, 6, Austria, Channel Islands, Israel,<-35650-82010 |
35650-82011-000 |
— | ||
|
4
|
4
35670-82002-000 UNIT,L<-35670-82001 |
35670-82002-000 |
US $110.40 |
||
|
4
|
4
35670-82011-000
UNIT,L
, Finland, Norway, Sweden, Switzerland, Belgium,,2, 5, 6, Austria, Channel Islands, Israel,<-35670-82010 |
35670-82011-000 |
— | ||
|
5
|
5
35658-82000-000
Socket
|
35658-82000-000 |
— | ||
|
6
|
6
09471-12057-000
Bulb (12v, 21/5w)
|
09471-12057-000 |
— | ||
| replacements | |||||
|
6
|
6
09471-12128-000 BULB(12V21/5W,BF141-49642A) |
09471-12128-000 |
from US $7.20 |
||
|
6
|
6
09471-12083-000 BULB(12V21/5W) |
09471-12083-000 |
from US $5.60 |
||
|
6
|
6
09471-12046-000 BULB(12V21/5W), Finland, Norway, Sweden, Switzerland, Belgium,,2, 5, 6, Austria, Channel Islands, Israel |
09471-12046-000 |
from US $4.15 |
||
| replacement | |||||
|
6
|
6
09471-12128-000 BULB(12V21/5W,BF141-49642A), Finland, Norway, Sweden, Switzerland, Belgium,,2, 5, 6, Austria, Channel Islands, Israel |
09471-12128-000 |
from US $7.20 |
||
|
7
|
7
09471-12056-000
Bulb (12v, 21w)
|
09471-12056-000 |
— | ||
| replacement | |||||
|
7
|
7
09471-12045-000 BULB(12V21W) |
09471-12045-000 |
from US $4.41 |
||
|
7
|
7
09471-12045-000 BULB(12V21W), Finland, Norway, Sweden, Switzerland, Belgium,,2, 5, 6, Austria, Channel Islands, Israel |
09471-12045-000 |
from US $4.41 |
||
|
8
|
8
36255-82000-000 COVER |
36255-82000-000 |
US $3.46 |
||
|
9
|
9
35655-82000-000 COVER |
35655-82000-000 |
US $3.46 |
||
|
10
|
10
03211-04126-000
Screw
|
03211-04126-000 |
— | ||
| replacement | |||||
|
10
|
10
03211-0412A-000 SCREW |
03211-0412A-000 |
from US $3.04 |
||
|
11
|
11
35653-82011-000
GASKET,BASE
<-35653-82000 |
35653-82011-000 |
— | ||
|
12
|
12
09404-06404-000
Clamp, fuel hose
|
09404-06404-000 |
— | ||
| replacements | |||||
|
12
|
12
09404-06434-000
CLAMP(L:80 T:1.0)
|
09404-06434-000 |
— | ||
|
12
|
12
09404-06433-000
CLAMP(L:80)
|
09404-06433-000 |
— | ||
|
12
|
12
09404-06436-000 Clamp(L:80) |
09404-06436-000 |
US $2.13 |
||
|
12
|
12
09404-06036-000 Clamp(L:80) |
09404-06036-000 |
from US $1.82 |
||
|
13
|
13
08316-16056-000
Nut
|
08316-16056-000 |
— | ||
| replacement | |||||
|
13
|
13
08316-1005A-000 NUT |
08316-1005A-000 |
from US $0.80 |
||
|
14
|
14
03111-05126-000
New Genuine Part
|
03111-05126-000 |
— | ||
| replacement | |||||
|
14
|
14
03111-0512A-000 SCREW |
03111-0512A-000 |
from US $0.80 |
||
|
15
|
15
08322-21056-000
Washer
|
08322-21056-000 |
— | ||
| replacements | |||||
|
15
|
15
08322-0105B-000 WASHER |
08322-0105B-000 |
from US $0.76 |
||
|
15
|
15
08322-0105A-000 WASHERWasher, front |
08322-0105A-000 |
from US $0.80 |
||
|
16
|
16
35912-82000-09R
Cover, license lamp
BLUE METALLIC |
35912-82000-09R |
— | ||
| replacement | |||||
|
16
|
16
35912-82000-281
COVER,LICENSE LAMP
BLUE METALLIC |
35912-82000-281 |
— | ||
|
16
|
16
35912-82000-17A
Cover, license lamp
WHITE |
35912-82000-17A |
— | ||
| replacement | |||||
|
16
|
16
35912-82000-281
COVER,LICENSE LAMP
WHITE |
35912-82000-281 |
— | ||
|
16
|
16
35912-82000-18D
Cover, license lamp
BLUE |
35912-82000-18D |
— | ||
| replacement | |||||
|
16
|
16
35912-82000-281
COVER,LICENSE LAMP
BLUE |
35912-82000-281 |
— | ||
|
16
|
16
35912-82000-18J
Cover, license lamp
SILVER |
35912-82000-18J |
— | ||
| replacement | |||||
|
16
|
16
35912-82000-281
COVER,LICENSE LAMP
SILVER |
35912-82000-281 |
— | ||
|
16
|
16
35912-82000-19N
Cover, license lamp
RED |
35912-82000-19N |
— | ||
| replacement | |||||
|
16
|
16
35912-82000-281
COVER,LICENSE LAMP
RED |
35912-82000-281 |
— | ||
|
16
|
16
35912-82000-19P
Cover, license lamp
YELLOW |
35912-82000-19P |
— | ||
| replacement | |||||
|
16
|
16
35912-82000-281
COVER,LICENSE LAMP
YELLOW |
35912-82000-281 |
— | ||
|
16
|
16
35912-82000-19R
Cover, license lamp
BEIGE |
35912-82000-19R |
— | ||
| replacement | |||||
|
16
|
16
35912-82000-281
COVER,LICENSE LAMP
BEIGE |
35912-82000-281 |
— | ||
|
16
|
16
35912-82000-19S
Cover, license lamp
GREEN |
35912-82000-19S |
— | ||
| replacement | |||||
|
16
|
16
35912-82000-281
COVER,LICENSE LAMP
GREEN |
35912-82000-281 |
— | ||
|
16
|
16
35912-82000-22Y
Cover, license lamp
SPANISH RED |
35912-82000-22Y |
— | ||
| replacement | |||||
|
16
|
16
35912-82000-281
COVER,LICENSE LAMP
SPANISH RED |
35912-82000-281 |
— | ||
|
16
|
16
35912-82000-28I
Cover, license lamp
New Zealand, BLACK |
35912-82000-28I |
— | ||
|
17
|
17
35917-82000-000
PROTECTOR,LICENSE
|
35917-82000-000 |
— | ||
|
18
|
18
03142-05169-000
Tapping screw
|
03142-05169-000 |
— | ||
| replacement | |||||
|
18
|
18
03141-0516A-000 SCREW |
03141-0516A-000 |
from US $0.80 |
||
|
19
|
19
09148-05018-000 NUT |
09148-05018-000 |
US $0.91 |
||
|
20
|
20
35916-82000-000
Housing assy, license lamp
|
35916-82000-000 |
— | ||
|
20
|
20
35916-82020-000
Housing assy, license lamp
, Finland, Norway, Sweden, Switzerland, Belgium,,2, 5, 6, Austria, Channel Islands, Israel |
35916-82020-000 |
— | ||
|
21
|
21
35913-82000-000
Gasket, housing
|
35913-82000-000 |
— | ||
|
22
|
22
35933-82000-000
Gasket, housing
|
35933-82000-000 |
— | ||
|
23
|
23
09471-12095-000
バルブ,12V7.5W
|
09471-12095-000 |
— | ||
|
23
|
23
09471-12062-000
BULB(12V10W,TOKAI DENSO)
, Finland, Norway, Sweden, Switzerland, Belgium,,2, 5, 6, Austria, Channel Islands, Israel |
09471-12062-000 |
— | ||
|
24
|
24
03211-04126-000
Screw
|
03211-04126-000 |
— | ||
| replacement | |||||
|
24
|
24
03211-0412A-000 SCREW |
03211-0412A-000 |
from US $3.04 |
||
|
25
|
25
35914-82000-000
Reflector
|
35914-82000-000 |
— | ||
|
25
|
25
35914-82020-000
Reflector
, Finland, Norway, Sweden, Switzerland, Belgium,,2, 5, 6, Austria, Channel Islands, Israel |
35914-82020-000 |
— | ||
|
26
|
26
03111-05126-000
New Genuine Part
|
03111-05126-000 |
— | ||
| replacement | |||||
|
26
|
26
03111-0512A-000 SCREW |
03111-0512A-000 |
from US $0.80 |
||
|
27
|
27
08322-21056-000
Washer
|
08322-21056-000 |
— | ||
| replacements | |||||
|
27
|
27
08322-0105B-000 WASHER |
08322-0105B-000 |
from US $0.76 |
||
|
27
|
27
08322-0105A-000 WASHERWasher, front |
08322-0105A-000 |
from US $0.80 |
||
|
28
|
28
36570-79000-000
LAMP ASSY,RR FOG
, Norway, Switzerland, Belgium, 2, 5,,6, Austria, Channel Islands |
36570-79000-000 |
— | ||
|
29
|
29
09471-12064-000
Bulb (12v,23/8w)
, Norway, Switzerland, Belgium, 2, 5,,6, Austria, Channel Islands |
09471-12064-000 |
— | ||
| replacement | |||||
|
29
|
29
09471-12045-000 BULB(12V21W), Norway, Switzerland, Belgium, 2, 5,,6, Austria, Channel Islands |
09471-12045-000 |
from US $4.41 |
||
|
30
|
30
36572-79000-000
LENS
, Norway, Switzerland, Belgium, 2, 5,,6, Austria, Channel Islands |
36572-79000-000 |
— | ||
|
31
|
31
36573-79000-000 GASKET, Norway, Switzerland, Belgium, 2, 5,,6, Austria, Channel Islands |
36573-79000-000 |
US $2.17 |
||
|
32
|
32
03212-04169-000 SCREWScrew , Norway, Switzerland, Belgium, 2, 5,,6, Austria, Channel Islands |
03212-04169-000 |
from US $2.13 |
||
|
33
|
33
35129-04030-000 WASHER, Norway, Switzerland, Belgium, 2, 5,,6, Austria, Channel Islands |
35129-04030-000 |
US $1.18 |
||
