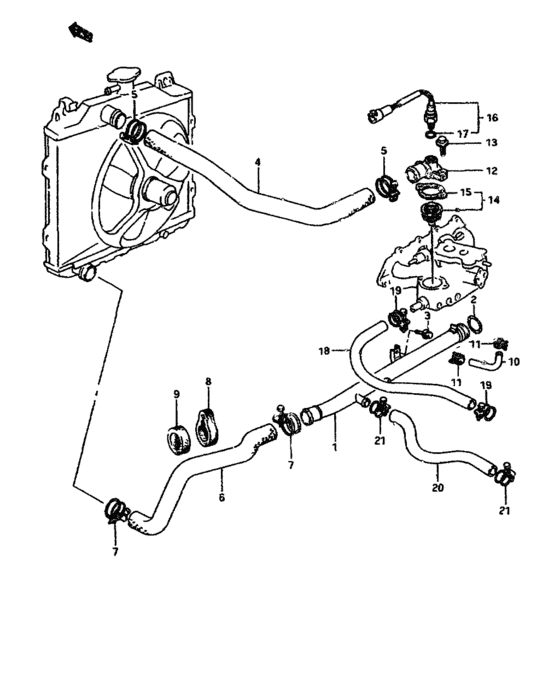

Water hose (WATER HOSE) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Africa
- transmission
- MT
- grade
- GS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17840-82612-000
Pipe, water intake
MT:W/HEATER |
17840-82612-000 |
— | ||
| replacement | |||||
|
1
|
1
17840-82XV2-000
Pipe,water intake
MT:W/HEATER |
17840-82XV2-000 |
— | ||
|
1
|
1
17840-82621-000
Pipe, water intake
MT:N/HEATER |
17840-82621-000 |
— | ||
| replacement | |||||
|
1
|
1
17840-82XV2-000
Pipe,water intake
MT:N/HEATER |
17840-82XV2-000 |
— | ||
|
2
|
2
09280-28006-000
Anneau torique
|
09280-28006-000 |
— | ||
| replacement | |||||
|
2
|
2
09280-28008-000 O RING(D:3.5,ID:27.7) |
09280-28008-000 |
from US $0.63 |
||
|
3
|
3
01517-06103-000
ボルト
|
01517-06103-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
3
|
3
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
4
|
4
17852-82601-000
HOSE,RADIATOR INLET
|
17852-82601-000 |
— | ||
|
5
|
5
09400-36312-000 CLAMP |
09400-36312-000 |
from US $1.53 |
||
|
6
|
6
17854-82602-000
Hose,radiator outlet
MT |
17854-82602-000 |
— | ||
|
7
|
7
09400-36312-000 CLAMP |
09400-36312-000 |
from US $1.53 |
||
|
8
|
8
17859-88600-000
Cushion, radiator hose
MT |
17859-88600-000 |
— | ||
|
10
|
10
17856-82001-000
Hose, water bypass
N/HEATER |
17856-82001-000 |
— | ||
| replacement | |||||
|
10
|
10
17856-82002-000 HOSE,WATER BYPASSN/HEATER |
17856-82002-000 |
US $4.64 |
||
|
11
|
11
09401-12404-000 CLIPClip N/HEATER |
09401-12404-000 |
from US $1.52 |
||
|
12
|
12
17561-82000-000
CAP,WATER THERMOSTAT
|
17561-82000-000 |
— | ||
|
13
|
13
01517-08253-000
ボルト
|
01517-08253-000 |
— | ||
| replacements | |||||
|
13
|
13
01550-0825A-000 BOLT |
01550-0825A-000 |
from US $1.06 |
||
|
13
|
13
01550-0825B-000 BOLT |
01550-0825B-000 |
from US $0.96 |
||
|
14
|
14
17600-82810-000
サーモスタット,ウォータ,82゜C
|
17600-82810-000 |
— | ||
| replacement | |||||
|
14
|
14
17600-85811-000 THERMOSTAT SET,WATER 82 DEG |
17600-85811-000 |
from US $18.88 |
||
|
14
|
14
17600-82830-000
サーモスタット,ウォータ,88゜C
Finland, Norway, Sweden, Denmark |
17600-82830-000 |
— | ||
| replacement | |||||
|
14
|
14
17600-85821-000 THERMOSTAT SET,WATER 88 DEGFinland, Norway, Sweden, Denmark |
17600-85821-000 |
from US $20.03 |
||
|
15
|
15
17569-82001-000
ガスケット,サーモキャップ
|
17569-82001-000 |
— | ||
| replacement | |||||
|
15
|
15
17569-82001-H17 GASKET,WTR THERMO CAP |
17569-82001-H17 |
US $2.24 |
||
|
16
|
16
17680-82001-000
SWITCH,FAN THERMO
|
17680-82001-000 |
— | ||
|
16
|
16
17680-82011-000
Switch, fan thermo
Finland, Norway, Sweden, Denmark |
17680-82011-000 |
— | ||
| replacement | |||||
|
16
|
16
17680-86011-000 SWITCH,FAN THERMOFinland, Norway, Sweden, Denmark |
17680-86011-000 |
US $50.42 |
||
|
17
|
17
09280-14004-000 O RING(D:1.9,ID:13.8)O ring, gear shifting cam |
09280-14004-000 |
from US $1.76 |
||
|
18
|
18
17871-82601-000 HOSE,HEATER INLETW/HEATER |
17871-82601-000 |
US $11.92 |
||
|
19
|
19
09400-22312-000 CLAMPW/HEATER |
09400-22312-000 |
from US $1.82 |
||
|
20
|
20
17872-82600-000
Hose, heater outlet
W/HEATER |
17872-82600-000 |
— | ||
| replacements | |||||
|
20
|
20
09401-18404-000 CLIPW/HEATER |
09401-18404-000 |
from US $1.33 |
||
|
20
|
20
17871-64BV0-000 HOSE ASSY,HEATERW/HEATER |
17871-64BV0-000 |
US $24 |
||
|
21
|
21
09400-22312-000 CLAMPW/HEATER |
09400-22312-000 |
from US $1.82 |
||
