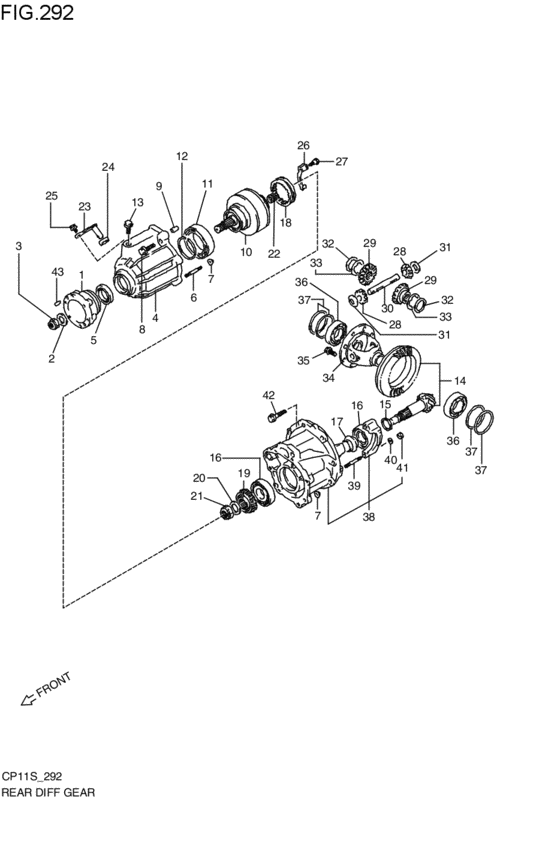

リヤデファレンシャルギヤ (4WD; 1988-09-01~1989-02-01) Diagram Suzuki FRONTE
- Year
- 1988 - 1989
- Sales region
- Japan
- Engine
- 4V
- supercharge
- CARB
- drive
- 4WD
- transmission
- MT
- Number of doors
- 5DR
- grade
- FI
- number of the gears
- 5MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29290-74B13-000
フランジ,リヤディファレンシャル,アウトプツト
4WD; 1988-09-01~1989-02-01 |
29290-74B13-000 |
— | ||
|
2
|
2
09160-16006-000 WASHER(16.5X30X2.6)4WD; 1988-09-01~1989-02-01 |
09160-16006-000 |
US $23.20 |
||
|
3
|
3
09159-16003-000 NUTNut, rear drive output yoke 4WD; 1988-09-01~1989-02-01 |
09159-16003-000 |
from US $1.67 |
||
|
4
|
4
27460-75B10-000
ケース,ビスカスカップリング
4WD; 1988-09-01~1989-02-01 |
27460-75B10-000 |
— | ||
|
5
|
5
09283-28015-000
オイルシール
4WD; 1988-09-01~1989-02-01 |
09283-28015-000 |
— | ||
| replacement | |||||
|
5
|
5
09283-28022-000 SEAL,OIL(28X47X7)4WD; 1988-09-01~1989-02-01 |
09283-28022-000 |
US $13.60 |
||
|
6
|
6
01421-08303-000
Stud m 8x1.25 x
4WD; 1988-09-01~1989-02-01 |
01421-08303-000 |
— | ||
| replacement | |||||
|
6
|
6
01421-0830A-000 BOLT,STUD4WD; 1988-09-01~1989-02-01 |
01421-0830A-000 |
from US $1.44 |
||
|
7
|
7
08316-16083-000 NutNut 4WD; 1988-09-01~1989-02-01 |
08316-16083-000 |
US $3.06 |
||
| replacement | |||||
|
7
|
7
08316-1008B-000 NUT4WD; 1988-09-01~1989-02-01 |
08316-1008B-000 |
from US $0.76 |
||
|
8
|
8
01517-08303-000
ボルト
4WD; 1988-09-01~1989-02-01 |
01517-08303-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0830A-000 BOLTBolt, mount oil seal cover 4WD; 1988-09-01~1989-02-01 |
01550-0830A-000 |
from US $1.12 |
||
|
8
|
8
01550-0830B-000 Bolt4WD; 1988-09-01~1989-02-01 |
01550-0830B-000 |
from US $1.06 |
||
|
9
|
9
04211-09169-000 PIN4WD; 1988-09-01~1989-02-01 |
04211-09169-000 |
from US $0.91 |
||
|
10
|
10
27470-74B10-000
カップリングアッシ,ビスカス
4WD; 1988-09-01~1989-02-01 |
27470-74B10-000 |
— | ||
|
11
|
11
09262-60001-000
ベアリング,60X85X13
4WD; 1988-09-01~1989-02-01 |
09262-60001-000 |
— | ||
|
12
|
12
08331-31609-000
サークリップ
4WD; 1988-09-01~1989-02-01 |
08331-31609-000 |
— | ||
| replacement | |||||
|
12
|
12
08331-31606-000
CIRCLIP
4WD; 1988-09-01~1989-02-01 |
08331-31606-000 |
— | ||
|
13
|
13
27481-75B01-000
ボルト,ベアリングアウタ
4WD; 1988-09-01~1989-02-01 |
27481-75B01-000 |
— | ||
|
14
|
14
27300-74811-000
ベベルギヤセット
4WD; 1988-09-01~1989-02-01 |
27300-74811-000 |
— | ||
|
15
|
15
09181-25031-000 SHIM(25.5X31.5X0.3)4WD; 1988-09-01~1989-02-01 |
09181-25031-000 |
US $16.20 |
||
|
15
|
15
09181-25040-000
シム,25X31X1.00
4WD; 1988-09-01~1989-02-01 |
09181-25040-000 |
— | ||
| replacement | |||||
|
15
|
15
09181-25139-000 SHIM(25X32X1)Washer, shift cam spring 4WD; 1988-09-01~1989-02-01 |
09181-25139-000 |
from US $4.10 |
||
|
15
|
15
09181-25041-000
シム,25X31X1.03
4WD; 1988-09-01~1989-02-01 |
09181-25041-000 |
— | ||
|
15
|
15
09181-25042-000
シム,25X31X1.06
4WD; 1988-09-01~1989-02-01 |
09181-25042-000 |
— | ||
| replacement | |||||
|
15
|
15
09181-25142-000 SHIM(25X32X1.06)4WD; 1988-09-01~1989-02-01 |
09181-25142-000 |
US $16.20 |
||
|
15
|
15
09181-25043-000
シム,25X31X1.09
4WD; 1988-09-01~1989-02-01 |
09181-25043-000 |
— | ||
|
15
|
15
09181-25044-000
シム,25X31X1.12
4WD; 1988-09-01~1989-02-01 |
09181-25044-000 |
— | ||
| replacement | |||||
|
15
|
15
09181-25145-000 SHIM(25X32X1.12)4WD; 1988-09-01~1989-02-01 |
09181-25145-000 |
US $1.60 |
||
|
15
|
15
09181-25045-000
シム,25X31X1.15
4WD; 1988-09-01~1989-02-01 |
09181-25045-000 |
— | ||
|
15
|
15
09181-25046-000
シム,25X31X1.18
4WD; 1988-09-01~1989-02-01 |
09181-25046-000 |
— | ||
| replacement | |||||
|
15
|
15
09181-25147-000 SHIM(25X32X1.18)4WD; 1988-09-01~1989-02-01 |
09181-25147-000 |
US $16.20 |
||
|
15
|
15
09181-25047-000
シム,25X31X1.21
4WD; 1988-09-01~1989-02-01 |
09181-25047-000 |
— | ||
|
15
|
15
09181-25048-000
シム,25X31X1.24
4WD; 1988-09-01~1989-02-01 |
09181-25048-000 |
— | ||
| replacement | |||||
|
15
|
15
09181-25150-000 SHIM(25X32X1.24)4WD; 1988-09-01~1989-02-01 |
09181-25150-000 |
US $16.20 |
||
|
15
|
15
09181-25049-000
シム,25X31X1.27
4WD; 1988-09-01~1989-02-01 |
09181-25049-000 |
— | ||
|
15
|
15
09181-25050-000
シム,25X31X1.30
4WD; 1988-09-01~1989-02-01 |
09181-25050-000 |
— | ||
| replacement | |||||
|
15
|
15
09181-25153-000 SHIM(25X32X1.3)4WD; 1988-09-01~1989-02-01 |
09181-25153-000 |
US $16.20 |
||
|
16
|
16
09265-25027-000
New Genuine Part
4WD; 1988-09-01~1989-02-01 |
09265-25027-000 |
— | ||
| replacement | |||||
|
16
|
16
09265-25039-000 BEARING(25X62X18.25)4WD; 1988-09-01~1989-02-01 |
09265-25039-000 |
US $27.20 |
||
|
17
|
17
27315-74B10-000
スペーサ,リヤドライブベベルピニオン
4WD; 1988-09-01~1989-02-01 |
27315-74B10-000 |
— | ||
| replacement | |||||
|
17
|
17
27315-74B11-000 SPACER,DRIVE BEVEL PINION4WD; 1988-09-01~1989-02-01 |
27315-74B11-000 |
US $23.20 |
||
|
18
|
18
29241-75B03-000
スリーブ,トランスファクラッチ
4WD; 1988-09-01~1989-02-01 |
29241-75B03-000 |
— | ||
|
19
|
19
29242-75B00-000
DOG,T/F CLUTCH
4WD; 1988-09-01~1989-02-01 |
29242-75B00-000 |
— | ||
|
20
|
20
08211-20345-000 WASHER4WD; 1988-09-01~1989-02-01 |
08211-20345-000 |
from US $1.42 |
||
|
21
|
21
09159-20007-000
ナット
4WD; 1988-09-01~1989-02-01 |
09159-20007-000 |
— | ||
| replacement | |||||
|
21
|
21
09159-20009-000 NUT4WD; 1988-09-01~1989-02-01 |
09159-20009-000 |
US $5.92 |
||
|
22
|
22
09263-14010-000 BEARING(14X22X16)Bearing, pinion 4WD; 1988-09-01~1989-02-01 |
09263-14010-000 |
from US $10.08 |
||
|
23
|
23
29330-75B00-000
シャフト,トランスファロックコントロール
4WD; 1988-09-01~1989-02-01 |
29330-75B00-000 |
— | ||
|
24
|
24
09283-14006-000 SEAL,OIL(14X22X6)4WD; 1988-09-01~1989-02-01 |
09283-14006-000 |
from US $3.74 |
||
|
25
|
25
01517-08123-000
ボルト
4WD; 1988-09-01~1989-02-01 |
01517-08123-000 |
— | ||
| replacements | |||||
|
25
|
25
01550-0812B-000 BoltPlug, drain 4WD; 1988-09-01~1989-02-01 |
01550-0812B-000 |
from US $0.96 |
||
|
25
|
25
01550-0812A-000 BOLT4WD; 1988-09-01~1989-02-01 |
01550-0812A-000 |
from US $0.91 |
||
|
26
|
26
29320-75B00-000
アーム,トランスファロック
4WD; 1988-09-01~1989-02-01 |
29320-75B00-000 |
— | ||
|
27
|
27
29335-75B00-000
ボルト,トランスファロックコントロールアーム
4WD; 1988-09-01~1989-02-01 |
29335-75B00-000 |
— | ||
|
28
|
28
27331-82000-000
ピニオン,ディファレンシャル
4WD; 1988-09-01~1989-02-01 |
27331-82000-000 |
— | ||
| replacement | |||||
|
28
|
28
27331-78FJ1-000 PINION,DIFFERENTIAL4WD; 1988-09-01~1989-02-01 |
27331-78FJ1-000 |
from US $26.60 |
||
|
29
|
29
27341-74B10-000
Gear,rear diff side
4WD; 1988-09-01~1989-02-01 |
27341-74B10-000 |
— | ||
|
30
|
30
27351-52A81-000
シャフト,ディファレンシャルピニオン
4WD; 1988-09-01~1989-02-01 |
27351-52A81-000 |
— | ||
|
31
|
31
09164-15003-000 WASHER4WD; 1988-09-01~1989-02-01 |
09164-15003-000 |
from US $0.95 |
||
|
32
|
32
09160-29016-000
WASHER(29X41.5X1.3)
4WD; 1988-09-01~1989-02-01 |
09160-29016-000 |
— | ||
|
33
|
33
09164-29002-000
ワッシャ,29X41X0.4
NHK; 4WD; 1988-09-01~1989-02-01 |
09164-29002-000 |
— | ||
| replacement | |||||
|
33
|
33
09164-29003-000 WASHERNHK; 4WD; 1988-09-01~1989-02-01 |
09164-29003-000 |
from US $9.40 |
||
|
34
|
34
27411-74B11-000
ケース,リヤディファレンシャル
4WD; 1988-09-01~1989-02-01 |
27411-74B11-000 |
— | ||
| replacements | |||||
|
34
|
34
09205-05003-000 PIN,SPRING(5X45)4WD; 1988-09-01~1989-02-01 |
09205-05003-000 |
US $1.76 |
||
|
34
|
34
27351-62B00-000 SHAFT,DIFF SIDE PINION4WD; 1988-09-01~1989-02-01 |
27351-62B00-000 |
from US $13.97 |
||
|
35
|
35
09103-10215-000
Bolt (10x16)
4WD; 1988-09-01~1989-02-01 |
09103-10215-000 |
— | ||
| replacement | |||||
|
35
|
35
09103-10309-000 BOLT(10X16)4WD; 1988-09-01~1989-02-01 |
09103-10309-000 |
US $1.67 |
||
|
36
|
36
08110-62070-000 BEARING4WD; 1988-09-01~1989-02-01 |
08110-62070-000 |
US $21.60 |
||
|
37
|
37
09181-62003-000 SHIM(62X71X0.1)4WD; 1988-09-01~1989-02-01 |
09181-62003-000 |
from US $0.97 |
||
|
37
|
37
09181-62004-000 SHIM(62X71X0.3)4WD; 1988-09-01~1989-02-01 |
09181-62004-000 |
from US $1.04 |
||
|
37
|
37
09181-62005-000 SHIM(62X71X0.5)4WD; 1988-09-01~1989-02-01 |
09181-62005-000 |
US $11.80 |
||
|
37
|
37
09181-62007-000 SHIM(62X71X0.7)4WD; 1988-09-01~1989-02-01 |
09181-62007-000 |
US $11.80 |
||
|
38
|
38
27450-75B10-000
キャリアアッシ,リヤディファレンシャル
4WD; 1988-09-01~1989-02-01 |
27450-75B10-000 |
— | ||
|
39
|
39
09108-08021-000 BOLT,STUD4WD; 1988-09-01~1989-02-01 |
09108-08021-000 |
US $26.50 |
||
|
40
|
40
08321-31086-000
Lock washer
4WD; 1988-09-01~1989-02-01 |
08321-31086-000 |
— | ||
| replacements | |||||
|
40
|
40
08321-0108B-000 WASHER,LOCK4WD; 1988-09-01~1989-02-01 |
08321-0108B-000 |
from US $0.76 |
||
|
40
|
40
08321-0108A-000 WASHER,LOCK4WD; 1988-09-01~1989-02-01 |
08321-0108A-000 |
from US $0.80 |
||
|
41
|
41
08310-11083-000
ナット
4WD; 1988-09-01~1989-02-01 |
08310-11083-000 |
— | ||
| replacements | |||||
|
41
|
41
08310-0008A-000 NUTNut, bead stopper 4WD; 1988-09-01~1989-02-01 |
08310-0008A-000 |
from US $0.76 |
||
|
41
|
41
08310-0008B-000 NUT4WD; 1988-09-01~1989-02-01 |
08310-0008B-000 |
from US $0.80 |
||
|
42
|
42
01147-08253-000
ボルト
4WD; 1988-09-01~1989-02-01 |
01147-08253-000 |
— | ||
| replacements | |||||
|
42
|
42
01570-0825A-000 BOLT4WD; 1988-09-01~1989-02-01 |
01570-0825A-000 |
from US $1.06 |
||
|
42
|
42
01570-0825B-000 BOLT4WD; 1988-09-01~1989-02-01 |
01570-0825B-000 |
US $1.12 |
||
|
43
|
43
09202-08008-000
ピン,8X22.5
4WD; 1988-09-01~1989-02-01 |
09202-08008-000 |
— | ||
| replacement | |||||
|
43
|
43
09261-08006-000 PIN(8X22.5)4WD; 1988-09-01~1989-02-01 |
09261-08006-000 |
US $16.20 |
||
